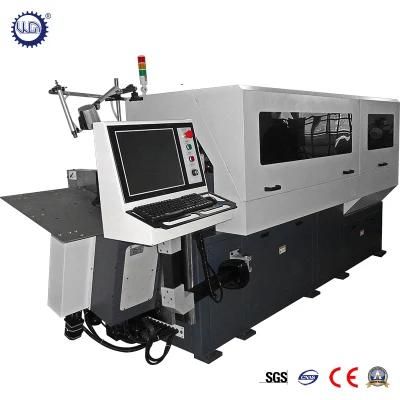

10 Axes Automatic 3D CNC Wire Bending Machine Manufacturer From China
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Warranty：1 Year, 18 Months
- Condition：New
- Certification：CE
- Automation：Automatic
- Axis：10
- Raw Material：Steel Bar
Base Info
- Power：CNC
- Wire Size：2.0-6.0mm
- Extra Services：Cut to Length
- Material：Mild Steel
- Color：Grey,Black
- Usage：Square Bar
- Name：10 Axes Automatic 3D CNC Wire Bending Machine
- Machine Type：Bending Machine
- Application：Stainless Steel Strip Bending
- Material / Metal Processed：Stainless Steel
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Transport Package：Standard Export Case
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Power CNC Wire Size 2.0-6.0mm Extra Services Cut to Length Material Mild Steel Color Grey/Black Usage Square Bar Name 10 Axes Automatic 3D CNC Wire Bending Machine Machine Type Bending Machine Application Stainless Steel Strip Bending Material / Metal Processed Stainless Steel After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Standard Export Case Trademark WG Origin Guangdong, China (Mainland)Product Description
Product Description10 Axes Automatic 3D Cnc Wire Bending Machine
CNC 3D wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
Advantages & Main Features
1)3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotation is more fast and stable.
2)Twist head is designed in copper tube transport, more stable and stronger than bearing transfer
3) Adopting advanced world famous brand components in CNC parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollution
Technical Data:
| Model | GT-WB-60-5A | GT-WB-60-10A | GT-WB-80-9A | GT-WB-100-9A | GT-WB-120-7A |
| Wire Size(mm): | 2.0-6.0 | 2.0-6.0 | 3.0-8.0 | 5.0-10.0 | 5.0-12.0 |
| Axis: | 5 | 10 | 9 | 9 | 7 |
| Feeding Roller Number: | 3 pairs | 3 pairs | 3 pairs | 4 pairs | 4 pairs |
| Wire Turning Angle: | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Platform lifting height: | 50-170mm | 50-170mm | 25-120mm | 25-120mm | 25-120mm |
| Twisting head lifting height: | 20-100mm | 20-100mm | 20-80mm | 20-80mm | 20-80mm |
| Distance between cutting and bending head | / | / | / | 305mm | 305mm |
| Distance between bending head and machine body | / | / | / | 800mm | 800mm |
| Out twisting lifting height | / | 20-55mm | / | / | / |
| Left to right moving range | / | left:80mmright:40mm | left:100mm right:60mm | / | / |
| Feeding front and back moving range | / | front:300mm back:100mm | front:300mm back:100mm | / | / |
| Machine size(cm) | 180*120*120 | 300*120*140 | 350*120*150 | 380*140*170 | 450*180*170 |
| Machie weight(kg) | 3000.0 | 3200.0 | 3400.0 | 4800.0 | 8600.0 |

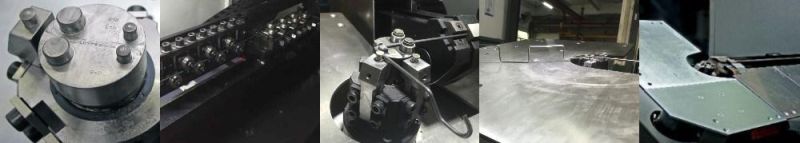

Detailed Images
Certifications
ServicePre-Sales Service* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
