• Model NO.：YX27-205-820,1025 roof profile
• Type：Roller-Bending Machine
• Transport Package：40gp*1
• Specification：11T
• Trademark：Xiamen Liming
• Origin：Fujian, China(Mainland)
• Production Capacity：50set,Month

Basic Info.

Model NO. YX27-205-820/1025 roof profile Type Roller-Bending Machine Transport Package 40gp*1 Specification 11T Trademark Xiamen Liming Origin Fujian, China(Mainland) Production Capacity 50set/Month

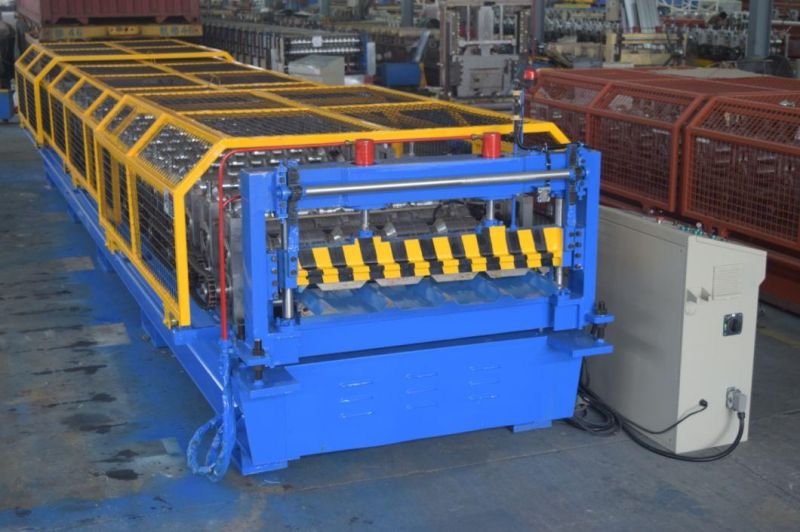

Product Description

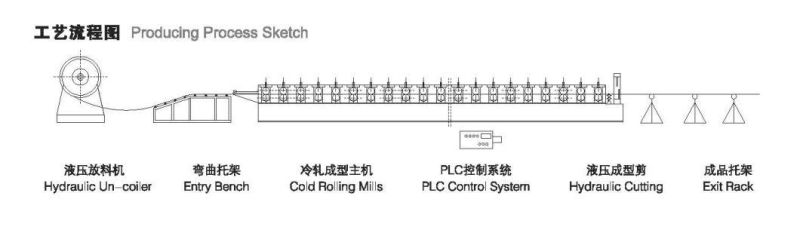

This Producing Process Sketch As Below Picture:

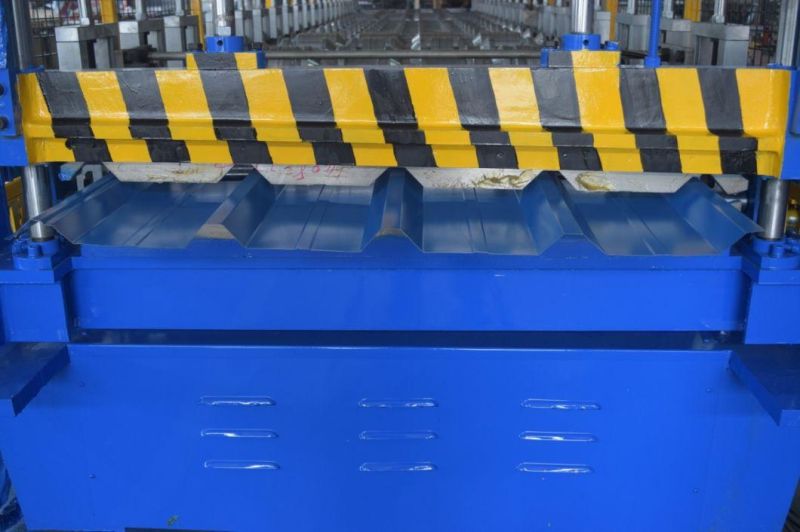

  This Profile Drawing As Below Picture:

 General Parameter

1	Item	Parameters
2	Size	YX27-205-820/1025
3	Material	Pre-painted galvanized sheet
4	Thickness	0.35-0.7 mm
5	Yield Strength	350-550 MPa
6	Feed Width	1000/1250mm
7	Effective width	820/1025 mm
8	Max. Line Speed Of Roll Former	Approx.20 m/min
9	Roll Stages	20 Stages
10	Material Of Forming Roller	45# steel, CNC lathes, Hard Chrome Coated
11	Main Motor Power	11 KW
12	Electric Standard	According to local voltage

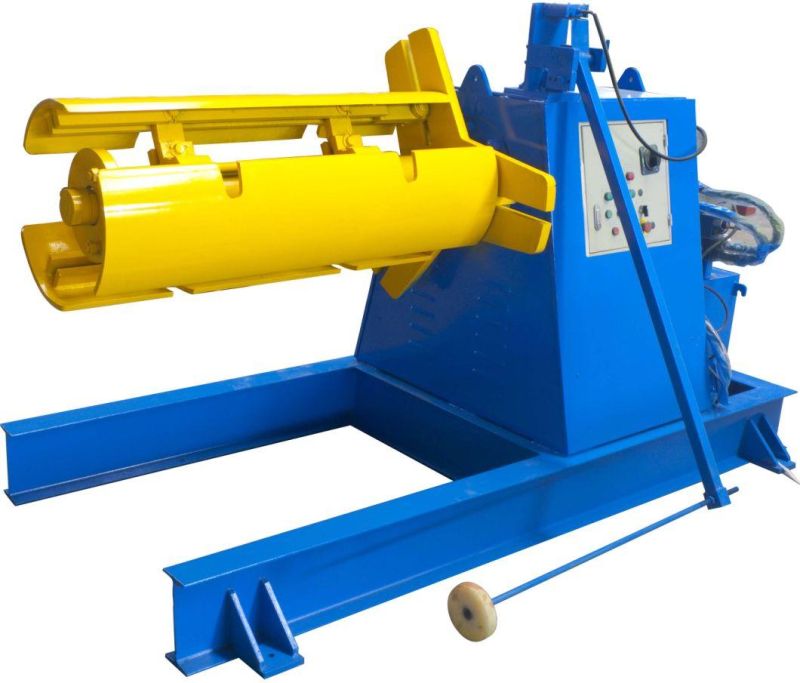

Machine Components5 Ton X 1250 Hydraulic Un-coiler
Hydraulic system expand coil inner hole, Pump motor: 3KW
Frequency Inverter to regulate turning speed, Motor: 3KW
Link-connect expanding system
Load capacity = Max.5Tons
Coil Inner-diameter= 510±30 mm, Coil width = Max.1250mm
Automatic stopping device with limited switch as assistance to control stop/start rotation




Entry bench and Manual pre-shearing device
Entry bench and manual pre-shearing device
Working thickness: up to 0.8mm
Smart cut control, to cut off the end of the final piece of sheet only




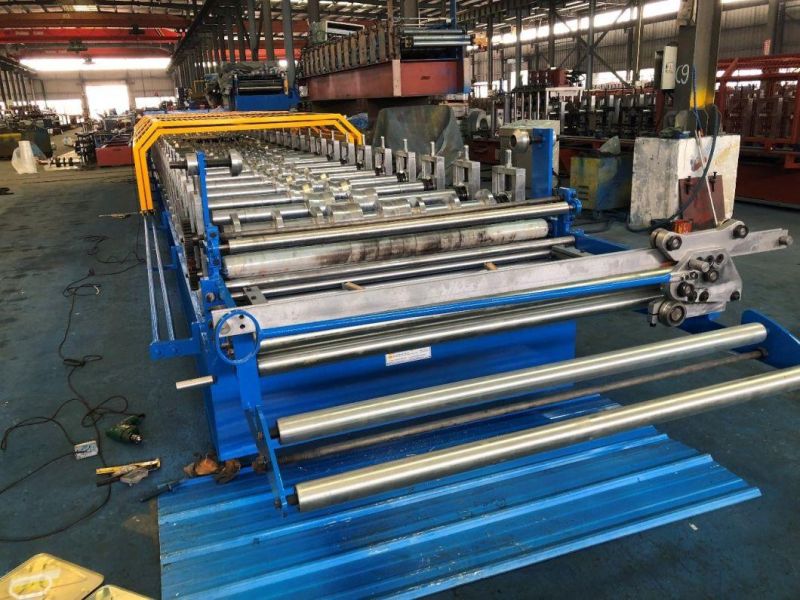

Cold Rolling Mills
Feeding section with guide
Gear/Sprocket driving; 20-step to form
New stand frame design

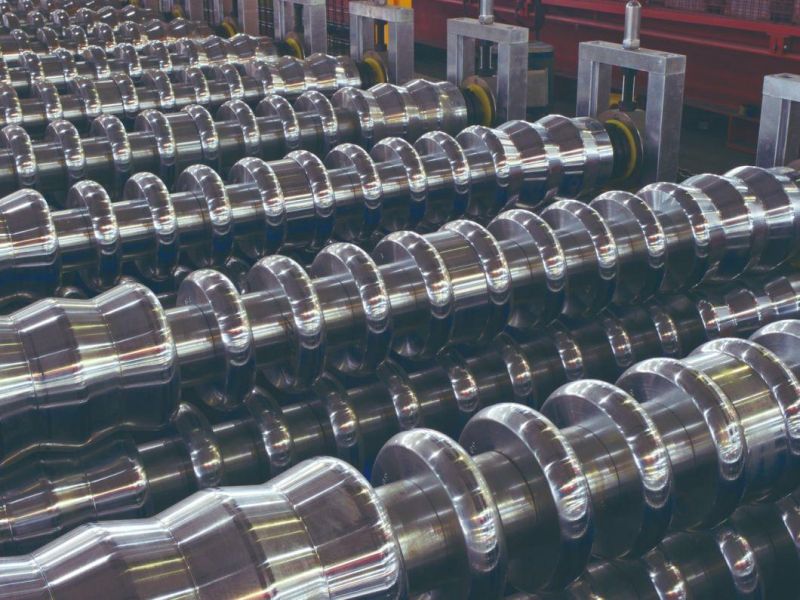

Rollers manufactured from 45#, CNC lathes, hard Chrome Coated
Shafts Diameter=ф75/95mm, Precision Machined
Main motor =11 KW, Frequency speed control
Max Line speed of roll Former: Approx. 20m/min
Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands Go Inside


Hydraulic Cutting Device
Stop to cut, Post cut, No Blanking cut
Cutting tool material : Cr12, Heat treatment;
Pump motor =5.5KW

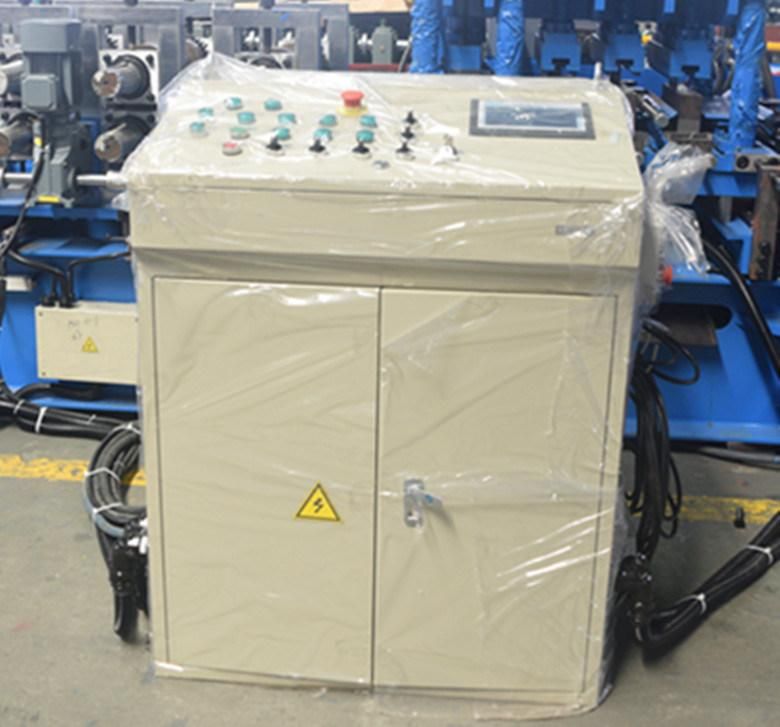

PLC Control System
Control the quantity & cutting length automatically;
Combined with: PLC, Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V




After-Sale Service In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
