• Model NO.：Yx25-204-1020 Roof Profile
• Type：Roller-Bending Machine
• Transport Package：40gp*1
• Specification：11T
• Trademark：Xiamen Liming
• Origin：Fujian, China(Mainland)
• Production Capacity：50set,Month

Basic Info.

Model NO. Yx25-204-1020 Roof Profile Type Roller-Bending Machine Transport Package 40gp*1 Specification 11T Trademark Xiamen Liming Origin Fujian, China(Mainland) Production Capacity 50set/Month

Product Description

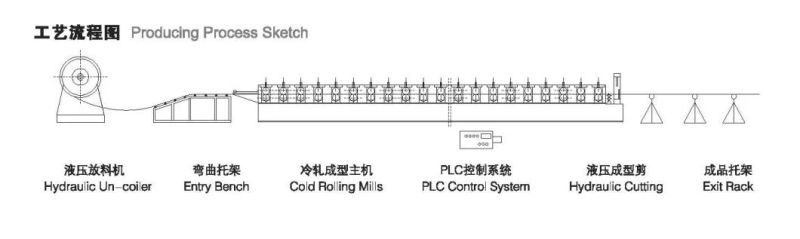

This Producing Process Sketch As Below Picture:

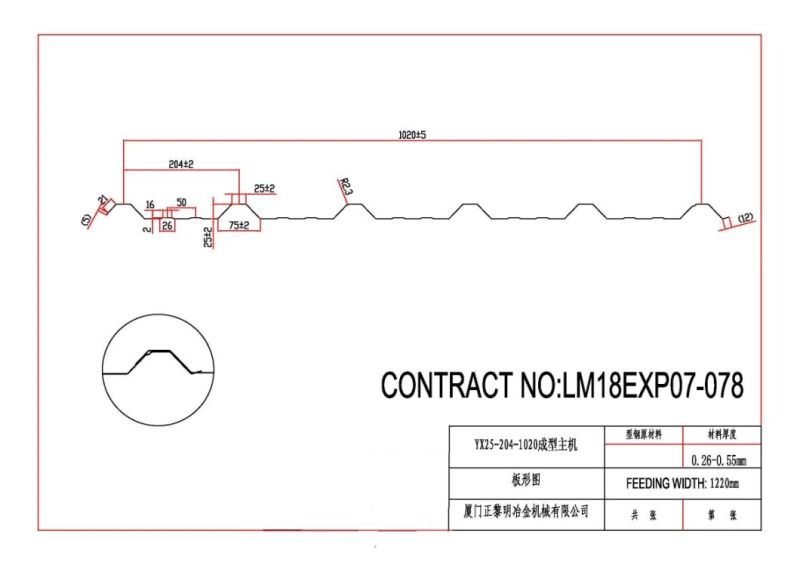

This Profile Drawing As Below Picture:General Parameter

1	Item	Parameters
2	Size	YX25-204-1020
3	Material	Pre-painted galvanized sheet
4	Thickness	0.26-0.55mm
5	Yield Strength	550 MPa
6	Feed Width	1220 mm
7	Effective width	1000 mm
8	Max. Line Speed Of Roll Former	Approx.20 m/min
9	Roll Stages	20 Stages
10	Material Of Forming Roller	45# steel, CNC lathes, Hard Chrome Coated
11	Main Motor Power	11 KW
12	Electric Standard	According to local voltage


Machine Components

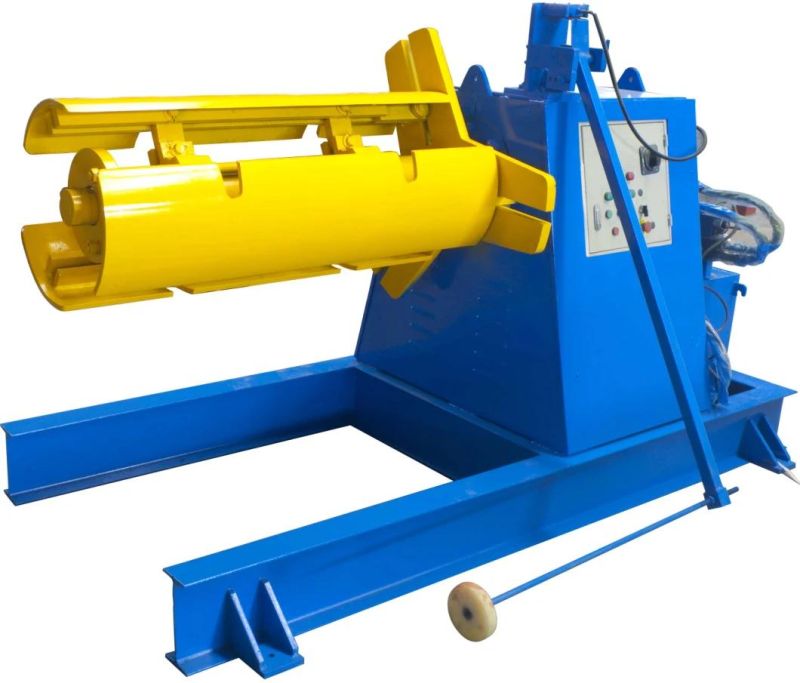

 A. 5 Ton X 1250 Hydraulic Un-coiler
     Hydraulic system expand coil inner hole, Pump motor: 3KW
     Frequency Inverter to regulate turning speed, Motor: 3KW
     Link-connect expanding system
     Load capacity = Max.5Tons
     Coil Inner-diameter= 510±30mm, Coil width = Max.1250mm
     Automatic stopping device with limited switch as assistance to control stop/star rotation






B.  Entry roller & Manual Pre-shearing device           Un-powered
     Smart cut control, to cut off the end of the final piece of sheet only
     Working thickness up to 0.8mm




C. Polythene Film-on Device
     Un-powered film-on device to cover plastic film on the surface of sheet

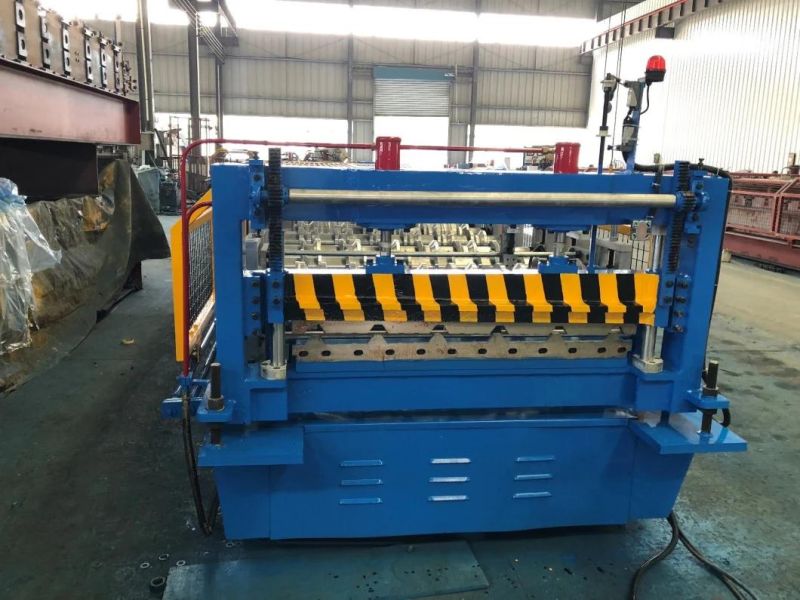

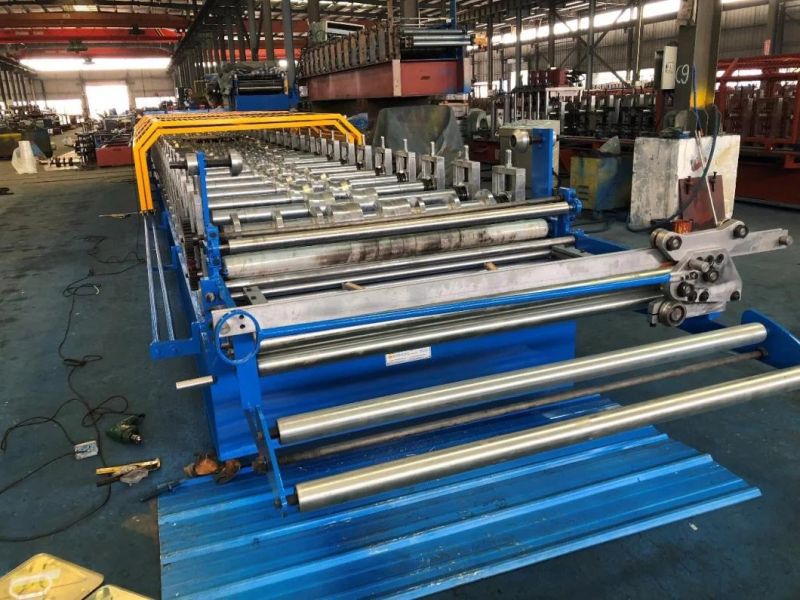

D. Cold Rolling Mills      Feeding section with guide
     Gear/Sprocket driving; 20-step to form;
     New stand frame design

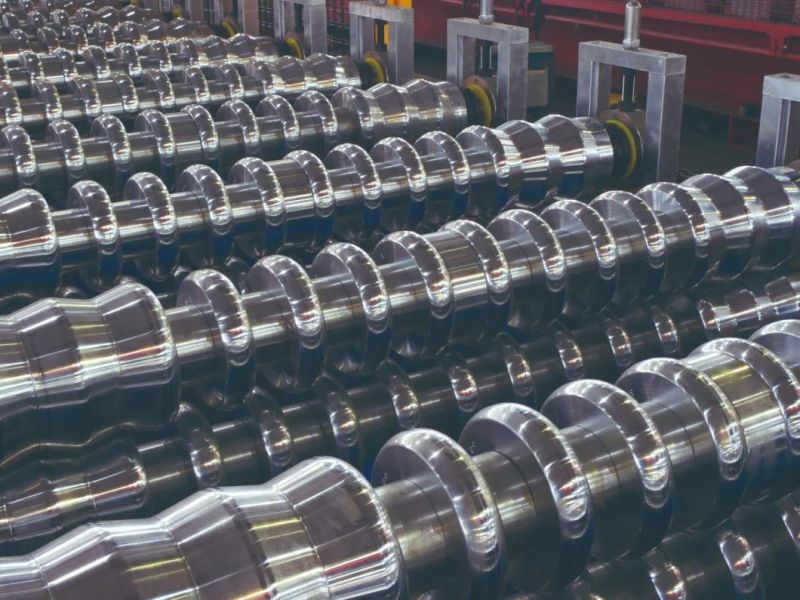

Rollers manufactured from 45#, CNC lathes, hard Chrome Coated
Shafts Diameter=ф75/95mm, Precision Machined
Main motor =11 KW, Frequency speed control
Max Line speed of roll Former: Approx. 20m/min
Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands Go Inside



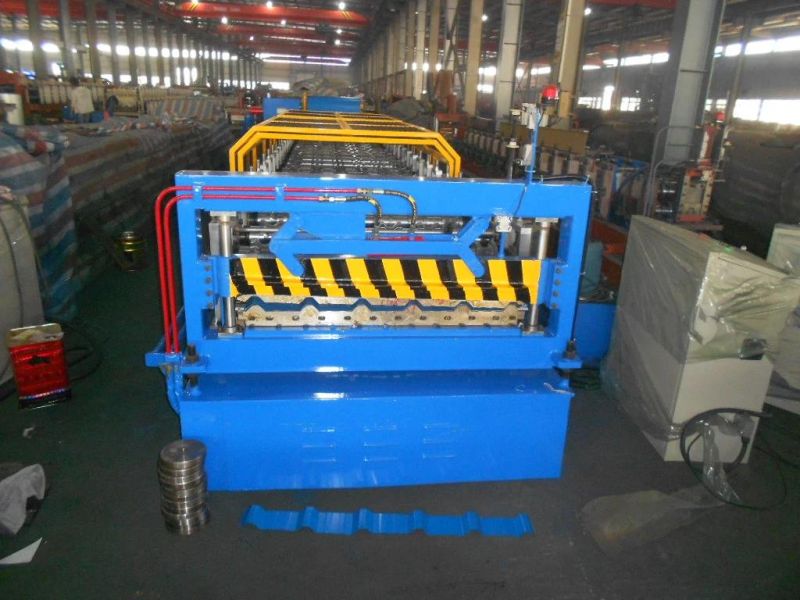

E. Hydraulic Cutting Device
    Stop to cut, Post cut, No Blanking cut
    Cutting tool material : Cr12, Heat treatment;
    Pump motor =4KW
    This cutting system as below picture:

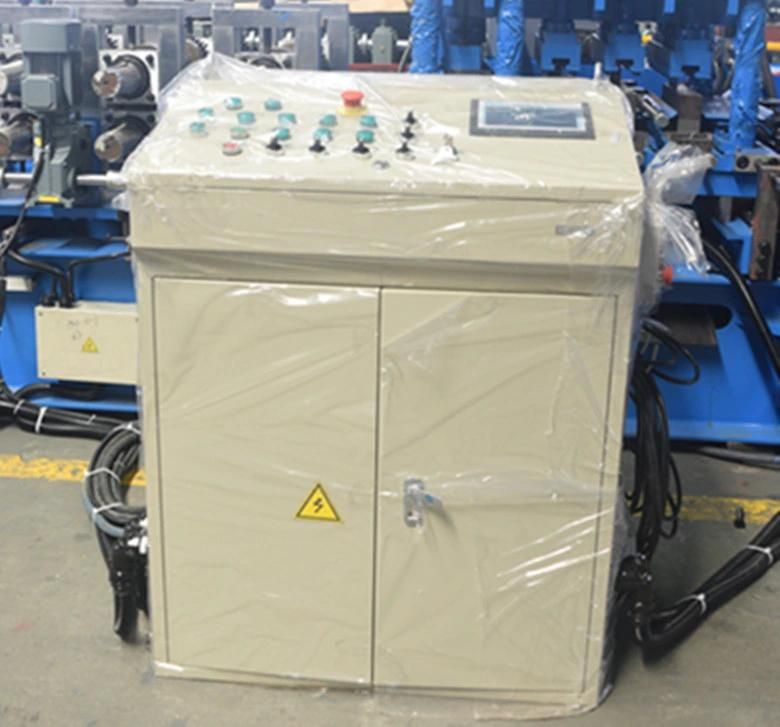

F. PLC Control System
    Control the quantity & cutting length automatically;
    Combined with: PLC, Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc
    Cut-to-length tolerance≤±2 mm
    Control Voltage 24V









After-Sale Service In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.Terms Of Trade1.ackage & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
2.Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
