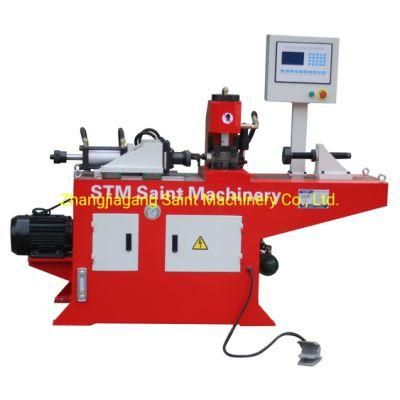

Automatic Straight Punching Three-Station End Forming Machine Tools of HVAC System
Zhangjiagang Saint Machinery Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
- Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：TM60-5
- Type：Pipe End Forming Machine
- Forming：Hydraulic 12.5t
- Tool Shifting：Servomotor
- Station Qty：3 Stations
- Transport Package：Plywood Case
- Specification：LWH: 2800x1250x1600mm, GW: 1800kg
- Trademark：STM
- Origin：China
- HS Code：8462219000
- Production Capacity：500
Description
Basic Info.
Model NO. TM60-5 Type Pipe End Forming Machine Forming Hydraulic 12.5t Tool Shifting Servomotor Station Qty 3 Stations Transport Package Plywood Case Specification LWH: 2800x1250x1600mm, GW: 1800kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500Product Description

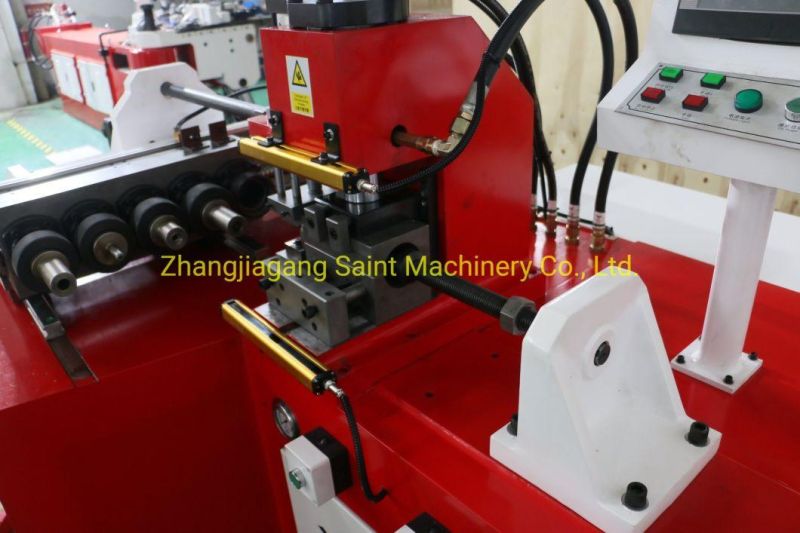

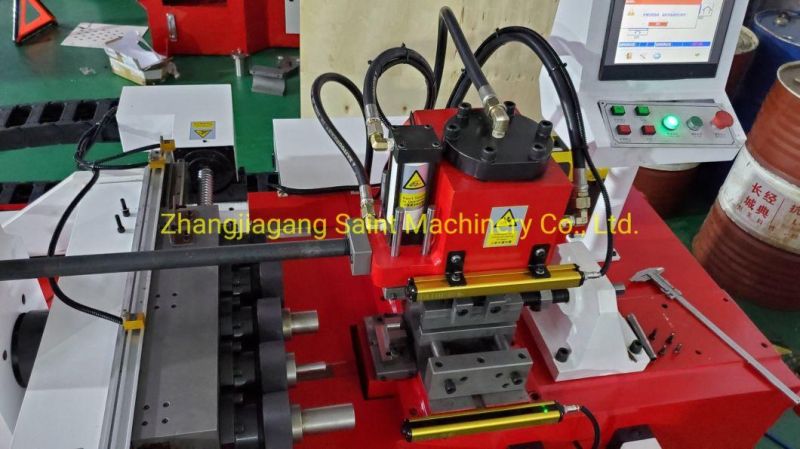

Premium PLC unit or SCM control, touch screen, convenient opration, flexible settings and easy to learnAC servo motor to shift the toolings (3 or more than 3 stations), or the hydraulic cylinder toolings shifting, accurately and steady.
Adopting high-accuracy linear slide rail, stable propulsion.
Can equipe with all kinds of forming moulds, for pipe end forming like expanding, contracting and other special forming.
Hydraulic cooling system (cooling fan and water cooling system) to ensure the equipment long-time work stably under the high temperature.
Technical parameters
| Parameters | TM40 | TM60 |
|---|---|---|
| Max processing capability | Φ40mm | Φ60mm |
| Max processing length | 100mm | 140mm |
| Main cylinder max output | 8T | 12.5T |
| Motor power | 4Kw | 5.5Kw |
| Oil pressure | 12MPa | 12MPa |
| Size | 1950×800×1500mm | 2200×800×1500mm |
| Gross weight | 1000 kg | 1250 kg |
