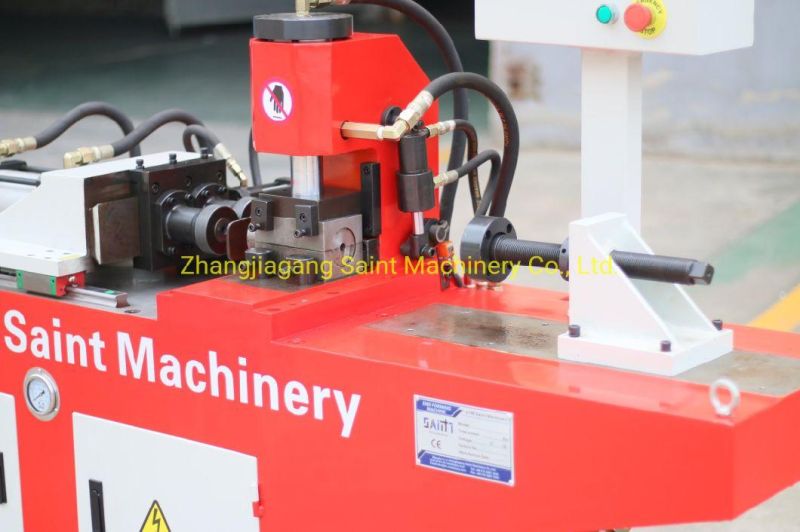

Automatic Straight Punching Three-Station Tube End Forming Machine for Tubes of Air Condition (TM40-2)
Zhangjiagang Saint Machinery Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
- Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：TM40-2
- Type：Pipe End Forming Machine
- Forming：Hydraulic 7.5t
- Tool Shift：Hydraulic
- Transport Package：Plywood Case
- Specification：LWH: 2000x700x1500mm, GW: 1000kg
- Trademark：STM
- Origin：China
- HS Code：8462219000
- Production Capacity：500
Description
Basic Info.
Model NO. TM40-2 Type Pipe End Forming Machine Forming Hydraulic 7.5t Tool Shift Hydraulic Transport Package Plywood Case Specification LWH: 2000x700x1500mm, GW: 1000kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500Product Description
Imported PLC unit or SCM control, touch screen(optional), convenient opration, flexible settings and easy to learnAdopting Mitsubishi servo motor to change moulds, or the hydraulic cylinder mould changing, accurately and steady.
Adopting high-accuracy linear slide rail, stable propulsion

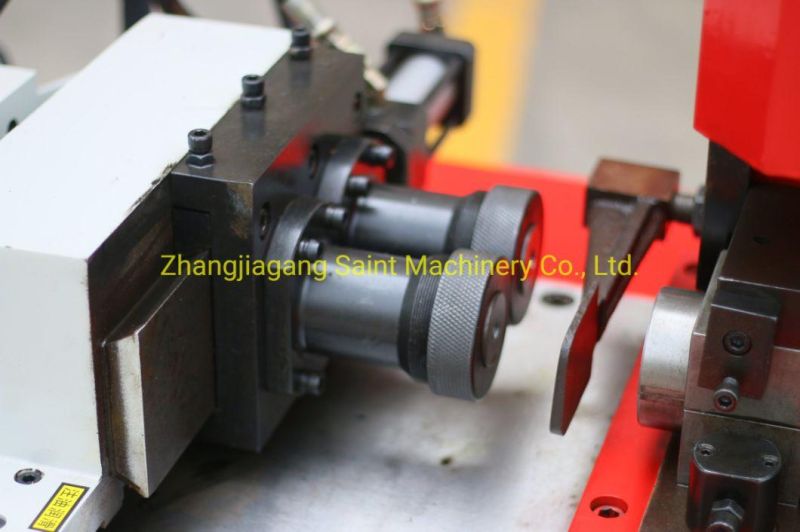

Can equipe with all kinds of forming moulds, for pipe end forming like expanding, contracting and other special forming
Hydraulic cooling system to ensure the equipment long-time work stably under the high temperature
| Parameters | TM40 | TM60 |
|---|---|---|
| Max processing capability | Max Φ40mm | Max Φ60mm |
| Max processing length | 120mm | 140mm |
| Main cylinder max output | 7.5T | 12.5T |
| Motor power | 4.0Kw | 5.5Kw |
| Oil pressure | 12MPa | 12MPa |
| Size | 2000×700×1500mm | 2200×800×1500mm |
| Gross weight | 1000 kg | 1250 kg |
