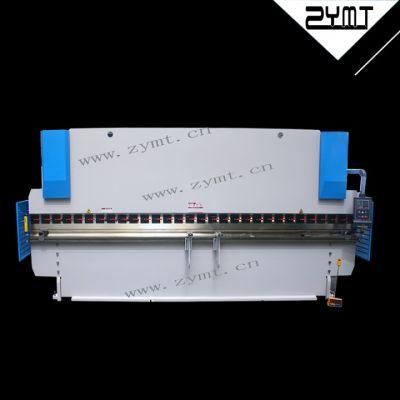

• Model NO.：WC67K 40T*2500 E21
• Size：2500*1200*1900
• Main Motor：Siemens Germany
• Electrics：Schneider France
• Controller：E21 Nanjing China
• Application：Machinery & Hardware
• Type for Fold-Bending Machine：Hydraulic Fold-Bend Machine
• Pump：Sunny
• Ball Screw：Hiwin
• Pipe Connector：Emb
• Hydraulic Valve：Rexroth
• Transport Package：Plastic Cover
• Specification：CE
• Trademark：ZYMT
• Origin：China
• HS Code：8462219000
• Production Capacity：3000sets,Year

NO.Parts nameBrandBrand locationModel1.Main motorSiemensGermany 2.Bacguage motorDetongShanghai China 3.Ram motorKongteNanjing China 4.ElectricsSchneiderFrance 5.Oil cylinderYuhuaMaansh China 6.Seal ringNokJapan 7.Hydraulic valveRexrothGermany 8.PumpHangfaShanghai China 9.ControllerE21Nanjing China 10.MouldGuolingMaanshan China 11.Pipe connectorEMBGermany 12.FootswitchKarconSouth Korea 13.Ball screwHiwinTaiwan 14.Controller with moveable armYES15.Front and back protection fenceYES16.Backguage with ball screwYES17.Backguage travel500MM18.Emergency buttonYES
Technical parameters of Hydraulic Machine ToolTypeNominal force(KN)Worktable length(mm)Poles distance(mm)Throat depth(mm)Slider travel(mm)Max open (mm)Power (KN)WeightDimension (mm)40t/2200400220018502301003205.527502200*1200*190040t/2500400250018502301003205.530002500*1200*190050t/2500500250018502301003205.534002500*1200*200063 t/2500630250019002501003205.540002500*1300*221063 t/3200630320025602501003205.548003200*1300*221080 t/2500800250019903001003207.550002500*1400*230080t/3200800320025603201003507.560003200*1500*230080t/4000800400032003201003507.570004000*1500*2400100t/25001000250019903201203507.560002500*1600*2400100t/32001000320026003201504007.568003200*1600*2600100t/40001000400032003201504007.580004000*1600*2600125t/32001250320026003201504001170003200*1600*2600125t/40001250400032003201504001185004000*1600*2600160t/320016003200258032020046011100003200*1700*2700160t/400016004000290032020046011110004000*1700*2800160t/500016005000390032020046011135005000*1900*3100160t/600016006000490032020046011185006300*1900*3200200t/320020003200248032020046011110003200*1950*2800200t/400020004000290032020046011125004000*1950*2800200t/500020005000390032020046011140005000*1950*3000200t/600020006000490032020046011200006000*1950*3300250t/320025003200245040025059018.5185003250*2000*3200250t/400025004000290040025059018.5200004000*2000*3400
 Packaging & Shipping

(1)Before packing, the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
(2)Before loading, stable package, professional and skilled loader reduce damage of product during transport.
(3)After loading, our professional documentary staff will follow the order till the product departs from port.

Our service
1:Established over 100 sales and service outlets in the country's 29 provinces, municipalities and also the establishment of foreign 72 sales points, machine sales, spare parts supply, maintenance, technical advice and a range of services for users at hone and abroad.
2:We have a specialized group in charge of the whole business process.Pre-sales to be a staff, the sales is a friend, and after-sales we are partners.

Certifications:
