• Type：Hydraulic Bending Machine
• Worktable Length：12000mm
• Motor Power (Kw)：75 Kw
• Poles Distance：9050 mm
• Throat Depth：700 mm
• Weight：320000 Kg
• Motor Power：2*75 Kw
• Width of Working Table (mm)：320 mm
• Nominal Pressure (Kn)：20000 Kn
• Extra Services：End Forming
• Dimension：12500*3500*8300
• Color：Optional
• Slider Stroke (mm)：400 mm
• Machine Type：Synchronized
• Open Height：800 mm
• Transport Package：Seaworthy Plastic Package with Films
• Specification：CE STANDARD
• Trademark：ZYMT
• Origin：China
• HS Code：8462219000
• Production Capacity：10 Set,Sets Per Year

Basic Info.

Type Hydraulic Bending Machine Worktable Length 12000mm Motor Power (Kw) 75 Kw Poles Distance 9050 mm Throat Depth 700 mm Weight 320000 Kg Motor Power 2*75 Kw Width of Working Table (mm) 320 mm Nominal Pressure (Kn) 20000 Kn Extra Services End Forming Dimension 12500*3500*8300 Color Optional Slider Stroke (mm) 400 mm Machine Type Synchronized Open Height 800 mm Transport Package Seaworthy Plastic Package with Films Specification CE STANDARD Trademark ZYMT Origin China HS Code 8462219000 Production Capacity 10 Set/Sets Per Year

Product Description

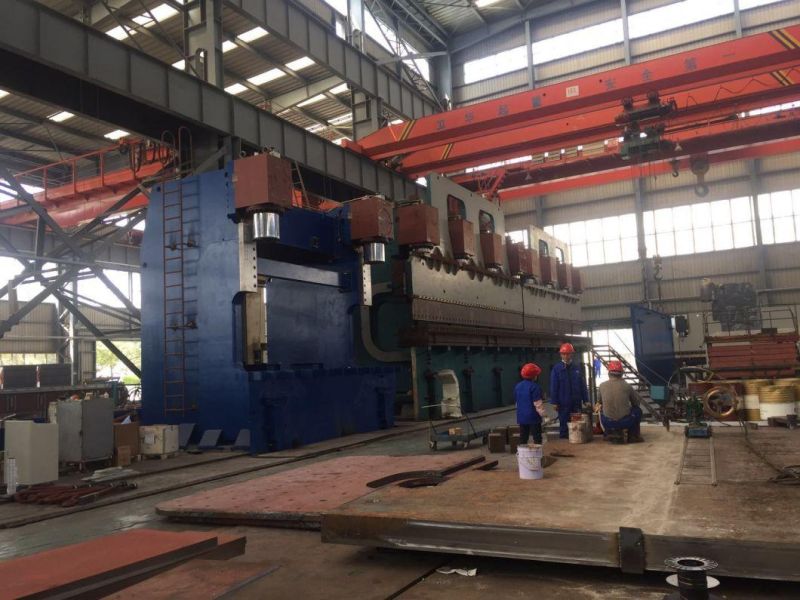

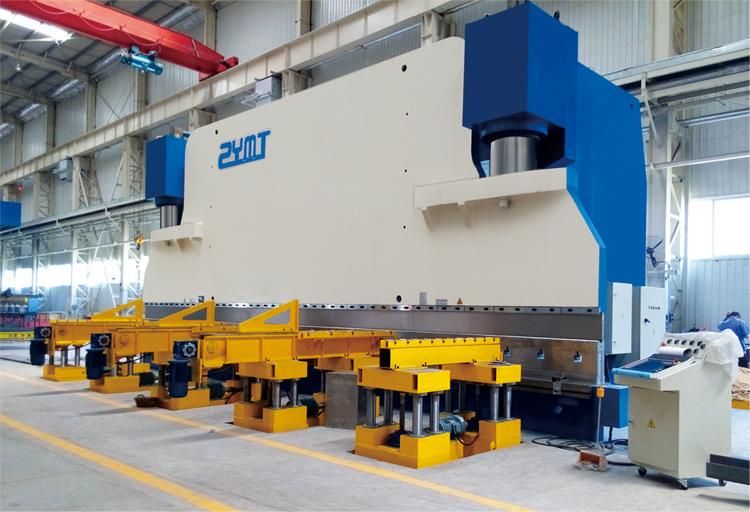

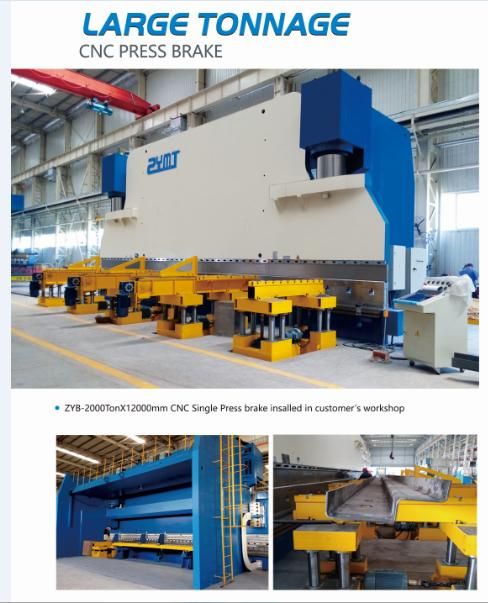

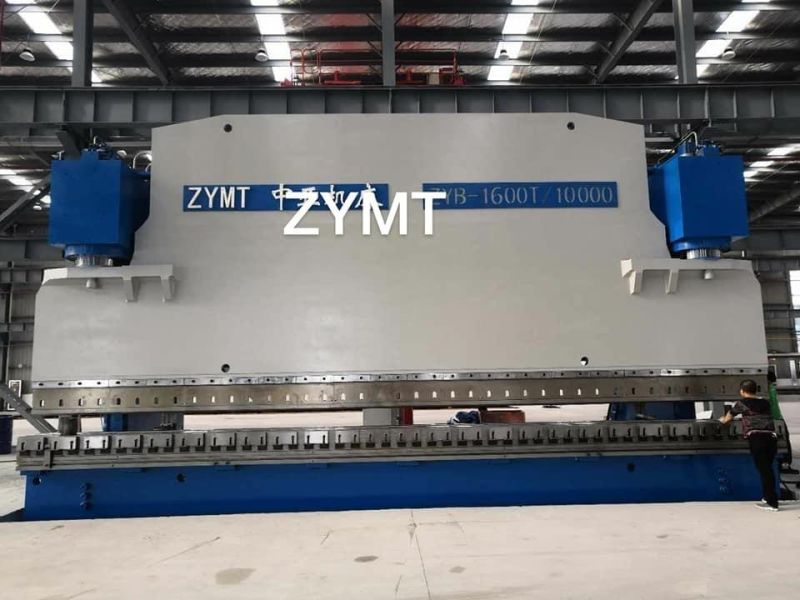

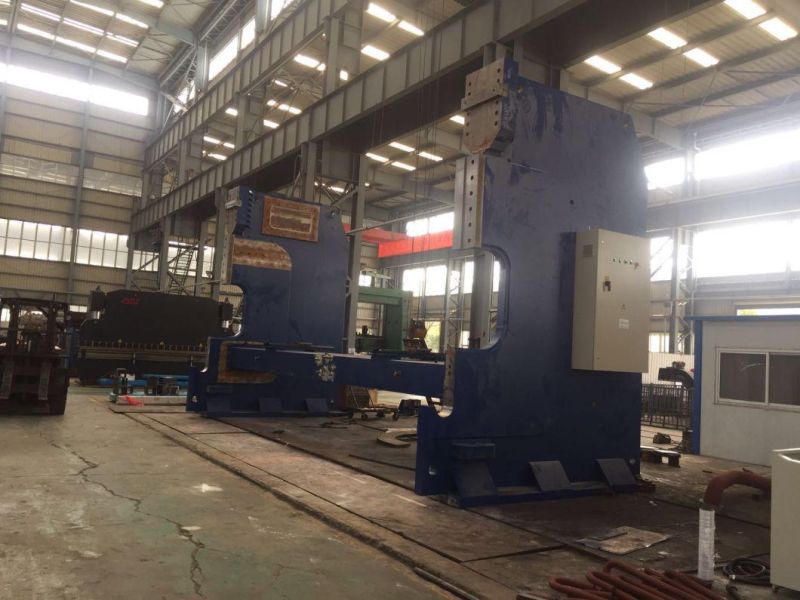

Sheet Metal Large Electro-Hydraulic Synchronous Tandem Bending Machine For Light Pole

Product Introduction

CNC sheet metal press brake with streamlined design,high speed,high precision and high rigidity Electro hydraulic servo system,full loop controlling the synchronization of the upper beam Equip with mechanical crowning compensation on worktable and deformation compensation device on throat,to make sure bending depth and precision Backgauge is driven by digital AC servo motor,moved by precision ball screw, guided by linear guide.

Details Overview

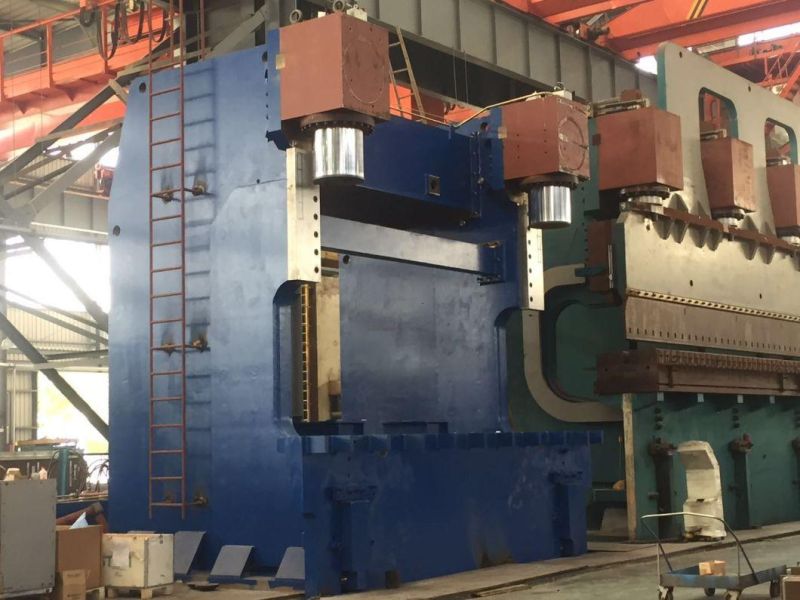

1. Y1,Y2 & Ram

Every unit has a CNC system, the Y1,Y2 on every unit can be single programmed so it can be deflect bending The ram run smoothly. Re-position precision, anti-eccentric load, work-pieces made precision are high because the use of circulation around servo control against CNC+electrical-hydraulic proportion valves linear encoder.

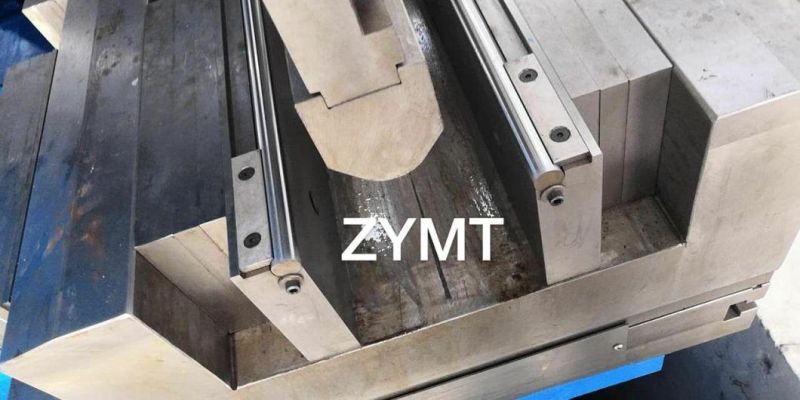

2. Adjustable Upper Press Brake Die

       Tandem CNC Hydraulic Press Brake upper die is adjustable.

      The straightness of sheet metal can be adjusted by the upper die.

      The shim on the upper die can protect the upper die and reduce abrasion.

3. Crowning Compensation Device

ZYMT Worktable Width standard sizes 260 mm.

The crowning device which is built into the table and controlled by CNC attain the precise deflection compensation.
Workpiece

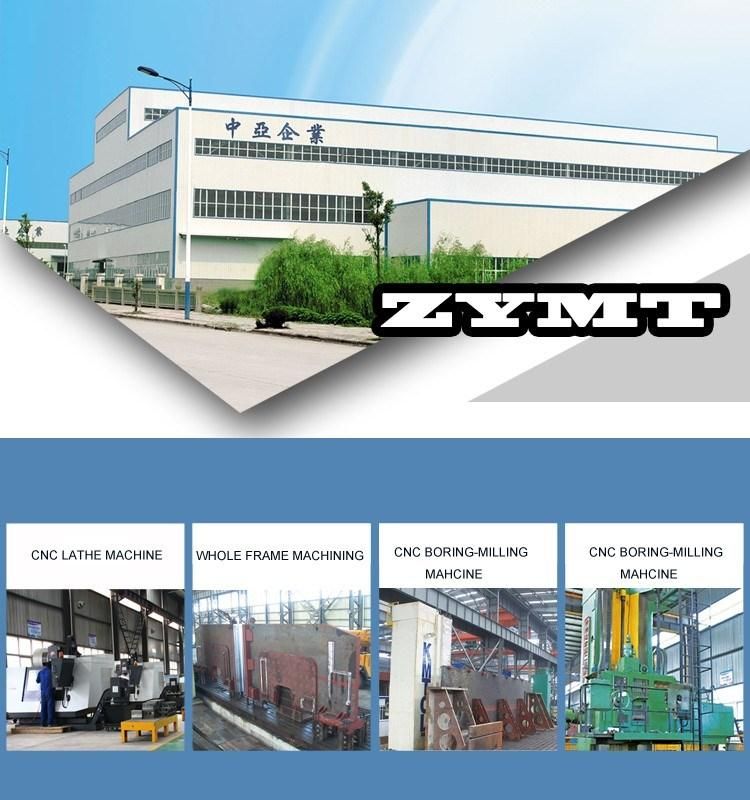

out Us of Economic Hydrauilc Press Brake

Certificate of Economic Hydrauilc Press Brake

Packing and Transportation of Economic Hydrauilc Press Brake

Our Service

24 hours telephone line is available      Experienced service technician team     Support in hard work solution.

for any question.                                    is available.

FAQ of Economic Hydrauilc Press Brake

1, Q: Are you factory or trading company?
    A: We are factory of press brake(bending) machine ,shearing machine and fiber laser cutting factory was established in 1988, with more than 30 years producing experience.

2, Q: What's your payment?
    A: T/T, 30% deposit in advance, 70% balance before ship.
Irrevocable L/C at sight
3, Q: What's about delivery time?
    A: For small model press brake, usually 15-30 days after received 30% deposit.
For big model press brake, usually 40-120 days after received 30% deposit.
4, Q: We don't know how to use the machine, can you help us?
    A: 1, We will send machine operation manual with machine;
        2, If customer require, we will send technician to your factory teach you how to use it and maintain it;
        3, You can send technician or workers to our factory, we will teach then how to use and maintain the machine.
5, Q: We are worry about the machine quality?
    A: Our machine warranty is 2 years. Before ship the machine, we will test it about 7-10 days, when you received it,you can use it directly, no need test it again.

Related Products

Fiber Laser Cutting Machine- Single Table

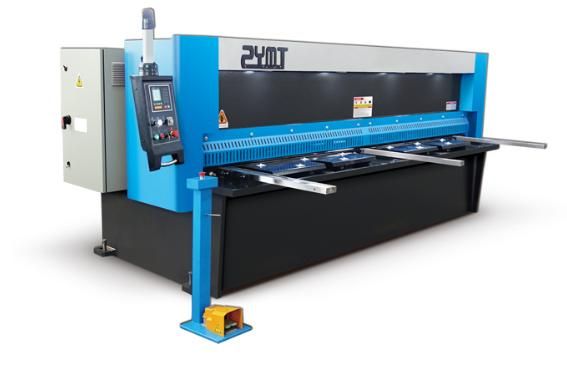

Shearing Machine - QC12Y
