• Model NO.：WC67K-100T,3200
• Type：Hydraulic Bending Machine
• Main Motor：Siemens Germany
• Controller System：Estun E21
• hydraulic Valve：Rexroth Germany
• Key Selling Points：High Safety Level
• Motor Power (Kw)：7.5 Kw
• Electrics：Schneider France
• Pipe Connector：Emb Germany
• Seal Ring：Nok Japan
• Weight (Kg)：6800
• Width of Working Table (mm)：1600 mm
• Nominal Pressure (Kn)：1000 Kn
• Slider Stroke (mm)：150 mm
• Material / Metal Processed：Carbon Steel
• Throat Depth (mm)：320 mm
• Length of Working Table (mm)：3200 mm
• Transport Package：Anti-Rust Oil and Plastic Cover
• Specification：CE STANDARD
• Trademark：ZYMT
• Origin：Anhui, China
• HS Code：8462219000
• Production Capacity：20 Set,Sets Per Month

Product Description

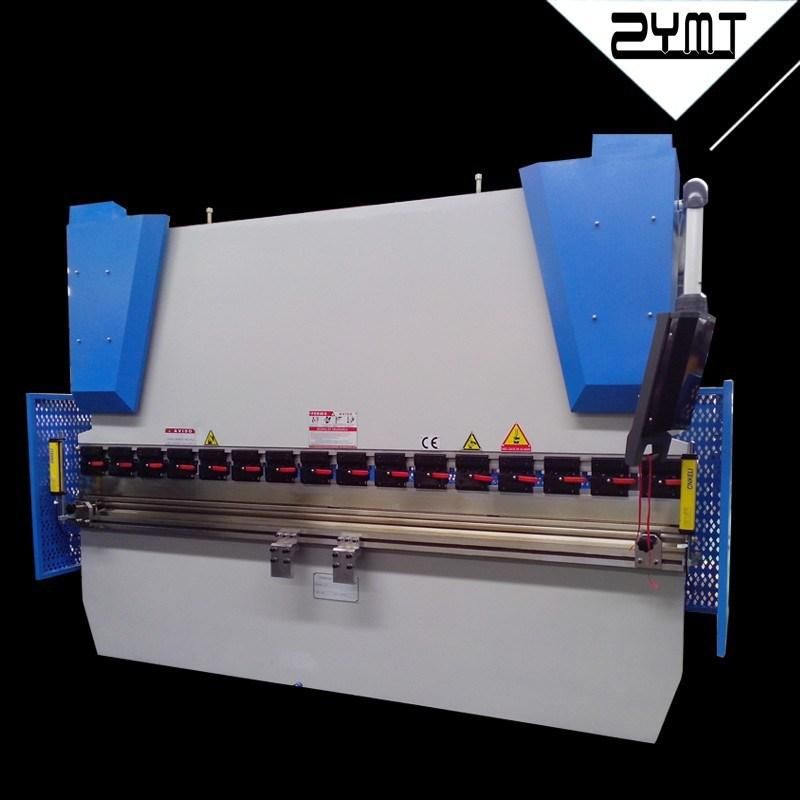

Time Proof NC Hydraulic Press Brake WC67K-100T/3200

Our this press brake machinery equipment can do many kinds of profiles.

Following is an example product our this press brake machine can do. (the part of a electric cabinet)

The press brake machinery equipment  is metal plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.

Double hydraulic oil cylinders are applied for upper transmission,provided with mechanical limit stopper and synchronize torsion bar,typical of stable and reliable operation, as well as high precision.
Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with NC controller.Detailed Images

Front suport and clamps

Front support can move left and right, up and down easily by manual.

Upper die clamp with compensation device.

Standard NC controller

E21 from Estun China (It's the sole agentl of Holland company in China)

Machine with one set standard toolings with upper punch segmented and multi-V die in one pc.

C-throat gap high strength.

Main motor, pump and valve

Siemens main motor German brand.

Sunny pump from USA.

Rexroth valve German brand.

Back gauge

High precistion stop finger with hand wheel for up and down adjustment.

Equipment ball screw for high position accuracy.

Electrics

Schneider electrics Franch brand.

Inverter Jracorive brand Shanghai, China


Main paramtersOur Company

The Real Top Manufacturer in China

Maanshan Middle Asia Machine Tools Manufacture Co., Ltd, today is placed as a professional leading manufacturer and global supplier of sheet metal working machinery specialized in the production of all types of hydraulic press brakes (Sychronized/Conventional), hydraulic guillotine shearing machines & hydraulic swing beam shearing machines (CNC/NC).


ZYMT 's registered capital is around USD 860,000.00, occupy 100,000.00 square meters with a production workshop of 50,000.00 square meters, making it one of Chinese largest facility for professional sheet metal fabrication machinery. The total workforce at ZYMT is currently numbered at 450 employees and is composed of highly trained and qualified machine operators and assembly technicians supported by a staff of experienced engineers and designers.


All the ZYMT products are manufactured with the Chinese AAA level good standardization and accredited for the ISO 9001:2008 and CE Certification is optional. In the past years ZYMT has progressed to become a major exporter of sheet metal machineries to the world markets with customers located in all the machine tools consuming countries.


ZYMT is currently represented in over 60 countries and regions worldwide through appointed dealers.


Here,with a long and strong engineering experience behind, ZYMT wishes to present itself as a quality-conscious, professional machinery building company serving the industry.

Certifications

Our CE certification is certificated strictly by Safenet company from UK.

ISO certification certificated by Fangyuan


Packing & DeliveryOur Service

24 hours telephone line is available for any question.

Experienced service technician team is available.

Support in hard work solution.
