Cutting & Fold-bend Machine

Hydraulic Shearing Machine (QC12k 12 * 2500) / Hydraulic Swing Beam Shear / ISO9001 CE Certification Cutting Machine

Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.
  • Condition:New
  • Certification:ISO 9001:2008, CE
  • Automation:Automatic
  • Size:3140*1740*2040
  • Application:Machinery & Hardware
  • Type for Cutting Machine:Hydraulic Cutting Machine

Base Info

  • Model NO.:QC12k 12*2500
  • Type:Cutting Machine,Shearing Machine
  • Main Motor:Siemens, Germany
  • Backgaug Motor:Detong, Shanghai China
  • RAM Motor:Kongte, Nanjing China
  • Electrics:Schneider, France
  • Seal Ring:Nok, Japan
  • Pump:Sunny, USA
  • Transport Package:Plastic Cover
  • Specification:CE
  • Trademark:ZYMT
  • Origin:China
  • HS Code:8462299000
  • Production Capacity:3000sets,Year

Description

TypeCutting thickness(mm)Cutting length(mm)Angle range(°)Material strengthTravel timesPowerWeightDimension
L*W*H*(mm)4*2500425001°30'≤450105.538003040*1610*16204*3200432001°30'≤450105.550003840*1610*16204*4000440001°30'≤45085.565004600*1700*17004*6000460001°30'≤45057.5110006460*2100*32006*2500625001°30'≤450107.550003040*1610*16206*3200632001°30'≤45097.560003840*1610*16206*4000640001°30'≤45087.580004620*1750*17006*5000650001°30'≤45067.5105005400*1750*17006*6000660001°30'≤450511165006480*2100*23008*2500825001°30'≤450107.560003040*1700*17008*3200832001°30'≤45087.572003860*1700*17008*4000840001°30'≤45087.588004640*1700*17008*5000850001°30'≤45087.5115005400*2400*20008*6000860001°30'≤450811180006480*2100*235010*25001025001°30'≤45091173003040*1700*170010*32001032001°30'≤45091180003860*1700*170010*40001040001°30'≤450811120004650*2100*200010*60001060002°≤450515240006500*2100*230012*25001225002°≤450918.590003140*2150*200012*32001232002°≤450918.5108003880*2150*200012*40001240002°≤450818.5130004680*2150*200012*50001250002°≤450618.5160005900*2150*200012*60001260002°≤450518.5290006900*2600*270012*80001280002°≤450518.54650009000*3500*350016*25001625002°30'≤450918.5110003140*2150*200016*32001632002°30'≤450818.5130003880*2150*200016*40001640002°30'≤450818.5163004650*2150*220016*50001650002°30'≤450618.5200005900*2600*270016*60001660002°30'≤450522360006900*2700*270020*25002025003°≤450822155003440*2300*250020*32002032003°≤450822180004150*2350*270020*40001040003°≤450522210004850*2350*270025*25002525003°≤450837190003200*2700*290025*32002532003°≤450537230004200*2700*290025*40002540003°≤450537270003850*2700*290030*25003025003°≤450537235003300*2900*290030*32003032003°≤450537275004200*2900*2900

Features:
1:The machine is fitted with CNC controller special for shearing machines.
2:The position of rear stopper is displayed in real-time manner.
3:Multi-step programming function is available and the rear stopper is able for automatic operation and continues positioning, to achieve an automatic adjustment for position of rear stopper.
4:It is provided with counting function for shearing , to display the shearing numbers in a real-time manner ,able for power-failure memory of position of rear stopper, procedures, and parameters.
5:Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision processing.

1:Basic standard NC machine with E21s controllerNO.Parts nameBrandBrand locationModel1.Main motorSiemensGermany 2.Bacguage motorJiahuangHangzhou China 3.ElectricsSchneiderFrance 4.Oil cylinderYuhuaMaansh China 5.Seal ringNokJapan 6.Hydraulic valveRexrothGermany 7.PumpHangfaShanghai China 8.ControllerE21Nanjing China 9.BladesJinshanShanghai China 10.Pipe connectorEMBGermany 11.FootswitchKarconSouth Korea 12.Ball screwHiwinTaiwan 13.Controller with moveable armYES14.Front and back protection fenceYES15.Backguage with ball screwYES16.Backguage travel500MM17.Shadow line lightingYES18.Emergency buttonYES
2:  E200S higher level NC controller with servo motor of x-axisNO.Parts nameBrandBrand locationModel1.     Main motor SiemensGermany 2.     Bacguage motorEstunNanjing China 3.     ElectricsSchneiderFrance 4.     Oil cylinderYuhuaMaansh China 5.     Seal ringNokJapan 6.     Hydraulic valveRexrothGermany 7.     PumpHangfaShanghai China 8.     ControllerE200sNanjing China 9.     BladesJinshanShanghai China 10.   Pipe connectorEMBGermany 11.   FootswitchKarconSouth Korea 12.   Ball screwHiwinTaiwan 13.   Guide railHiwinTaiwan 14.   Controller with moveable armYES15.   Front and back protection fenceYES16.   Backguage with ball screwYES17.   Backguage travel600MM18.   Shadow line lightingYES19.   Emergency buttonYES
3:Two axes DAC310 CNC control systemNO.Parts nameBrandBrand locationModel1.     Main motor SiemensGermany 2.     Bacguage motorEstunNanjing ChinaServo motor3.     ElectricsSchneiderFrance 4.     Oil cylinderYuhuaMaansh China 5.     Seal ringNokJapan 6.     Hydraulic valveRexrothGermany 7.     PumpHangfaShanghai China 8.     ControllerDAC310Nanjing China 9.     BladesJinshanShanghai China 10.   Pipe connectorEMBGermany 11.   FootswitchKarconSouth Korea 12.   Ball screwHiwinTaiwan 13.   Guide railHiwinTaiwan 14.   Controller with moveable armYES15.   Front and back protection fenceYES16.   Backguage with ball screwYES17.   Backguage travel600MM18.   Shadow line lightingYES19.   Emergency buttonYES

 Optional controllers
DAC310
Bright LCD 128*64 display
Back gauge control, Gap control, stroke length limitation;
Actual and programmed position visualization, stroke counter;
Programmable up to 100 steps;
Panel-based housing;
Servo control/ unipolar / AC two-speed control;
Mm/inch transmission

E200S
Back gauge control, bus mode control servo system;
Stroke length limitation, double programmable digital output;
Program memory of up to 40 programs, up to 25 steps per program;
One side positioning, retract function;
Mm/inch transmission, Chinese /English transmission;
240*128 pixels LCD display.

E21S
Back gauge control, control for general AC motor, frequency inverter;
Intelligent positioning, double programmable digital output;
Stock counter, program memory of up to 40 programs, up to 25 steps per program;
One side positioning, retract function;
One key backup, restore of parameters;
Mm/inch transmission, Chinese/English transmission;LCD display.

P40
analog or digital outputs for 1-3sreed operation
16 free programmable digital in-/outputs
program memory(1000 sets)
angle control/ gap control/ back gauge
limitation of the cutting length
material of the cutting length
material list for angle and gap control


HT071
regulated power supply for encoder or push pull/o.c.
optical line 12 vdc ±5% 120ma
optoisolated inputs
high luminosity led display having 6 digits plus sign for position
2 digits for cycles and for programs
possibility to save up to 99 programs composed of 20 cycles
each cycle can count 65000 repetitions at maximum
data and programs are saved in a flash memory without floating battery
IP65, polycarbonate, water and abrasion-proof keyboard with tactile sensitivity


Our Services
1:Established over 100 sales and service outlets in the country's 29 provinces, municipalities and also the establishment of foreign 72 sales points, machine sales, spare parts supply, maintenance, technical advice and a range of services for users at hone and abroad.
2:We have a specialized group in charge of the whole business process.Pre-sales to be a staff, the sales is a friend, and after-sales we are partners.

Hydraulic Shearing Machine (QC12k 12 * 2500) / Hydraulic Swing Beam Shear / ISO9001 CE Certification Cutting Machine

1.24 hours telephone line is available for any question.

2.Experienced service technician team is available.

3.Support in hard work solution.

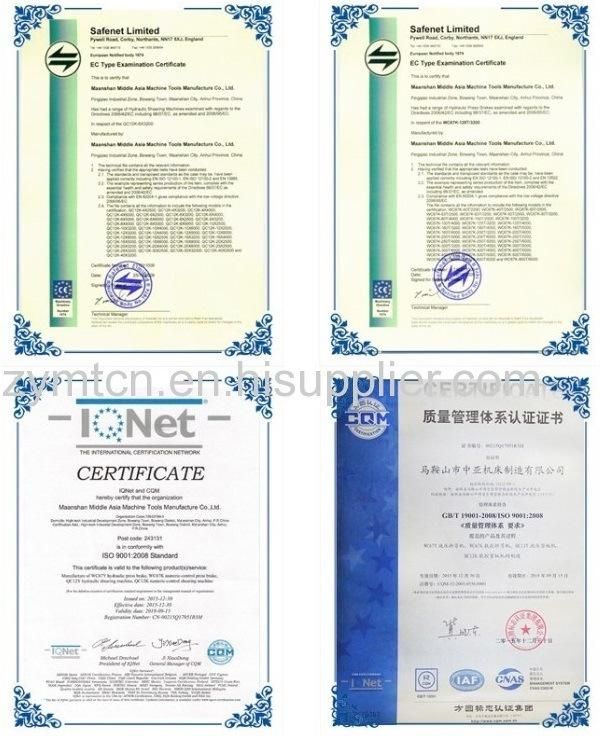

Certifications
