China High Quality Bica CNC540 CNC Wire Cut EDM Machine
Tengzhou Hoton Machinery Co., Ltd.- After-sales Service:Online
- Warranty:1 year
- Condition:New
- Automation:Automatic
- Transport Package:Plywood Case
- Trademark:HOTONMC
Base Info
- Model NO.:CNC540
- Origin:China
- Production Capacity:5000
Description
Basic Info.
Model NO. CNC540 Origin China Production Capacity 5000Product Description
Introduction of CNC System
- The system modules are connected by CAN BUS, Modular design and high integration ensure the operation stability of system.
- 2.Close-loop servo system designed independently for EDM adapts various operation conditon, the minimum control precision is 1um.
- 3.Servo module is installed on the main engine,motor control and signal feedback lines need not connect to control system,wich greatly reduce the complexity of installation technology.
- 4.Special mirror machining circuit, graphite machining circuit, Low electrode loss Machining circuit.
- 5.Main contol module is not controled by PC, but it is designed with embedded system,wich rduce the complexity of system and ensure better stability.
- 6.Simple operating hand control box greatly improve efficiency and triaxial operation can be completed immediately with hand control box.
- 7.M818 DC servo motor, single peak waves grating ruler with 1um precision and 9 pins interface.
- 8.Application of SMT reduces the volume of control board and ensures the stability.
- 9.The system function: 2.5 axis servor discharge for circle shaking and squareness shaking, three axes linkage of space line, helix line and taper , seamless joint of multi- motion.
- 10.The system developed and designed independently can be customized according to the requirement of customers.
Specification | Unit | CNC540 |
X,Y, travel size | mm | 500×400 |
Working table size | mm | 850×500 |
Z axis travel | mm | 300 |
Max.workpiece weight | kg | 1800 |
Max. electrode Weight | kg | 150 |
Distance From Electrode Plate To Worktable | mm | 390-690 |
Oil tank capacity | L | 800 |
Machine weight | kg | 2500 |
Work tank Internal Size(L*W*H) | mm | 1370*720*450 |
Electric Cabinet Parameter and Specification | AC SERVO | |
Max.processing current | A | 30 |
Max.processing speed | mm3/min | 300 |
Min Electrode Consumption | ≤0.1% | |
Optimum roughness | um | 0.1 |
Total input power | kw | 10 |
Contact Us: |
Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 |
Company Profile: |

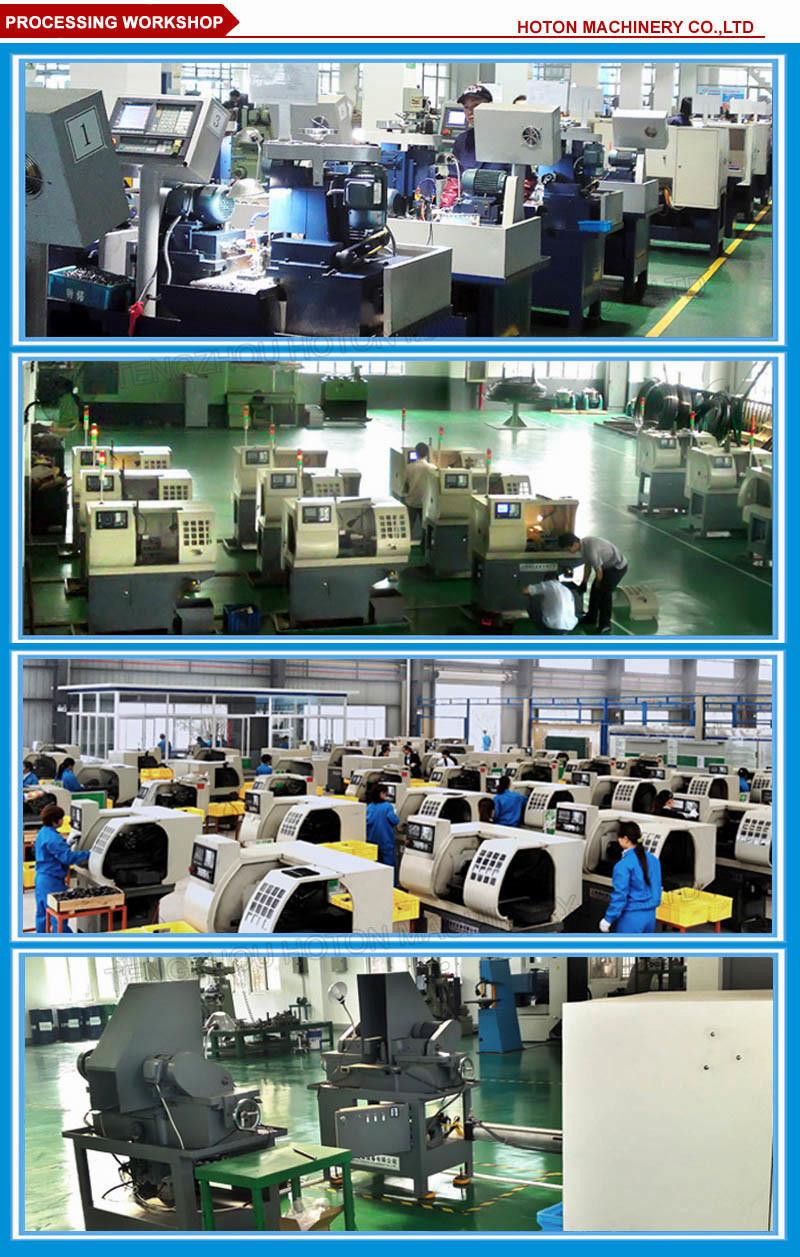

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
