• Model NO.：D7140
• Origin：China
• Production Capacity：5000

Basic Info.

Model NO. D7140 Origin China Production Capacity 5000

Product Description

Main Features

1) Japan SANYO DC servo motor in Z axis.
2) X,Y axes adopts precise ball screw.
3) Professional database system.
4) High speed 400mm3/min.
5) Surface roughness Ra0.8.
6) Taiwan control system.
7) Germany guideway.PVC coating for wear resistance.
8) SIEMENS,Germany AC contactor.
9) OMRON relay.
10) Japan high frequency power tube.
11) Harbin bearings.P5 grade.
12) Castings,HT250 resin sand.

Electroerosion JS EDM Introduction

The electrical discharge machining are used with impulse electric cabinet.Z axis is driven by Japan SANYO DC servo motor,with Z axis numerical control feature.
X,Y axes adopt precise ball screw,and precision optical grating digital display shows the coordinate which make coordinates have high positioning accuracy.
Electric cabinet of electrical discharge machining adopts the most advanced industry-specific control board,strong function,good stability,simple operation.
As long as input a few parameters,such as Z axis depth,it will select a set of suitable date from the expert database system that matches the processing,and process from the rough processing to finish once automatically.

Main Technical Parameters

Item	D7125	D7132	D7140	D7145	D7150	D7160
Worktable size	400x250	500x200	650x400	720x450	800x500	1000x600
Worktank size	1030x520 x320	1030x560 x320	1050x630 x410	1400x710 x410	1450x780 x500	1680x850 x580
X axis travel	250	320	400	450	500	600
Y axis travel	150	250	300	350	400	450
Z axis travel	240	240+240	250+250	250+250	250+300	250+350
Distance between electrode and worktable	400	550	650	680	700	800
Max. workpiece weight	250	550	750	800	800	1000
Max. Electrode weight	50	60	70	80	100	150
Machine weight	1100	1200	1800	2000	2200	3000
Machine size	1100x1200x2040	1100x1400 x2120	1100x1200 x2040	1500x1500 x2250	1600x1500 x2300	1700x1600 x2400

Contact Us:

Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796

Company Profile:

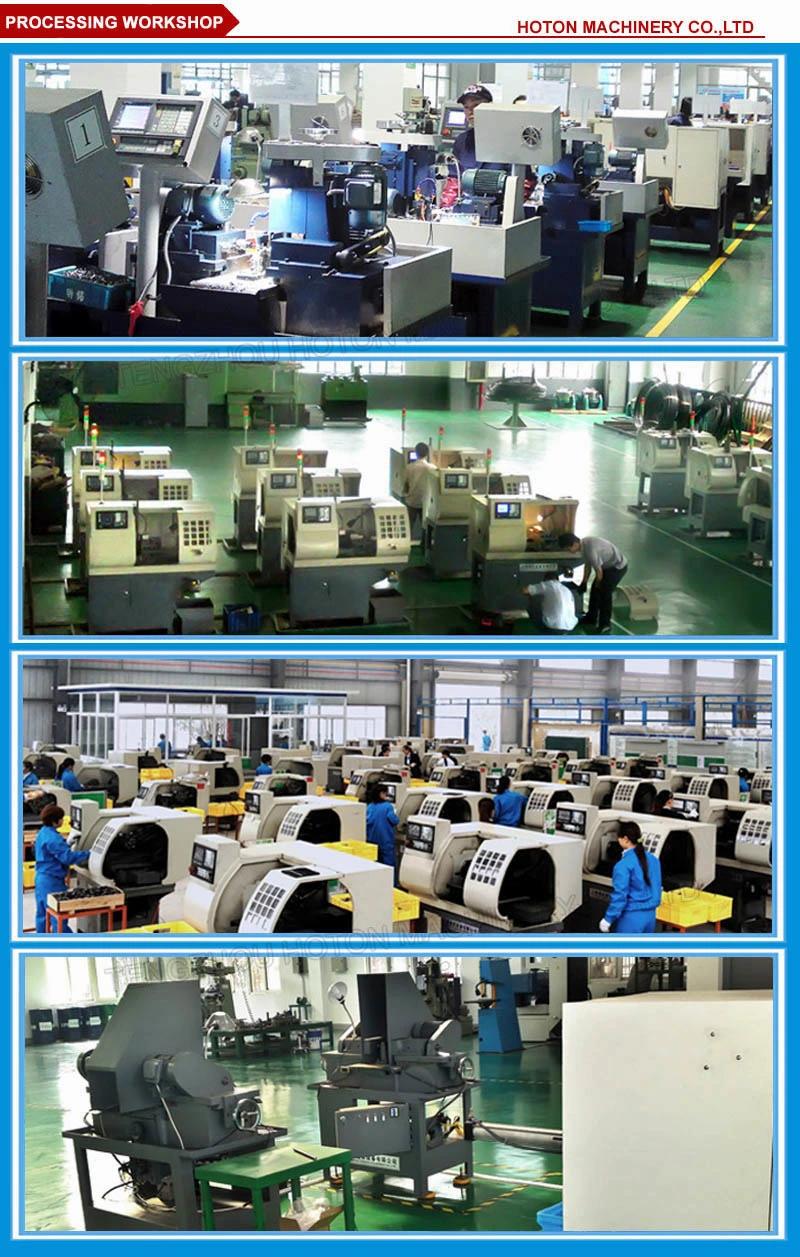

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.
