Press Brake Bending Machine Press Brake Machine (250T/4000mm)
Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.- Condition:New
- Certification:ISO 9001:2008, CE
- Automation:Automatic
- Type:Press Brake
- Size:250t,4000mm
- Application:Machinery & Hardware
Base Info
- Model NO.:WC67Y-250T,4000mm
- Type for Fold-Bending Machine:Hydraulic Fold-Bend Machine
- Type for Cutting Machine:Press Brake Machine
- Main Motor:Siemens

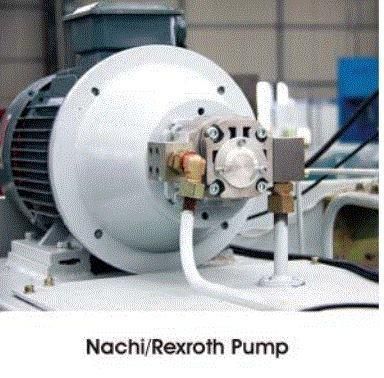

- Pump:Sunny
- Hydraulic Valve:Rexroth
- Controller:E21

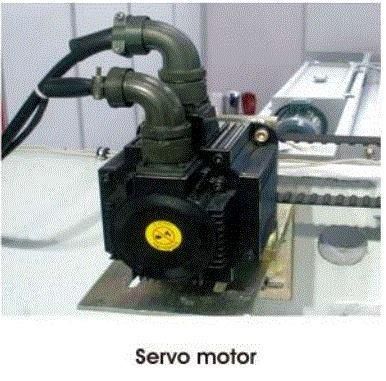

- Backgauge Motor:Detong
- Ball Screw:Hiwin
- Transport Package:Plastic Film Pack
- Specification:ISO, CE, SGS
- Trademark:ZYMT
- Origin:China
- HS Code:8462199000
- Production Capacity:1500 Sets,Year
Description
Basic Info.
Model NO. WC67Y-250T/4000mm Type for Fold-Bending Machine Hydraulic Fold-Bend Machine Type for Cutting Machine Press Brake Machine Main Motor Siemens Pump Sunny Hydraulic Valve Rexroth Controller E21 Backgauge Motor Detong Ball Screw Hiwin Transport Package Plastic Film Pack Specification ISO, CE, SGS Trademark ZYMT Origin China HS Code 8462199000 Production Capacity 1500 Sets/YearProduct Description

Hydraulic Bending Machine WC67Y with E10 Digital Display:
Product Details:
Place of Origin Anhui, China (Mainland)
Brand Name ZYMT
Model Number WC67Y 200T/4000
Machine Type Press Brake
Raw Material Sheet / Plate Rolling
Material / Metal ProcessedCarbon Steel
Power hydraulic
Automation Automatic
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Port: Shanghai
Packaging Details: Covered with plastic film
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 1500 Set/Sets per Year
General parameters
Bending force: 200Tn
Bending length: 4000 mm
Distance between holes: 3000 mm
Fast down speed: 100 mm/s
Working speed: 12 mm/s
Return speed: 75 mm/s
Max. Openning: 590 mm
Regulation of Slider travel: 120 mm
Slider travel: 250 mm
Back gauge travel: 800 mm
Throat depth: 400 mm
Main power: 18.5 kW

Main Equipments
Hydraulic system: Omega
Pump: Gear pump
Electrics: Germany Siemens
O-rings: Japanese NOK
Connectors: Germany EMB
Ball screw: Taiwan HIWIN
Line guide rail: Taiwan HIWIN
NC Controller: Estun E200
Other standard equipments
Segmented upper punch: 1set
Lower die: 1 piece
Stop fingers: 2
Front supporting arms: 2
Emergency stop button
Back, left and right safety fence
Foundation bolts: 1 set
Toolings: 1set (screw driver and spanner)
Manuals and diagram: 1 book
Dimension and Weight
Length: 4000 mm
Width: 2000 mm
Height: 3400 mm
Weight (Approx. ): 20200 kg
Description | Hydraulic Bending Machine WC67Y/K with E10 Digital Display |
color | optional |
dimension | 4000x2000x3400 (LxWxH) |
Detailed Images:


Packing&Delivery:
With more than 10 years exporting experience, we are so skilled for loading containers and packing the machines in container for safety. Each machine use min. 6mm dimeter steel rope to fix the four angles with the container, to avoid the machinery equipment move in the container.
Our Services:
1.24 hours telephone line is available for any question.
2.Experienced service technician team is available.
3.Support in hard work solution.
Certifications:
