CNC Hydraulic Bending Machine for Rebar/Automatic Rebar Bending Machine
XUCHANG HENGYISHENG COMMERCIAL CO., LTD.- Warranty：2-year
- Condition：New
- Certification：CE
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Hydraulic Bending Machine
Base Info
- Model NO.：Develop No. Series
- Color：Red Blue Yellow etc
- Application：Construction Projects
- Transport Package：Wooden Case or as Required
- Specification：size is different for different model
- Trademark：Hengyisheng
- Origin：Henan
- HS Code：8462219000
- Production Capacity：3000sets,Year
Description
Double Line Working Capacity
(mm)Round steel bar:
4-6 Round steel bar:
4-10 Round steel bar:
5-10 Round steel bar:
5-10 3 grade deformed steel bar:4-6 3 grade deformed steel bar:4-8 3 grade deformed steel bar:5-10 3 grade deformed steel bar:5-10 Working temperature -5~40ºC -5~40ºC -5~40ºC -5~40ºC Max. bending angle 180° 180° ±180°
(double direction) ±180°
(double direction) Max. feeding speed(m/h) 3600 3600 4500 4500 Max. bending speed
(°/s) 800 800 1000 1000 Length Error(mm) ±1 ±1 ±1 ±1 Angle Error(°) ±1 ±1 ±1 ±1 Average power consumption 4.5kw/h 5kw/h 5kw/h 5kw/h Motor power(kw) 12.5 20 28.5 30.5 L*W*H(mm) 2600x880x1700 3280x1000x1700 3560x1080x2030 3560x1080x2030 Weight(kg) 1150 1350 2200 2450
CNC automatic stirrup bending machine
1. Frictional progressive feeding mechanism with high accuracy and no harm to steel bar rib.
2. The benders apply double line feeding system, which can greatly increase the productivity and reduce the labor intensity.
3. With the function of quick back and forth bending, the double vane bending die has improved its bending performance.
4. Powerful hydraulic shearing mechanism with good reliability.
5. The powerful memory database provides hundreds of shapes for using.
6. Quick-adjusting system has the function of machine diameter.
7. Synchronous belt drive with high accuracy and low cost of maintenance.
8. Hydraulic Controlling system.

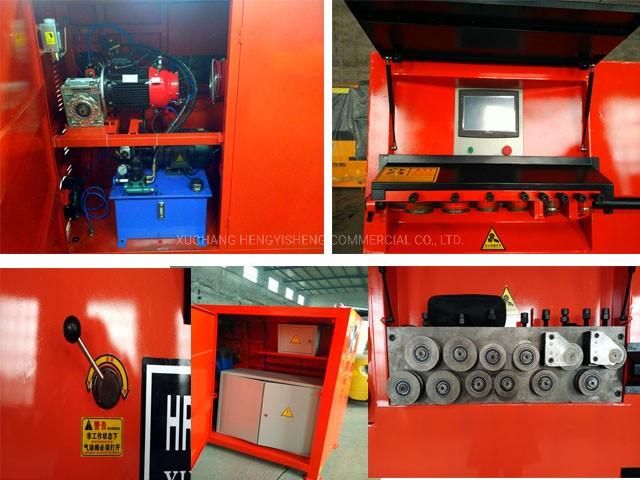

Detailed pictures
Company services:
(mm)
4-6
4-10
5-10
5-10
(double direction)
(double direction)
(°/s)
CNC automatic stirrup bending machine
1. Frictional progressive feeding mechanism with high accuracy and no harm to steel bar rib.
2. The benders apply double line feeding system, which can greatly increase the productivity and reduce the labor intensity.
3. With the function of quick back and forth bending, the double vane bending die has improved its bending performance.
4. Powerful hydraulic shearing mechanism with good reliability.
5. The powerful memory database provides hundreds of shapes for using.
6. Quick-adjusting system has the function of machine diameter.
7. Synchronous belt drive with high accuracy and low cost of maintenance.
8. Hydraulic Controlling system.

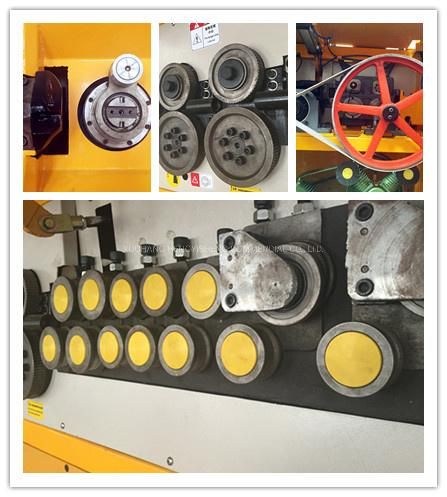

Detailed pictures
