• Model NO.：GM-SB-114NCB
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：5500X1400X1700mm
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-114NCB Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification 5500X1400X1700mm Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-114NCB

1. Machine Characteristic

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.


1. Main Technical Parameter



Name	Unit	Parameter
Max. Bending Capacity	mm	¢114*12
Bending Radius Range	mm	40-500
Max. Bending Angle	°	190°
Though Effective Distance	mm	3500
Bending Speed	°/sec	20
Bending Precision	°	±0.10
System Motor Power	KW	15
Oil Pump Delivery Volume	L	36
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	4800*1350*1300
Machine Weight	T	5.5



1. Configuration of Hydraulic and Electronic Control System



Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Oil tube	Zhejiang

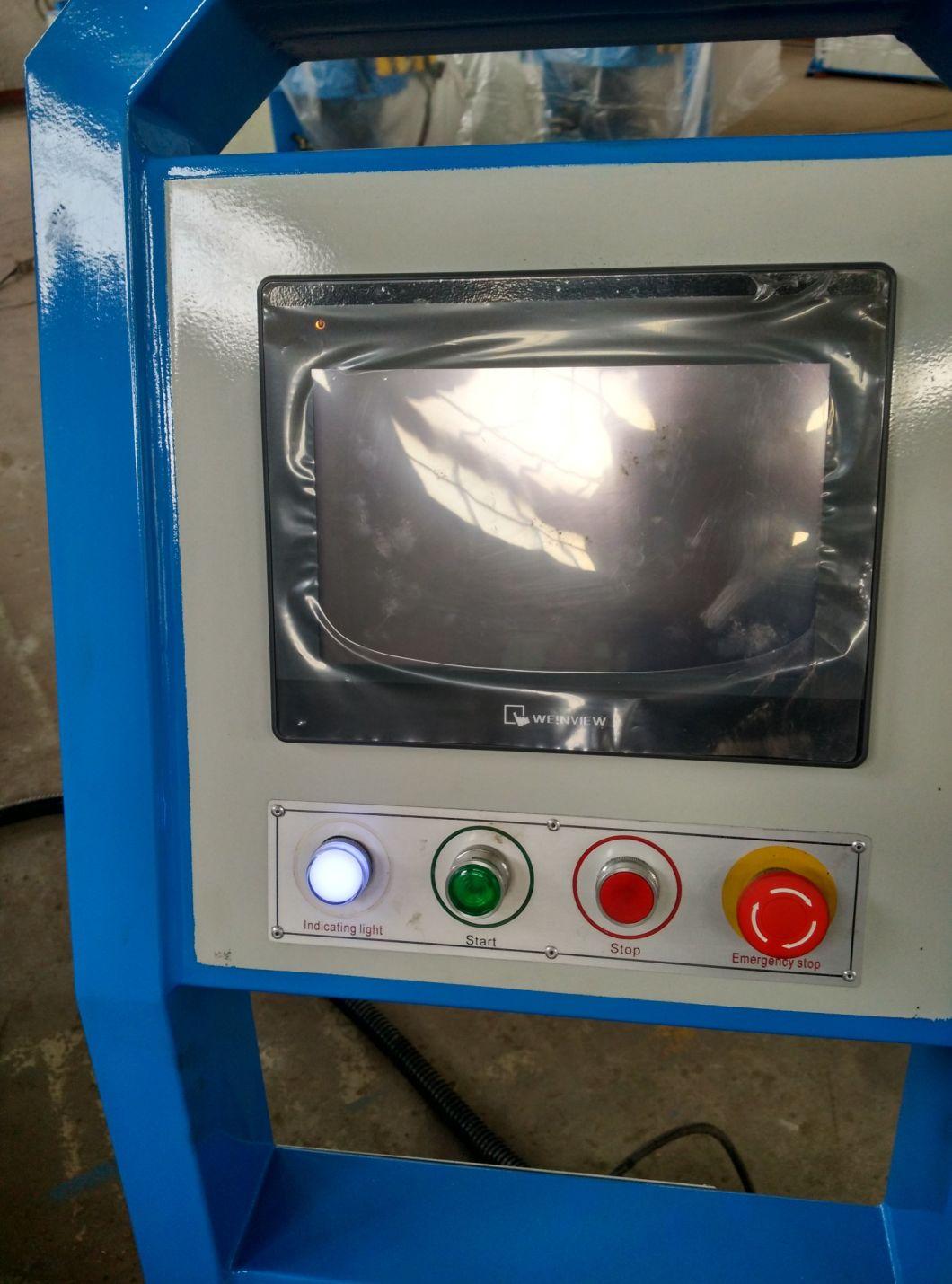

Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Contactor	German SCHNEIDER(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
