CNC Spring Forming Machine for Steel Garment Clips
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Warranty：1 Year
- Name：CNC Spring Forming Machine for Steel Garment Clips
- Speed：0-120 PCS,Min
- Weight：900kg
- Machine Type：CNC
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
Base Info
- Max. Outer Dia.：50mm
- Feeding Length：Unlimited
- Width：0.2-2.3mm
- Axes：3(4)
- Transport Package：Standard Export Fumigated Wooden Case
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Max. Outer Dia. 50mm Feeding Length Unlimited Width 0.2-2.3mm Axes 3(4) Transport Package Standard Export Fumigated Wooden Case Trademark WG Origin Guangdong, China (Mainland)Product Description

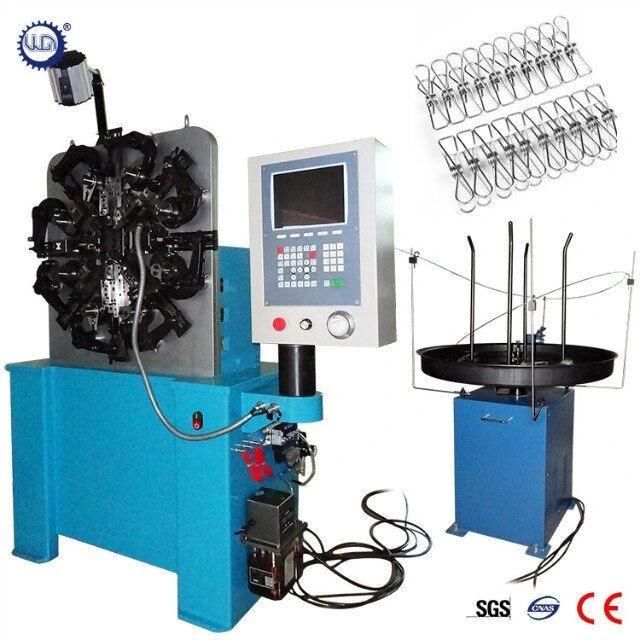

CNC Spring Forming Machine for steel garment clips
Product Description
CNC spring forming machine is to produce kinds of springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller. It can produce kinds of compression spring, torsion spring, tension spring ,abnormal spring and other wire forms. Can be extended to 4 axis with spinner upon request.
Technical Paramter:
| Model | GT-SF-20B |
| Wire size(mm) | 0.2-2.3 |
| Max. outer dia. | 50mm |
| Axes | 3(4) |
| Feeding length | unlimited |
| Wire feed speed | 0-100M/min |
| Production rate | 0-120pcs/min |
| Wire feed Motor | 2.7kw |
| Cam motor | 2.7kw |
| Quill motor | 1.0kw |
| Size(L*W*H)mm | 1100x600x1600 |
| Weight | 900.0kg |
Advantages:
1:high production capacity
2:Stable performance and high precision
3:Easy to operate,automatic

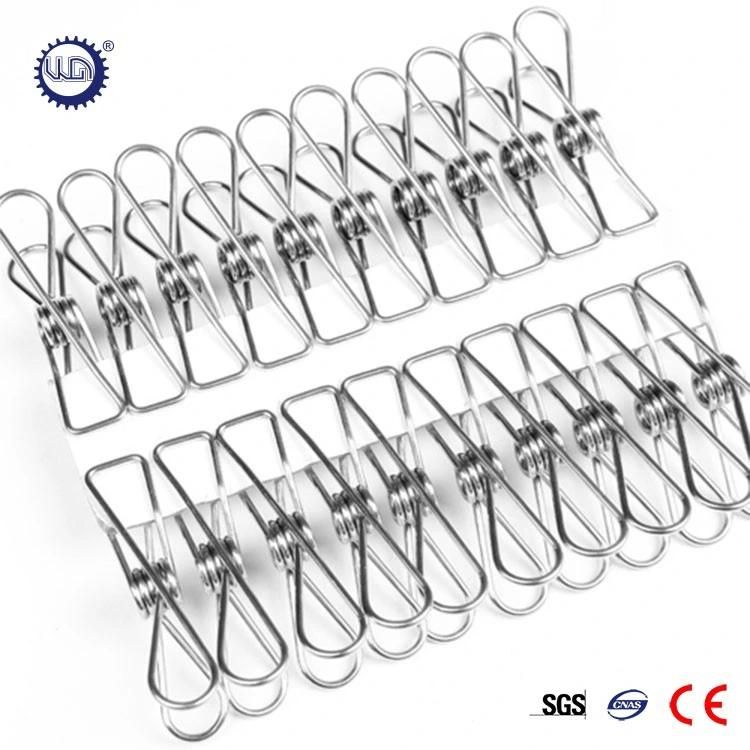

Machine and product show:
