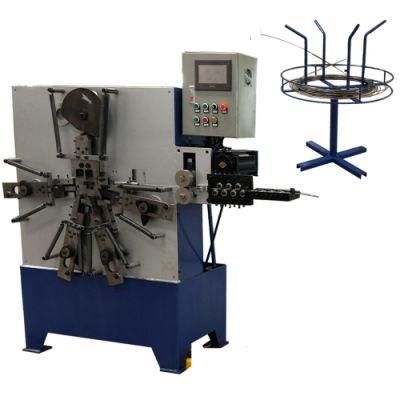

High Precision 10 Axes CNC Camless Spring Machine

Dongguan Xinsheng Hardware Machinery Co., Ltd.

Warranty：1 Year
Certification：CE
After-Sales Service Provided：Engineers Available to Service Machinery Overseas
Voltage：220V,380V,440V,415V,Customized
Application：Wire Forming
Control System：CNC Control

Base Info

Advantage：Powerful Function
Machine Name：Multi-Axis CNC Wire Bending Machine
Transport Package：Standard Wooden Box
Trademark：WG
Origin：Guangdong, China (Mainland)

Description

Basic Info.

Advantage Powerful Function Machine Name Multi-Axis CNC Wire Bending Machine Transport Package Standard Wooden Box Trademark WG Origin Guangdong, China (Mainland)

Product Description

Technical Parameter

Model		GT25-10
Line Diameter	mm	0.2-2.5
Max Line Feeding Value	mm	10000
Min Line Feeding Value	mm	0.01
Max Line Feeding Speed	m/min	120
Max Line Length		Unlimited
Axis		10
Total Power of Servo Motors	kw	10
Input Power	v/hz/ph	380/50/3
Control system		Made in Taiwan
Program Storage	plus	3000
Air Pressure	kg/cm2	5~6
Probe Number		3
Overall length	mm	1200
Overall width	mm	1250
Overall height	mm	1760
Weight	kg	980

SPECIFICATIONS:

1) Flexible external twisting head with faster speed and more twisting angle.
2) Adopting Japanese Sanyo Denki servo motor and Taiwanese controller screen display.
3) Camless design, flexible in adjusting and great in precision.
4) Running in a high automatization and intellectualization, no pollution.
5) Bilingual interface, easy to operate.

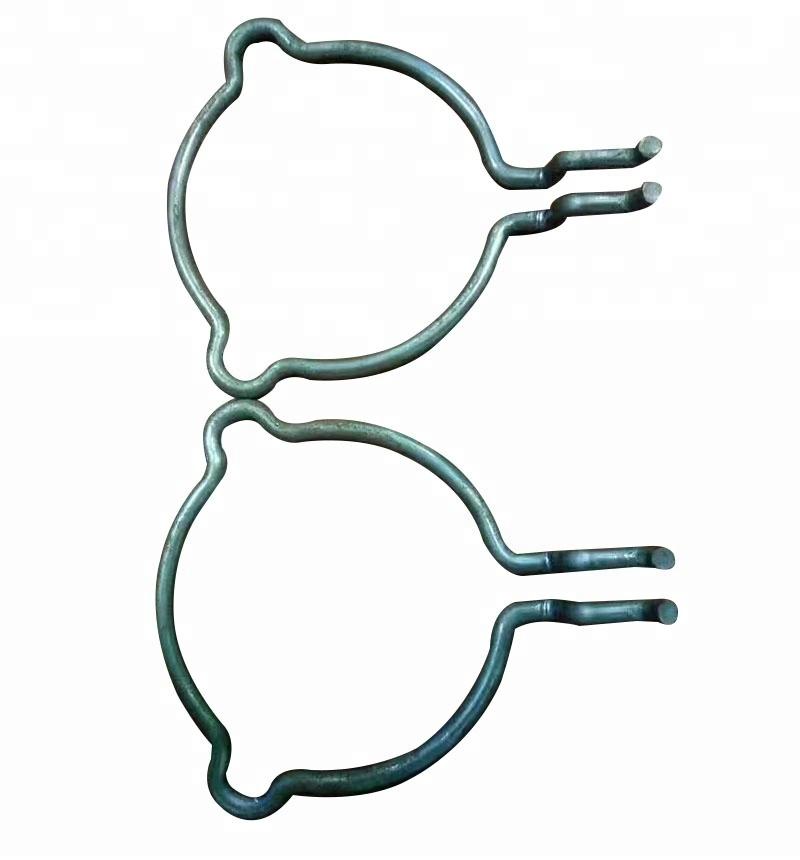

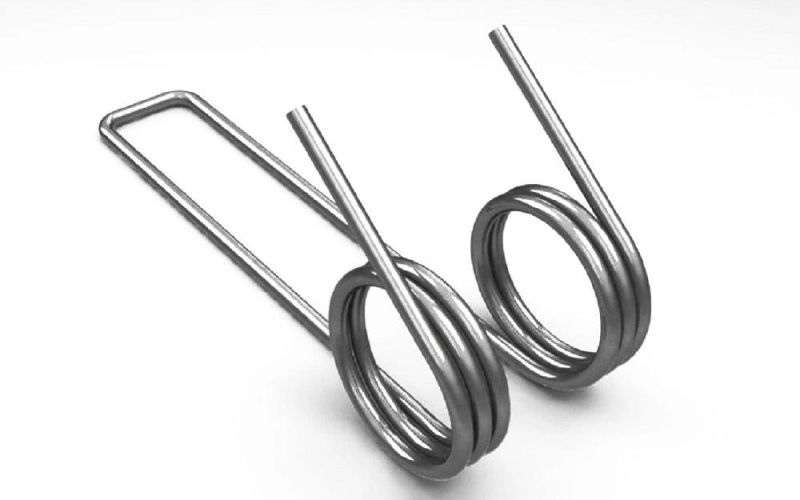

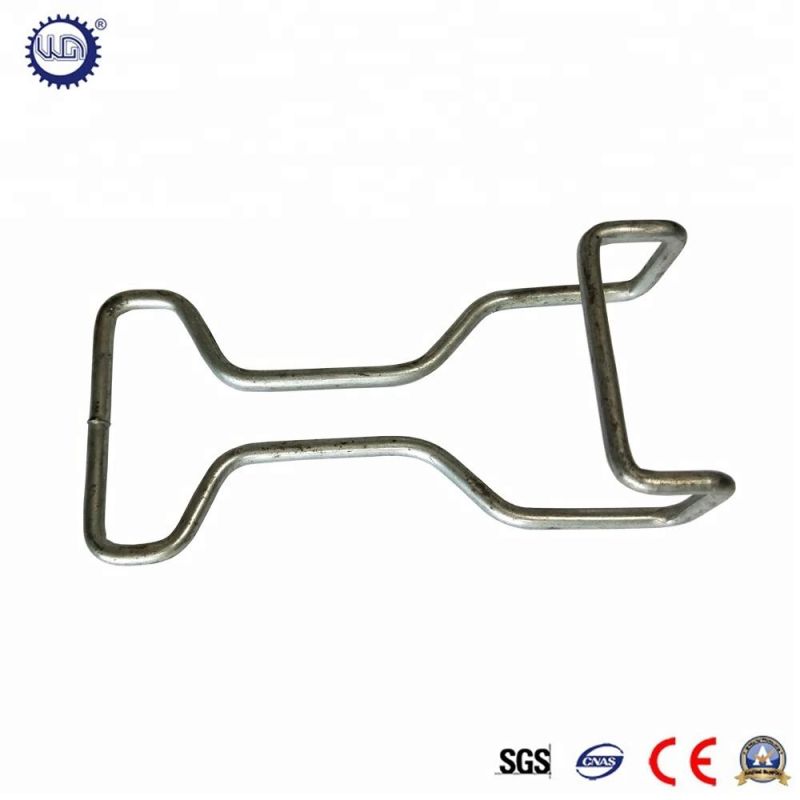

Product Images
High Precision 10 Axes CNC Camless Spring Machine
