• Model NO.：38NCB
• Type：Pipe and Tube Bending Machine
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Extra Function：1d Bending, Cutting
• Bending Theory：Cold Bending
• Applicable Pipe Shape：Round, Rectangle, Square, Oval, Solid Bar, Profil
• Cooling System：Water Cooling,Fan Cooling
• Transport Package：Iron Frame
• Specification：GM-38NCB
• Trademark：GMACC
• Origin：China
• HS Code：8461500090
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 38NCB Type Pipe and Tube Bending Machine Application Wheelbarrow, Wheelchair, Boiler, Automobile Extra Function 1d Bending, Cutting Bending Theory Cold Bending Applicable Pipe Shape Round, Rectangle, Square, Oval, Solid Bar, Profil Cooling System Water Cooling/Fan Cooling Transport Package Iron Frame Specification GM-38NCB Trademark GMACC Origin China HS Code 8461500090 Production Capacity 5000PCS/Year

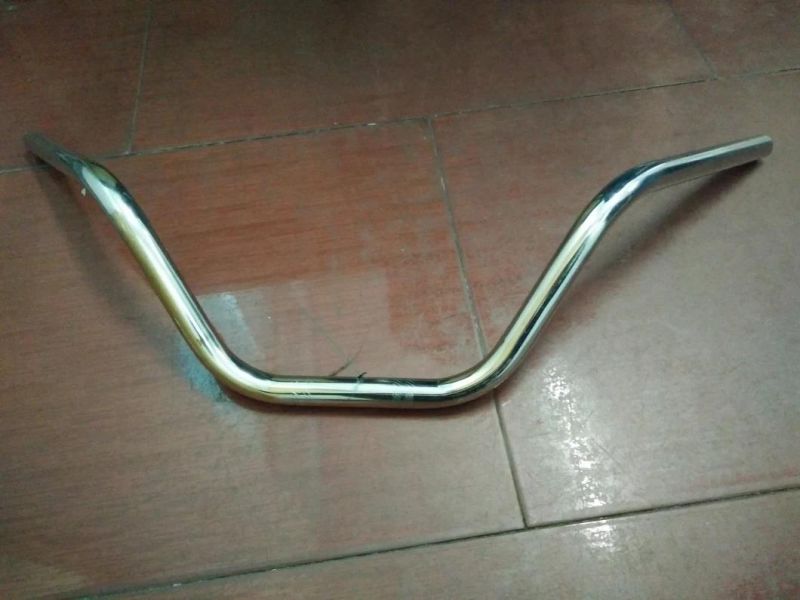

Product Description

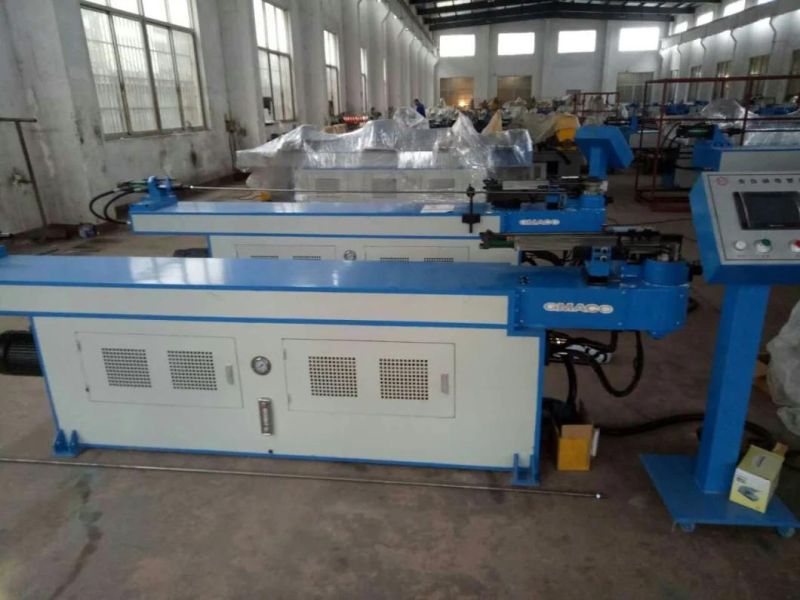

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-38NCB

• Machine Characteristic

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

• Main Technical Parameter



Name	Unit	Parameter
Mild steel round tube	mm	38*2
Stainless Steel	mm	32*2
Light alloy annealed round tube	mm	40*3
Mild steel square tube	mm	30*30*2
Mild steel rectangular tube	mm	35*20*2
Mild steel round solid bar	mm	16
Mild steel square solid bar	mm	15*15
Min. bending radius	mm	20
Max. Bending radius(Standard)	mm	200
Max. Bending Angle	°	190°
Through Effective Distance	mm	3000
Bending Speed(Max.)	°/sec	60
Bending angle Precision	°	±0.10
System Motor Power	KW	4
Hydraulic Pump Volume	L	17
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	3200*700*1300
Machine Weight	T	About 1.5

• Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(BEIDE)or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Oil tube	Zhejiang
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Contactor	Taiwan SHILIN(Imported)
Transformer	Wuxi XINYU

contact person:Ms Georgina Huang
