Hydraulic Carbon Steel Pipe Bending Machine/Tube Bender (GM-SB-76NCB)

Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：2-year
  • Condition：New

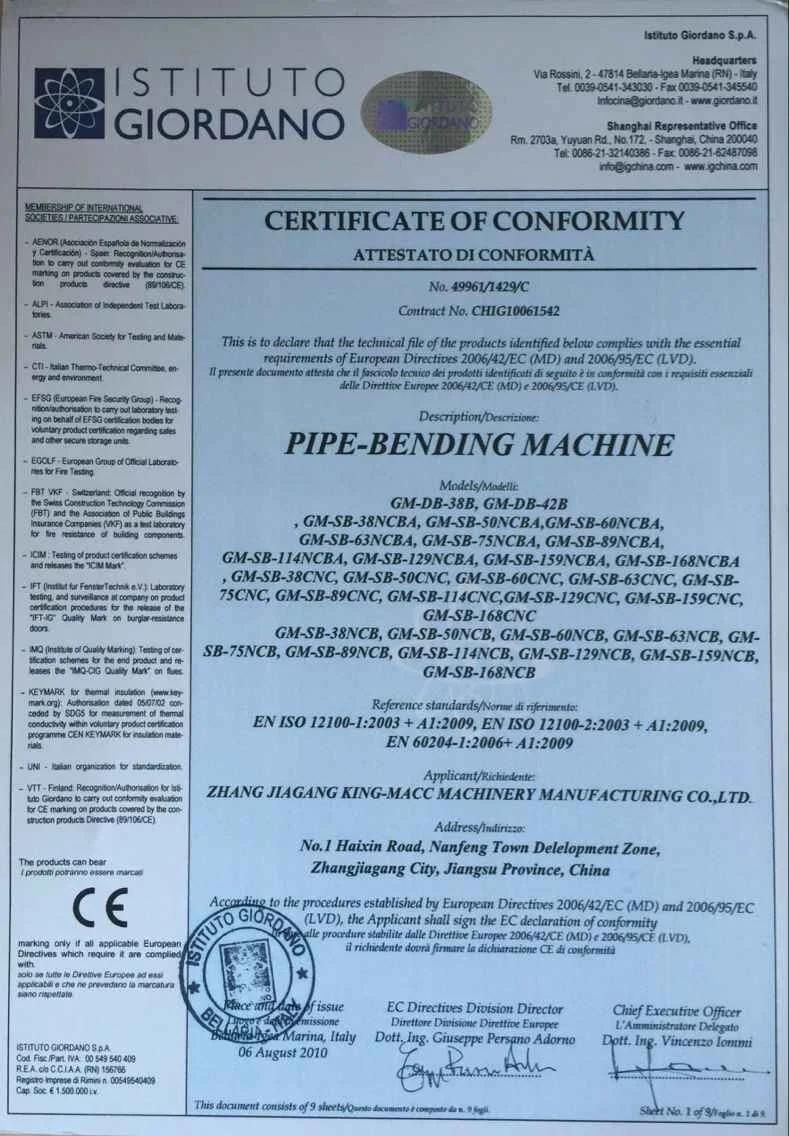

  • Certification：ISO 9001:2000, CE, UL
  • Automation：Semi-Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：GM-SB-76NCB
  • Type：Pipe and Tube Bending Machine
  • Certificate：ISO9001: 2000
  • Applicable Material：S. S, M. S., Copper, Aluminium, Alloy, Galvanized
  • Applicable Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
  • Bending Drive：Hydraulic
  • Technical：Cold Bend
  • Transport Package：Iron Frame,Wooden Case
  • Specification：CE
  • Trademark：GMACC
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：5000PCS,Year

Description

Basic Info.

Model NO. GM-SB-76NCB Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material S. S, M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Bending Drive Hydraulic Technical Cold Bend Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-76NCB
  • Machine Characteristic
Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

  • Main Technical Parameter
NameUnit Parameter
Max. Bending Capacitymm¢76*5
Bending Radius Rangemm30-350
Max. Bending Angle° 190°
Though Effective Distancemm3800
Bending Speed°/sec30
Bending Precision°±0.10
System Motor PowerKW7.5
Oil Pump Delivery VolumeL23
Max. PressureMpa16
L*W*H (Packaging Dimension)mm4800*1200*1350
Machine WeightTAbout 3.5
  • Configuration of Hydraulic and Electronic Control System
NameManufacturer
Hydraulic MotorGermany Siemens(Beide) or Runmali
Hydraulic PumpWuxi Tuoli
Hydraulic ValveJapan Yuken(Imported)
Oil way BoardTaiwan Shanghong (Imported)
CylinderShanghai Qifan
Touch screenTaiwan Weinview(Imported)
PLCJapan Mitsubishi(Imported)
Angle controllerJapan Nemicon(Imported)
Switch powerTaiwan Mingwei
ContactorGerman SCHNEIDER
Transformer Wuxi Xinyu

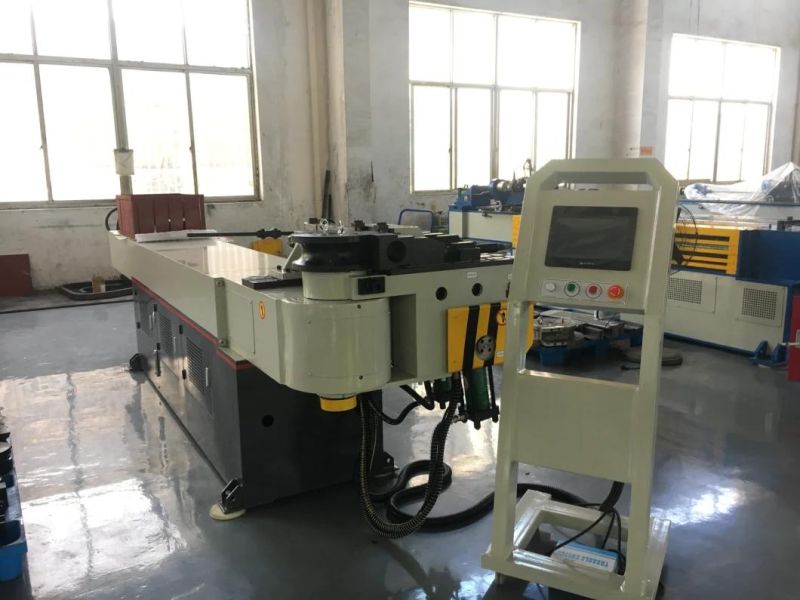

Hydraulic Carbon Steel Pipe Bending Machine/Tube Bender (GM-SB-76NCB)
