• Type：Swing Beam Shear
• Control System：Estun E21s Nc Control
• Key Selling Points：Multifunctional
• Color：Grey
• Max. Cutting Thickness (mm)：4
• Dimension(L*W*H)：3840*1610*1620mm
• Voltage：380V,220V,400V
• Max. Cutting Width (mm)：3200
• Power (Kw)：7.5
• Transport Package：Anti-Rust Oil and Plastic Cover
• Specification：CE
• Trademark：ZYMT
• Origin：Anhui, China
• HS Code：8462319000
• Production Capacity：100 Set,Sets Per Month

Product Description

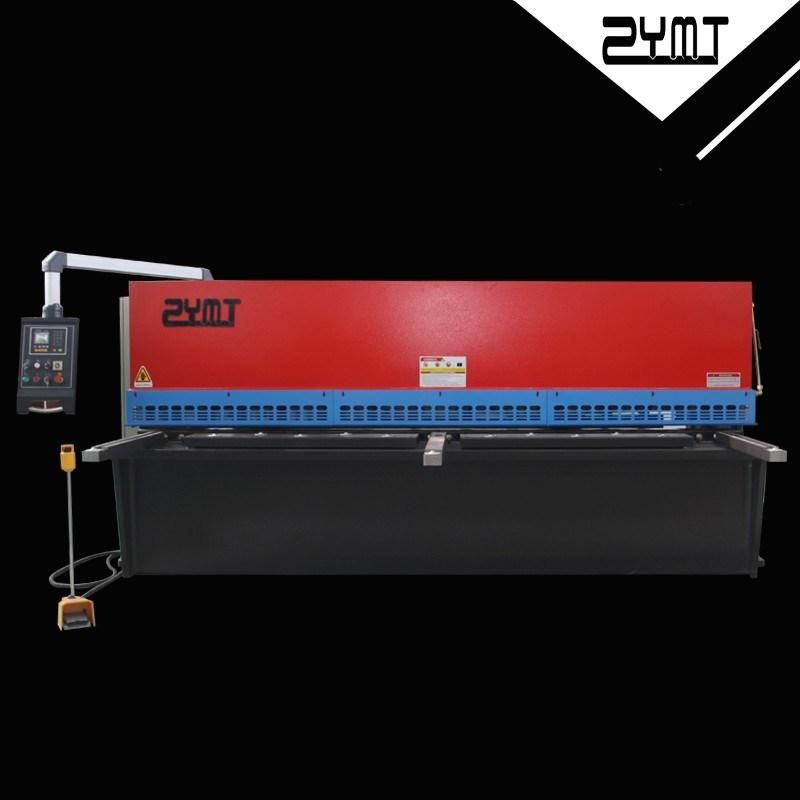

High Quality Machine Made in China of Hydraulic Guillotine Shearing Machine

Fully steel welded structure, with excellent rigidity and stability;

Assisting blade pedestal on worktable is convenient for micro adjustment;
Support ball is provided on worktable convenient operating for rolling plate;
Provided with counting function for shearing to decrease the numerous artifical counting;
Advanced hydraulic integrated system is employed and the pipeline connection is minimized to ensure the system reliability
and safety;
International standard electrics and switchs;
Front arms with ruler fixed on worktable;
Blades gap adjustment by hand wheel;
Motorised back gauge, reduce speed through gear;
Can euip kinds of NC controllers: Estun E21S / E200S, Delem DAC310, DAC360, Maper HT071, Elgo P40 ect.Detailed Images

Worktable

Worktable installed balls for easy transfer of metal sheets.
Front supports with measure ruler.

Standard NC controller

E21s from Estun China (It's the sole agent of Holland company in China)

Back sliding plate

Equipped back sliding plate for transfer the metal sheets after cutted.

Main motor, pump and valve

Siemens main motor German brand.

Sunny pump from USA.

Rexroth valve German brand.

Back gauge

Equipped ball screw and sychronised belt for high position accuracy.

Electrics

Schneider electrics Franch brand.

Inverter Jracorive brand Shanghai, China

Optional controllers

E21S (standard) Estun China

160x160 LCD display
Backgauge control
Control for general AC motors

Frequency inverter
Intelligent positioning
Stock counter
Program memory of up to 40 Programs, up to 25
Steps per program
One side positioning
Retract function
One key backup / restore of Parameters
mm / inch
Chinese / English

E200-S Estun China

Color LCD display
Backgauge control
BUS mode control servo system
Intelligent positioning
Stock counter
Program memory of up to 40 programs,
up to 25steps per program
One side positioning
Retract function
One key backup / restore of parameters
mm / inch
Chinese / English

E210 Estun China

Program memory up to 100 programs, 25 steps per
program
BUS mode control servo system
Backgauge, cutting angle and cutting gap control,
Stroke length limitation
Machine movement logic control
Relative position program
Stock counter, one side positioning
Retract function,
Flexible I/O configuration
mm/inch
Chinese/English

Delem DAC310 from Holland

Servo Control technology

Bright LCD display, 128X64 pixels

Back gauge, Gap or Angle control

Stroke length limitation

Actual and programmed position visualisation

Elgo P40 from Germany

LCD Display
Simple handling
Program memory
Digital outputs
Analogue output
Single or Two Axis-Controller
Analogue or digital outputs for
1 - 3 speed operation
16 free programmable digital in-/outputs
(optional 8 digital in-/outputs)
Program memory for up to 1000 sets

Maper HT071 from Italy

99 programs, 20 steps for each program

Work piece counter

Working time display

Inch/Metric

Main paramtersOur Company

The Real Top Manufacturer in China

Maanshan Middle Asia Machine Tools Manufacture Co., Ltd, today is placed as a professional leading manufacturer and global supplier of sheet metal working machinery specialized in the production of all types of hydraulic press brakes (Sychronized/Conventional), hydraulic guillotine shearing machines & hydraulic swing beam shearing machines (CNC/NC).


ZYMT 's registered capital is around USD 860,000.00, occupy 100,000.00 square meters with a production workshop of 50,000.00 square meters, making it one of Chinese largest facility for professional sheet metal fabrication machinery. The total workforce at ZYMT is currently numbered at 450 employees and is composed of highly trained and qualified machine operators and assembly technicians supported by a staff of experienced engineers and designers.


All the ZYMT products are manufactured with the Chinese AAA level good standardization and accredited for the ISO 9001:2008 and CE Certification is optional. In the past years ZYMT has progressed to become a major exporter of sheet metal machineries to the world markets with customers located in all the machine tools consuming countries.


ZYMT is currently represented in over 60 countries and regions worldwide through appointed dealers.


Here,with a long and strong engineering experience behind, ZYMT wishes to present itself as a quality-conscious, professional machinery building company serving the industry.


Certifications

Our CE certification is certificated strictly by Safenet company from UK.

ISO certification certificated by Fangyuan


Packing & Delivery

With more than 10 years exporting experience, we are so skilled for loading containers and packing the machines in container for safety. Each machine use min. 6mm dimeter steel rope to fix the four angles with the container, to avoid the machinery equipment move in the container.

Our Service



24 hours telephone line is available for any question.



Experienced service technician team is available.



Support in hard work solution.
