• Model NO.：MB8-100T,4000
• Type：Cnc Bending Machine
• Transport Package：Standrad
• Trademark：ysdcnc
• Origin：Nanjing
• HS Code：8462219000
• Production Capacity：600 Sets,Year

Basic Info.

Model NO. MB8-100T/4000 Type Cnc Bending Machine Transport Package Standrad Trademark ysdcnc Origin Nanjing HS Code 8462219000 Production Capacity 600 Sets/Year

Product Description

MB8 China factory metal brake for hydraulic press machine

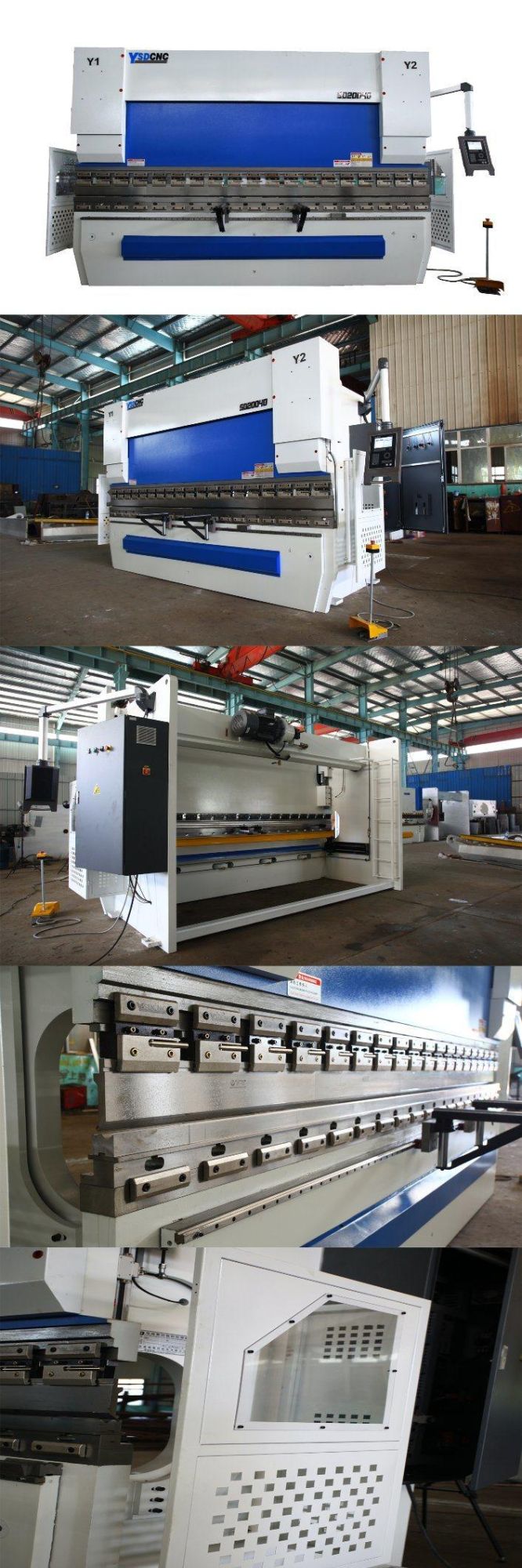

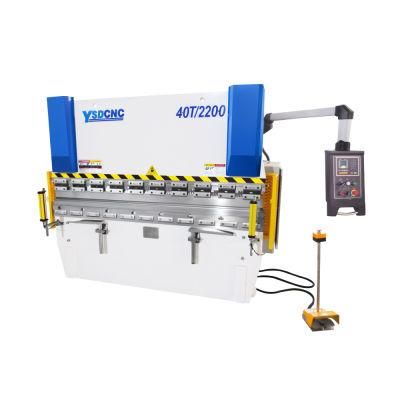

Electro-hydraulic servo CNC Press Brake


Nanjing Shanduan CNC Machine Tool Co., Ltd is one of the Top 3 press brake and shearing machine in China, which specializing in manufacturing and marketing of press brake,shearing machine,press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine;folding machine,plasma cutting machine, power press,ironworker,hydraulic notching machine, beading machine,flange forming machine,shearing machine & press brake,Blade/Mold, etc.



Company Name (manufacturer):     Nanjing Shanduan CNC Machine Tool Co., Ltd.

Brand:    YSDCNC

Address: MINGJUR INDUSTRIAL CONCENTRATION DISTRICT,SHIQIU TOWN,LISHUI AREA,NANJING,JIANGSU

Tel:+86 025-57262305 Phone:+86 18851629789

Website: www.ysdcnc.com

1.  Main Features:
Brand-new industry design combined with modern aesthetic concept, high-quality production technology with simple appearance.
Latest high-frequency responding hydraulic control technology, faster, more efficient and higher accuracy.
Heat treatment of the machine frame, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of MB8 series Press Brakes.
Optimal ratio of parameters and top-level core configuration ensure stable performance, and easy operation.
MB8 standard 2axis backgauge system, as for complicated shape work piece, 4 or 5 axis backgauge system and corresponding dies are available for your option.
Press Brake using fully closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to NC system by bilateral gratings, then NC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider ( Y1,Y2 ) running on the same frequency, maintaining the parallel state of the worktable.
According to process state of sheet metal, CNC system can automatically control the table deflection compensation value resulting in uniform length and angle of all workpieces.
The use of hydraulic deflection compensation gives access to uniform full length workpieces. Hydraulic deflection compensation consists of a set of oil cylinders in the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative position relations with slider keep unchanged. Compensation values are subject to plate thickness and properties of material to be cut.


2. Main Configuration:
CNC system adopts Holland DELEM DA52S
Grating ruler controls depth of Y1 and Y2 axis(y1/y2-axis 0.01mm)
Servo motor servo drives control X axis(X, R-axis 0.01mm), stop finger can be easily moved along the cylindrical guide.
Keep the accuracy between HIWIN ball screw and linear guide rail within 0.01mm
Front supporter can be adjusted along the linear guide rail in the worktable direction
Germany Rexroth fully closed-loop electro-hydraulic servo synchronously controls the system
Germany EMB oil tube connectors
Germany Siemens main motor
France Schneider Electrics
Hydraulic and electrical overload protection
Upper are mechanical fast pinching dies. Lower are double-V easy changeable dies

3. Safety Standard:

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

Front finger protection device ( safety light curtain )
South Korea KACON pedal switch ( 4 security grade )
Back metal safeguard, CE standard
Safety relay monitors completed with pedal switch, safety guard
Safety standard(2006/42/EC)

4. Holland Delem DA52S Controller:

8″ broadband color display
Max 4-axes control (Y1, Y2, two additional axes )
266MHZ processor, memory capacity of 64M
Die library, 30 upper dies, 30 lower dies
USB memory interface, RS232 interface
Real-time Windows operating platform to ensure the stability of the operation, support instant shutdown
One-page parameters for rapid editing, navigation shortcut keys
Automatically calculate deflection compensation value
Micro switch panel, data editing
Automatically calculate the bending pressure and die safety region
Online operation analysis tool, Diagnostic Dashboard, angle calibration database









Major Import configuration list:


NO	UNIT	NUMBER	MARK
1	CONTROL SYSTEM	1set	DA-52S(DELEM)
2	SEVRO MOTOR	1set	Japan yaskawa
3	HYDRAULIC SYSTEM	1set	HOERBIGER, Germany.
4	Ball screw	2sets	Taiwan HIWIN
5	Linear guide	2set	Taiwan HIWIN
6	joint	1set	German EMB
7	Sealing ring	1set	FIETZ, Japan, VALQUA, Japan.
8	Grating ruler	2set	Italian GIVI
9	Major electrical components	1set	Import or joint venture

Random tools/documents:


Serial No.	Name	Quantity	Remark
1	Main unit	1	Including one set of upper and lower die, front plate holder and foot switch
2	Grease gun	1
3	Button key	2
4	Key to door lock	2
5	Product instructions	1
6	certificate of quality	1
7	Packing list	1
8	Foundation bolt	4 sets	Including nuts and washers
9	O-type sealing ring	16

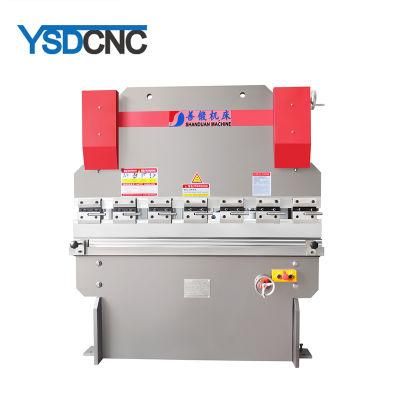

 Electro-hydraulic servo CNC Press Brake
