• Model NO.：WC67K-63T,2500
• Type：Press Brake
• Transport Package：Standrad
• Trademark：ysdcnc
• Origin：Nanjing
• HS Code：8462219000
• Production Capacity：600 Sets,Year

Basic Info.

Model NO. WC67K-63T/2500 Type Press Brake Transport Package Standrad Trademark ysdcnc Origin Nanjing HS Code 8462219000 Production Capacity 600 Sets/Year

Product Description

PBT cheap price CNC hydraulic press brake for sale

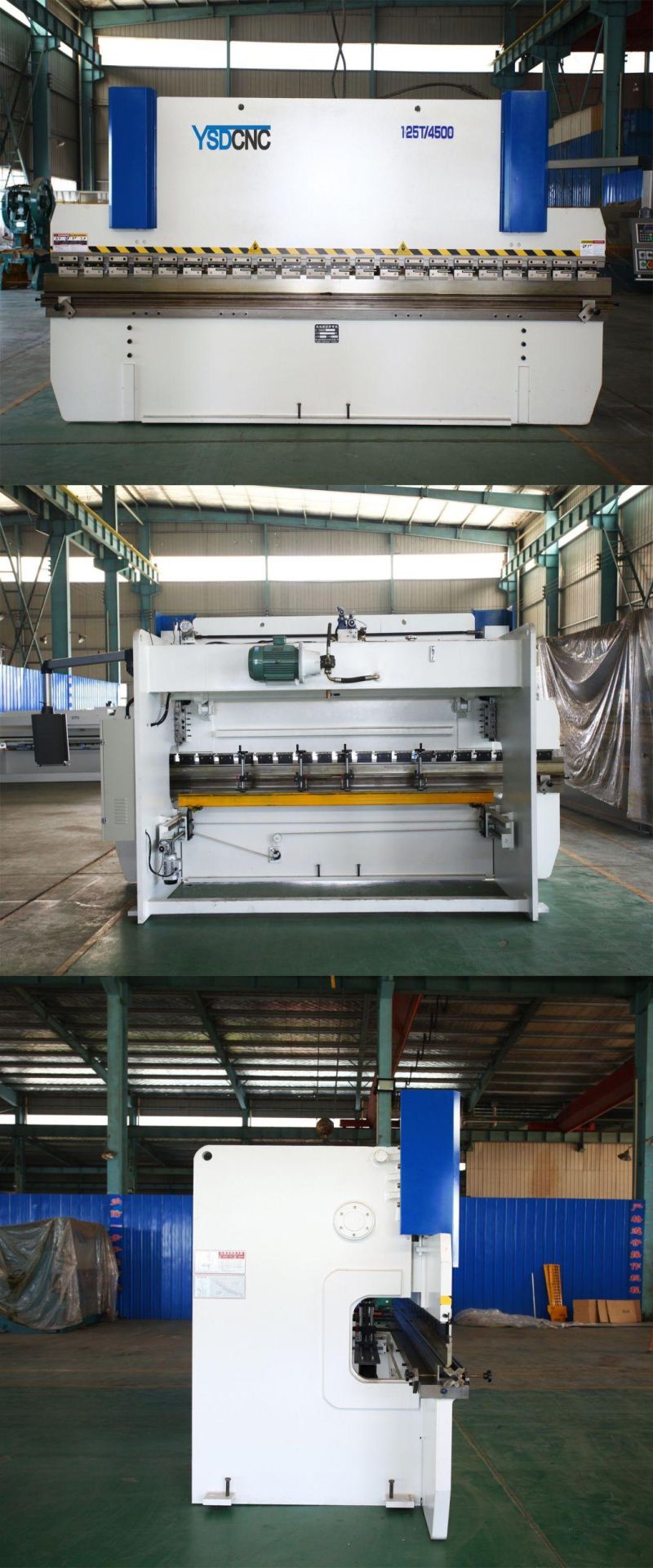

 servo CNC Press Brake

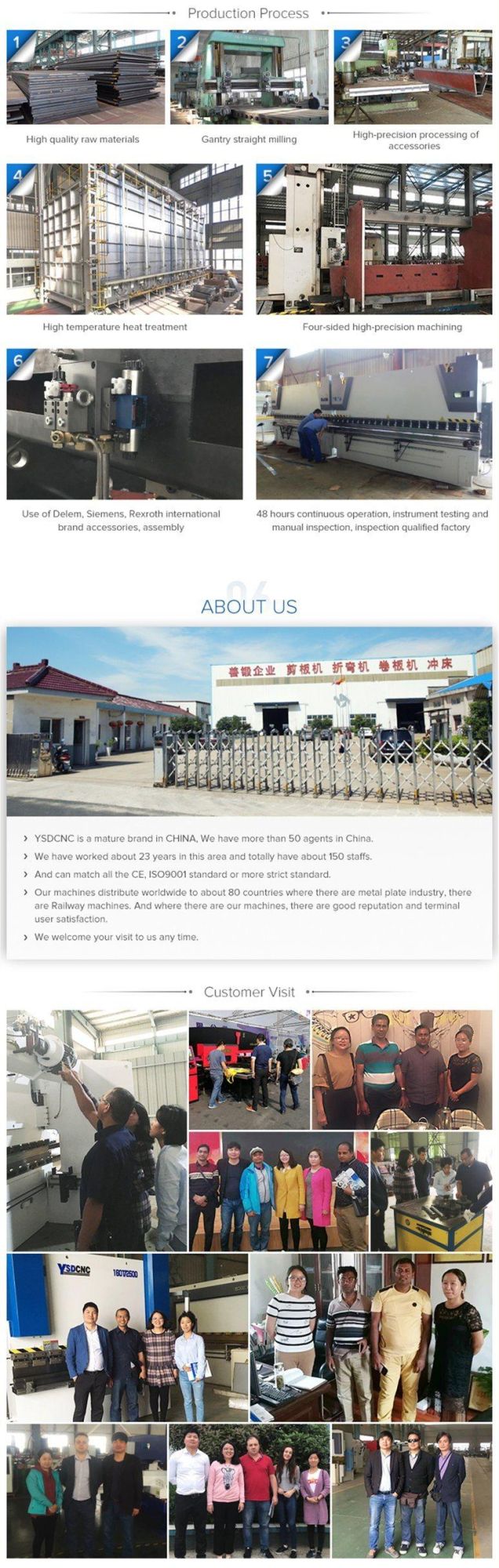

Nanjing Shanduan CNC Machine Tool Co., Ltd is one of the Top 3 press brake and shearing machine in China, which specializing in manufacturing and marketing of press brake,shearing machine,press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine;folding machine,plasma cutting machine, power press,ironworker,hydraulic notching machine, beading machine,flange forming machine,shearing machine & press brake,Blade/Mold, etc.



Company Name (manufacturer):     Nanjing Shanduan CNC Machine Tool Co., Ltd.

Brand:    YSDCNC

Address: MINGJUR INDUSTRIAL CONCENTRATION DISTRICT,SHIQIU TOWN,LISHUI AREA,NANJING,JIANGSU

Tel:+86 025-57262305 Phone:+86 18851629789

Website: www.ysdcnc.com

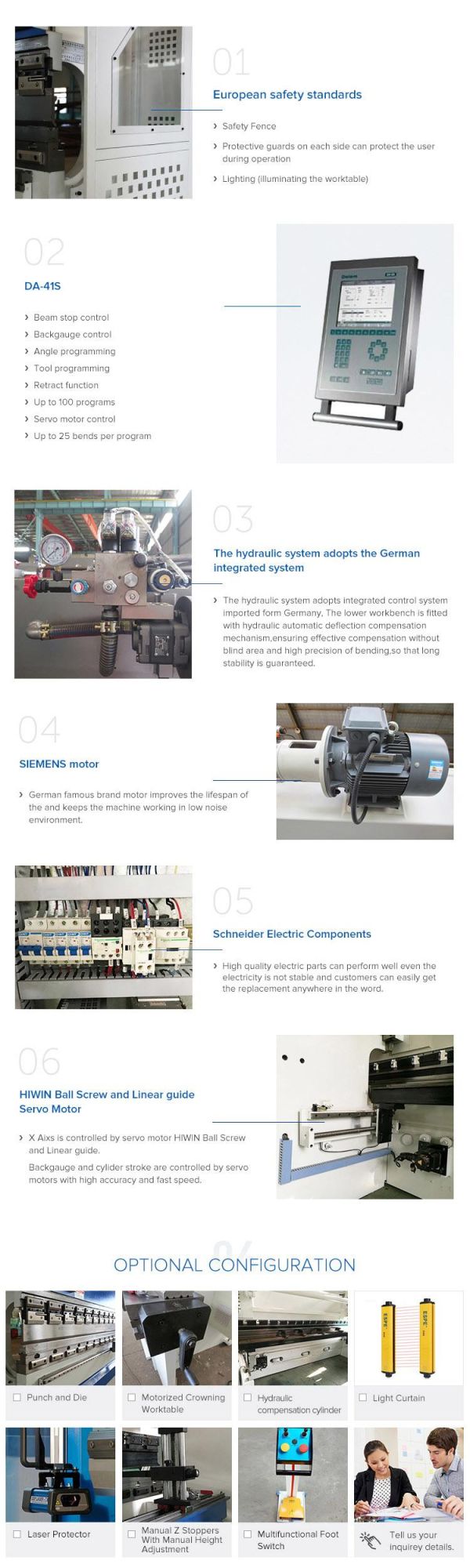

1. Main Features:
Streamlined design originated from EU, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending
Hydraulic synchronous control and CNC programmable controller guarantee precise repeatability and easy use.
Integrated hydraulic system ( Germany Bosch Rexroth ) can be automatically switched to slow bending status.
X ,Y-axis realize accurate positioning function through CNC CybTouch 6 controller programming and servo motor.
Latest servo response hydraulic control technology, the machine tool is more stable and reliable.
Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation
PBT series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done

2. Main Configuration
Touch 6 controller
Controller controls and adjusts Y-axis and X-axis
Servo drive and control positioning of X-axis and Y-axis
Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection
Upper and lower dies(86°, R0.6mm, material: 42CrMo)

3. Safety Standard:
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

Front Finger protection ( safety light curtain )
South Korea KACON pedal switch ( safety grade 4 )
Back metal safeguard, CE standard
Safety relay monitor pedal switch, safety protection
Safety standard ( 2006/42/EC)


4. CybTouch6 controller

Large, vivid and high-contrast fully touch screen.
Simple pages, clear display, large keys.
Very simple single bends with EasyBend page.
Complete programming allows efficient mass-production of parts with multiple bends.
Online help and warning pop-ups make it a very user-friendly software.
Available in many languages.
Comfortable wireless software updating and data backup using PC or Notebook.
















Major Import configuration list:


NO	UNIT	NUMBER	MARK
1	CONTROL SYSTEM	1set	DA-41S(DELEM)
2	SEVRO MOTOR	1set	Japan yaskawa
3	HYDRAULIC SYSTEM	1set	HOERBIGER, Germany.
4	Ball screw	2sets	Taiwan HIWIN
5	Linear guide	2set	Taiwan HIWIN
6	joint	1set	German EMB
7	Sealing ring	1set	FIETZ, Japan, VALQUA, Japan.
8	Major electrical components	1set	Import or joint venture

Random tools/documents:


Serial No.	Name	Quantity	Remark
1	Main unit	1	Including one set of upper and lower die, front plate holder and foot switch
2	Grease gun	1
3	Button key	2
4	Key to door lock	2
5	Product instructions	1
6	certificate of quality	1
7	Packing list	1
8	Foundation bolt	4 sets	Including nuts and washers
9	O-type sealing ring	16

servo CNC Press Brake
