• Model NO.：CNC-250
• Suitable for：Carbon Steel
• Type：Cnc Bending Machine
• Transport Package：Wooden Box and Then in Container.
• Specification：7m³
• Trademark：YUGONG
• Origin：Henan, China
• HS Code：8462299000
• Production Capacity：30sets,Month

Basic Info.

Model NO. CNC-250 Suitable for Carbon Steel Type Cnc Bending Machine Transport Package Wooden Box and Then in Container. Specification 7m³ Trademark YUGONG Origin Henan, China HS Code 8462299000 Production Capacity 30sets/Month

Product Description

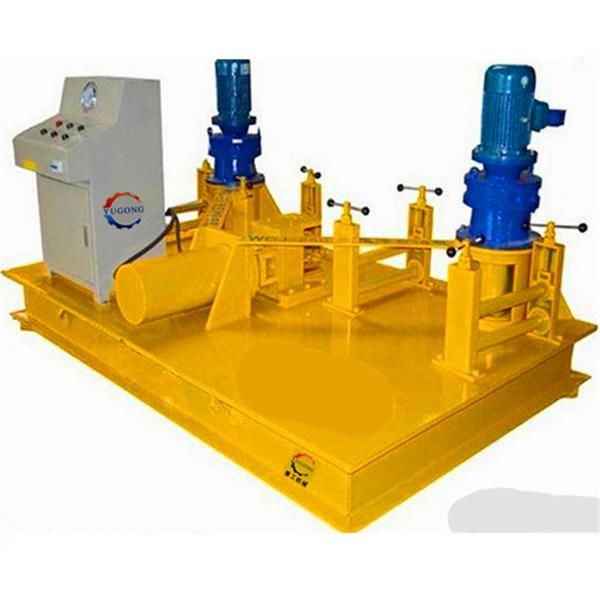

Auto I Beam Profile Metal Aluminum Steel Bending Machine


Cold bending machine mainly used in tunnels, subways, hydropower stations, underground caverns. By switching mold can do arched rolling, diameter changes, fixed-angle bending of U-shaped steel,I beam, H beam,Channel steel, Angle steel, Track steel, Square steel and Steel pipe or bar.
The Bending Machine for Steel increasing the bottom to ensure  there  is no  distortion  , two main wheels center distance can be adjusted to 2.1m  and 1.45m ,when it bend to smaller (machining 10-16) than usual ,main wheel is on the center of 1.45m.it is easy to change parts,does not need re-calibration.the user can  make a sliding platform on both ends of the machine parts to save cost.

Main Parameters

Model	YG-250	CNC-250
Material Specification	14-25 I-beam	14-25 I-beam
Cylinder advance speed	8-15 mm/s	3-3.5 mm/s
Roller rotation speed	-	7 r/min
Max pressure	25 Mpa	25 Mpa
Power	11kw	8.4 kw
Oil cylinder power	-	4 kw
Driving wheel power	-	2.2kw*2
Min bending radius	3m	3m
Dimensions	1800*1500*1500mm	2760*1639*1360mm
Weight	2200kg	2200kg

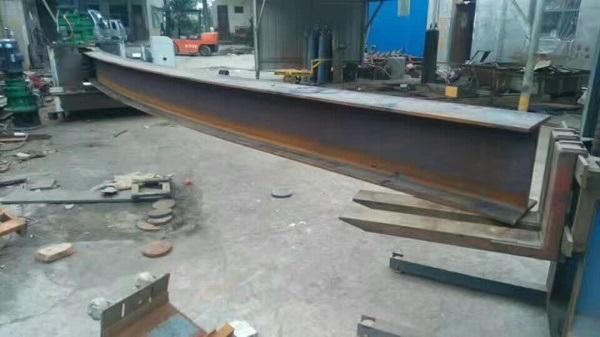

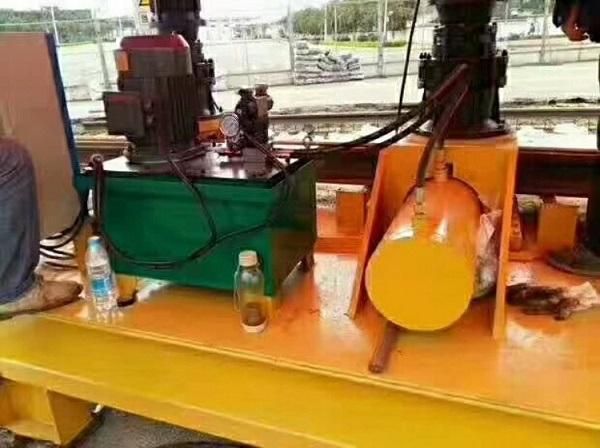

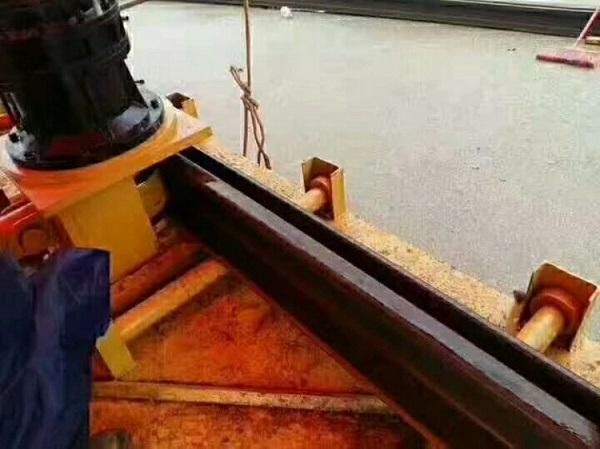

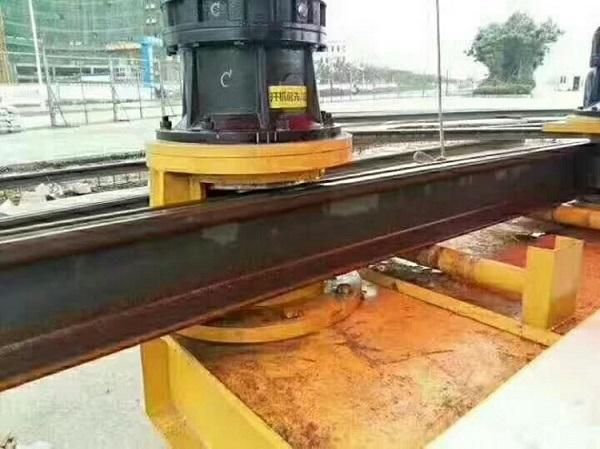

More pictues for your reference

Company Information:


Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.

We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
