Large Tunnel Arch Steel Cold Bending Machine
Henan Yugong Machinery Co., Ltd.- After-sales Service:Video Guidence
- Waterproof Rating:Paint
- Warranty:1-year
- Condition:New
- Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation:Automatic
Base Info
- Model NO.:YG-250,CNC-250
- Suitable for:Carbon Steel
- Type:Cnc Bending Machine
- Transport Package:Wooden Box and Then in Container.
- Specification:7m³
- Trademark:YUGONG
- Origin:Henan, China
- HS Code:8462299000
- Production Capacity:30sets,Month
Description
Basic Info.
Model NO. YG-250/CNC-250 Suitable for Carbon Steel Type Cnc Bending Machine Transport Package Wooden Box and Then in Container. Specification 7m³ Trademark YUGONG Origin Henan, China HS Code 8462299000 Production Capacity 30sets/MonthProduct Description

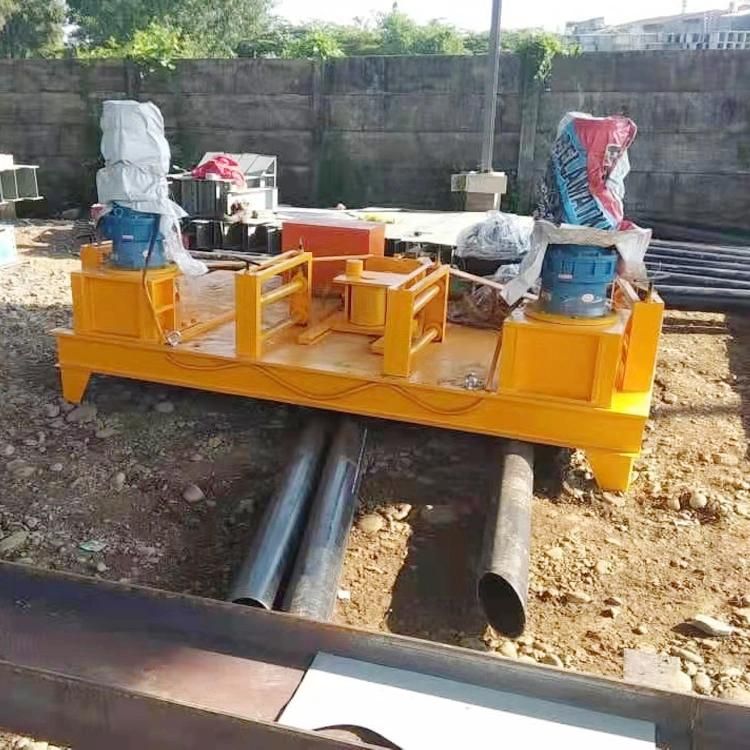

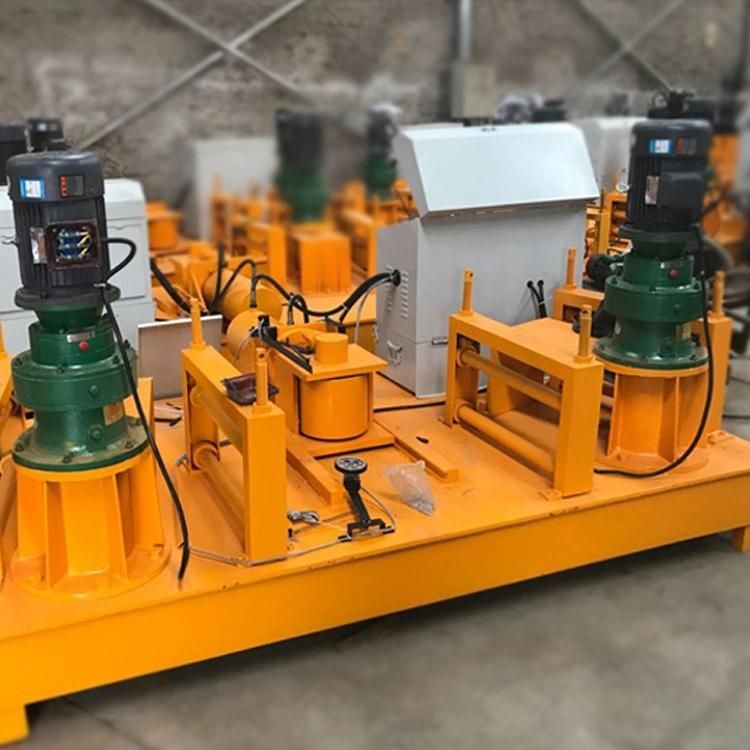

Large Tunnel Arch Steel Cold Bending MachineProduct Description
Cold bending machine mainly used in tunnels, subways, hydropower stations, underground caverns. By switching mold
can do arched rolling, diameter changes, fixed-angle bending of U-shaped steel,I beam, H beam,Channel steel, Angle steel,
Track steel, Square steel and Steel pipe or bar.
The Bending Machine for Steel increasing the bottom to ensure there is no distortion , two main wheels center distance
can be adjusted to 2.1m and 1.45m ,when it bend to smaller (machining 10-16) than usual ,main wheel is on the center of
1.45m.it is easy to change parts,does not need re-calibration.the user can make a sliding platform on both ends of the machine
parts to save cost.
Main Parameters
Model | YG-250 | CNC-250 |
Material Specification | 14-25 I-beam | 14-25 I-beam |
Cylinder advance speed | 8-15 mm/s | 3-3.5 mm/s |
Roller rotation speed | - | 7 r/min |
Max pressure | 25 Mpa | 25 Mpa |
Power | 11kw | 8.4 kw |
Oil cylinder power | - | 4 kw |
Driving wheel power | - | 2.2kw*2 |
Min bending radius | 3m | 3m |
Dimensions | 1800*1500*1500mm | 2760*1639*1360mm |
Weight | 2200kg | 2200kg |

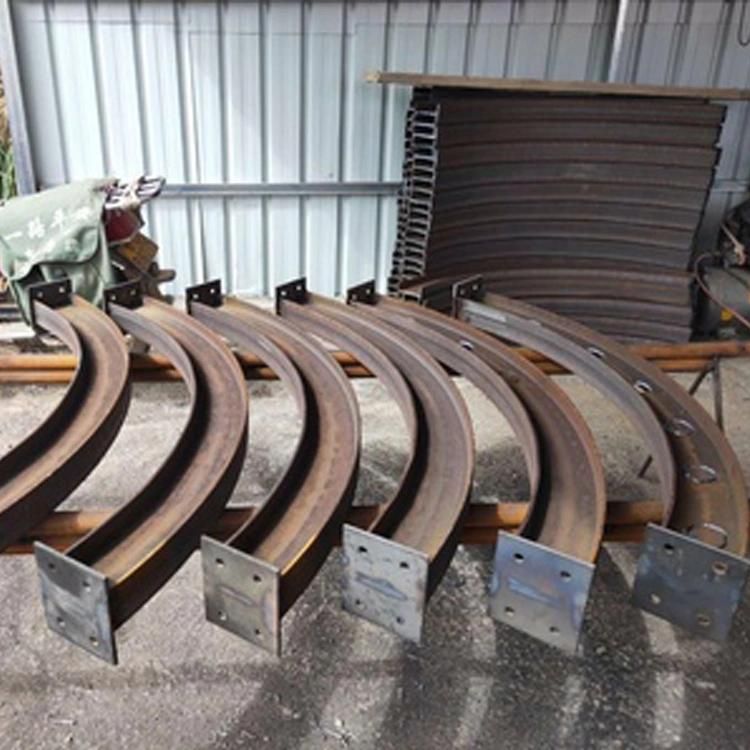

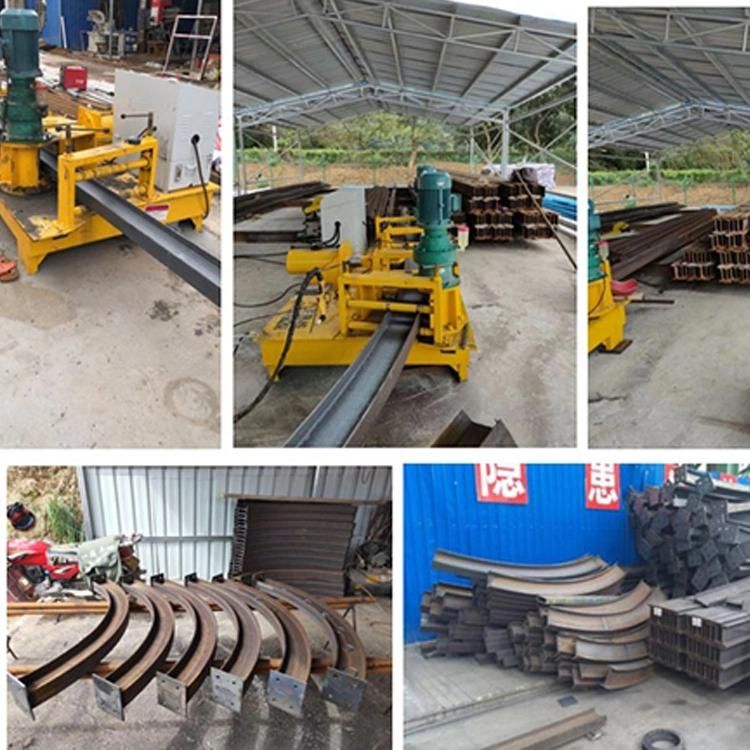

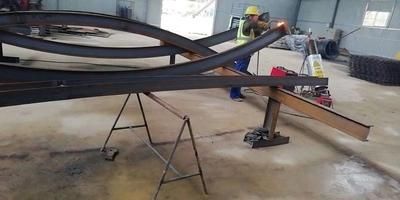

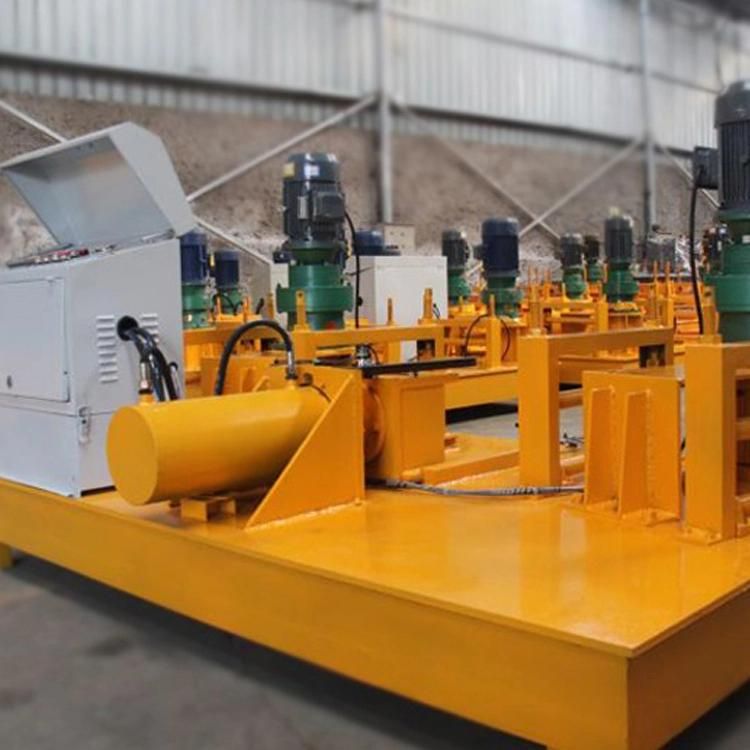

More pictues for your reference
Packaging & Shipping
1. Packaging: 1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.

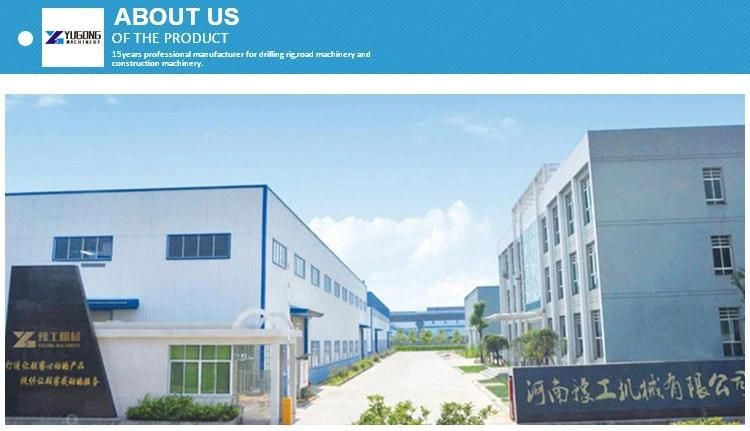

Company Information
