• Model NO.：W62K-3X2500
• Type：Press Brake
• Drive：Hydraulic
• Working table length：2500mm
• folding thickness：3mm
• Transport Package：Veneer Case
• Specification：CE STANDAR
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：200 Units,Month

Basic Info.

Model NO. W62K-3X2500 Type Press Brake Drive Hydraulic Working table length 2500mm folding thickness 3mm Transport Package Veneer Case Specification CE STANDAR Trademark HAVEN Origin China HS Code 8462 Production Capacity 200 Units/Month

Product Description

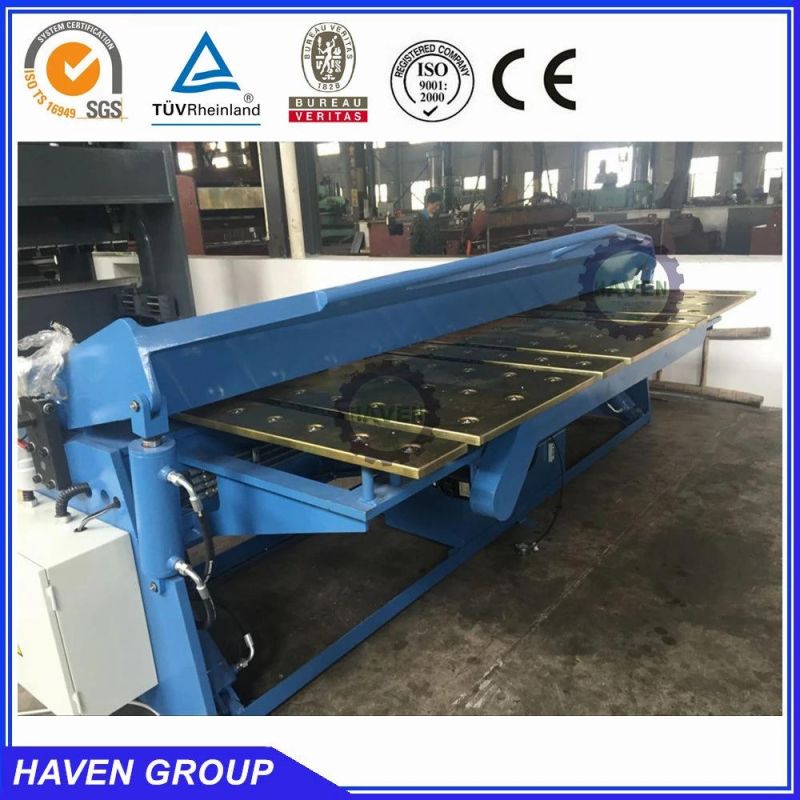

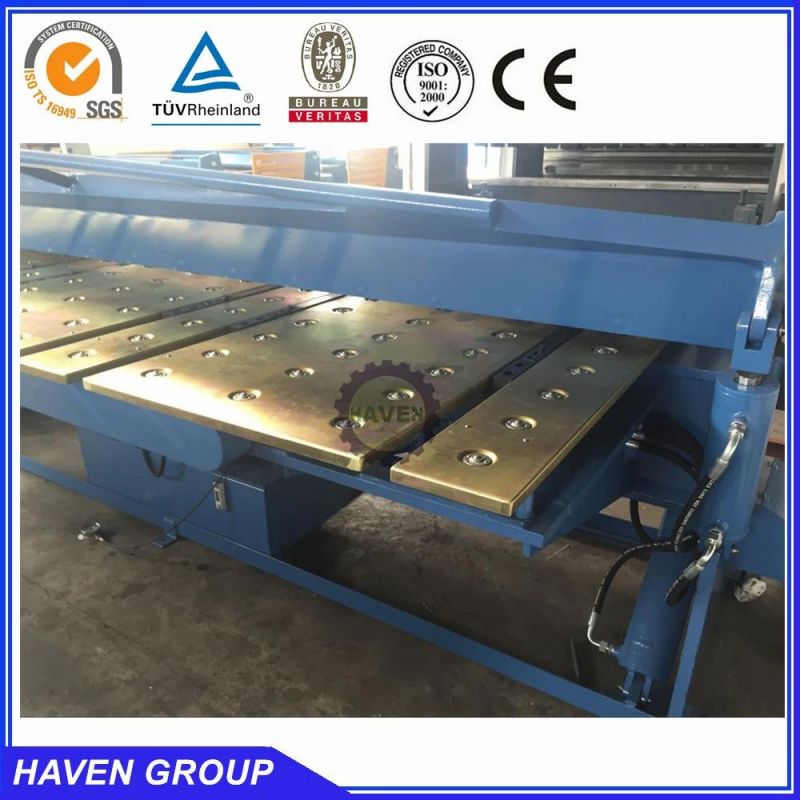

W62K serious of hydraulic folding machine/hydraulic folder/machine tool

W62K main functions:
High quality advanced machine with high quality;
Welded frame stressed relieved to reduce distortion, durable, rigid and difficult to deform;
Fully hydraulic controlled, quite and easy to operate
The pressing blade can be subsection, it is suitable for manufacturing box/pan type products;
The open height is 200mm;
The upper pressing blade can adjust the height automatically;
The working angle can be adjusted promptly;

W62K Main functions:
Full welded-steel plate construction. Stress relived to ensure continued high accuracy;
Machine is hydraulically powered;
Low energy consumption, easy to maintain and very durable;
Under acting die is fully adjustable with open height up to 110mm and suitable for producing disk, box like wokrpiece;
The bending angle and back gauge is controlled by numerical control system, rapidly and accurately

Model	W62Y-3x2500	W62Y-4.5x2500	W62Y-4x3100	W62Y-5x2000
Nominal pressure KN	1000	1000	1000	1000
Strokes   Min-1	14	14	14	14
Throat depth mm	200	200	200	200
Folding length mm	2500	2500	3100	2000
Folding thickness mm	0.5-3	4.5	4	0.5-5
Max angle of bending beam	110	110	110	0-125
Max lifting height of the upper beam	200	200	200	200
Motor power	5.5	5.5	5.5	5.5
Net weight kg	3500	3600	4300	2850
Dimension cm	330x100x140	360x106x200	420x106x200	310x106x200



Model No.	Working Table Length(mm)	Folding Thickness(mm)	Evolving angle of the ending	Max rift of the upper beam(mm)	Motor Power	Net Weight (kg)	PackingSize(cm)
W62K-3x2500	2500	3	120°	110	4	2750	370x164x165
W62K-3x3200	3200	3	120°	110	4	3350	440x164x165
W62K-4x2500	2500	4	120°	110	5.5	3250	375x164x165
W62K-4x3200	3200	4	120°	110	5.5	3950	445x164x165
