• Model NO.：WC67Y-400X4000
• CNC Type：E21, E200, Da41
• Normal Pressure：400-3000kn
• Transport Package：Veneer Box or Steel Pallet
• Specification：CE Standard, SGS, TUV
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：100unit,Month

Basic Info.

Model NO. WC67Y-400X4000 CNC Type E21, E200, Da41 Normal Pressure 400-3000kn Transport Package Veneer Box or Steel Pallet Specification CE Standard, SGS, TUV Trademark HAVEN Origin China HS Code 8462 Production Capacity 100unit/Month

Product Description

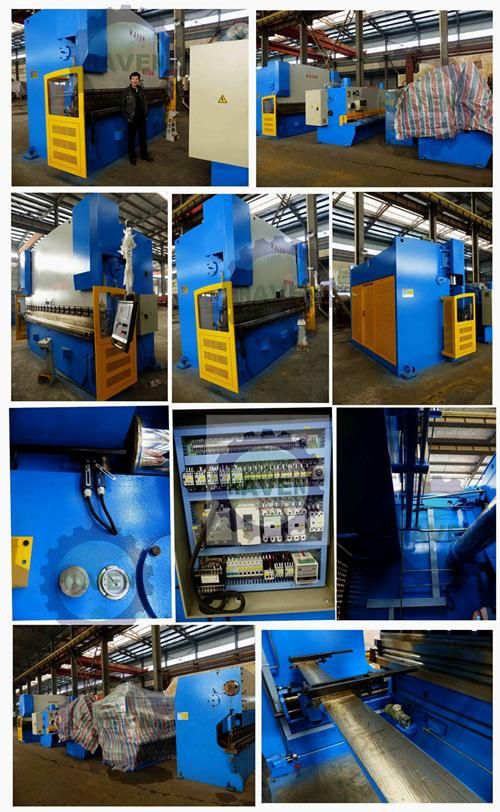

WC67Y-400X4000 Hydraulic Press Brake Machine, Steel Plate Bending and Folding Machine

Standard Facilities:
1. ESTUN E21 NC control + Frequency inverter
 2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5.  OMAGE Hydraulic valve
6.  SUNNY hydraulic pump
7.  Siemens famous brand motor
8.  Siemens or Schneider Electric parts
9.  Machine power is turn-off when the electric cabinet door opened
10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection
12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die
14. Back gauge beam is made of profile steel and liner guide
15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy
2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.


Main specification:

Model No.	Normal  Pressure  (kn)	Working  Table Length (mm)	Distance  Between  Housing	Throat  Depth  (mm)	Max . open  height  (mm)	Side  stroke  (mm)	Motor  Power  (kw)	Net  Weight  (kg)	PackingSize(cm)
WC67Y-40/2000	400	2000	1600	200	335	100	4.0	2800	210x111x199
WC67Y-40/2500	400	2500	2000	200	335	100	4.0	3500	260x111x199
WC67Y-63/2000	630	2000	1600	250	335	100	5.5	3800	210x129x219
WC67Y-63/2500	630	2500	2000	250	335	100	5.5	4200	260x129x219
WC67Y-63/3200	630	3200	2600	250	335	100	5.5	5200	330x129x230
WC67Y-100/2500	1000	2500	2000	320	335	100	7.5	6300	260x147x251
WC67Y-100/3200	1000	3200	2600	320	335	100	7.5	7000	330x147x252
WC67Y-100/4000	1000	4000	3200	320	400	150	7.5	8800	410x147x252
WC67Y-100/5000	1000	5000	4000	320	400	150	7.5	11800	510x147x275
WC67Y-125/2500	1250	2500	2000	320	400	150	7.5	7500	260x147x251
WC67Y-125/3200	1250	3200	2600	320	400	150	7.5	8200	330x147x252
WC67Y-125/4000	1250	4000	3200	320	400	150	7.5	9000	410x147x252
WC67Y-125/5000	1250	5000	4000	320	400	150	7.5	12500	510x147x280
WC67Y-125/6000	1250	6000	4500	320	400	150	7.5	16000	610x170x240
WC67Y-160/2500	1600	2500	2000	320	450	150	11	8500	260x150x253
WC67Y-160/3200	1600	3200	2600	320	450	150	11	10000	330x150x256
WC67Y-160/4000	1600	4000	3200	320	450	190	11	12000	410x150x273
WC67Y-160/5000	1600	5000	4000	320	450	190	11	15500	510x150x296
WC67Y-160/6000	1600	6000	4500	320	450	190	11	19000	610x179x273
WC67Y-200/3200	2000	3200	2600	320	460	190	11	13000	330x170x256
WC67Y-200/4000	2000	4000	3200	320	460	190	11	14000	410x170x283
WC67Y-200/5000	2000	5000	3800	320	460	190	11	20000	530x173x250
WC67Y-200/6000	2000	6000	4500	320	460	190	11	25000	630x200x310
WC67Y-250/3200	2500	3200	2600	400	525	240	15	17000	330x185x300
WC67Y-250/4000	2500	4000	3200	400	525	240	15	18000	410x185x310
WC67Y-250/5000	2500	5000	3800	400	525	240	15	25000	530x185x310
WC67Y-250/6000	2500	6000	4500	400	525	240	15	32000	630x210x317
WC67Y-300/3200	3000	3200	2600	400	555	250	22	21000	330x205x320
WC67Y-300/4000	3000	4000	3200	400	555	250	22	24000	430x205x330
WC67Y-300/5000	3000	5000	3800	400	555	250	22	29000	530x230x350
WC67Y-300/6000	3000	6000	4500	400	555	250	22	35000	630x230x387
