Cutting & Fold-bend Machine

QC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing Machine

Anhui Aoxuan Heavy Industry Machine Co., Ltd.
  • Automation:Automatic
  • Certification:CE, ISO 9001:2000, ISO 9001:2008, EPA, CS, RoHS
  • Condition:New
  • Warranty:2 Years
  • Raw Material:Sheet , Plate Rolling
  • Material / Metal Processed:Carbon Steel

Base Info

  • Model NO.:QC11K-6*1600
  • Machine Type:Hydraulic Guillotine Shearing Machine
  • Control System:E21s Controller System
  • Power:CNC
  • Max Cutting Length:1600mm
  • Max Cutting Thickness:6mm
  • Max Material Strength:450kn,Cm
  • Stroke Times:16 Times,Min
  • Stopper Adjust Range:20-500mm
  • Weight:2 T
  • Main Motor:5.5 Kw
  • After-Sales Service Provided:Engineers Available to Service Machinery Overseas
  • Transport Package:Fumigation Wooden Box
  • Specification:3040MM(L)X1500MM(W)X1500MM(H)
  • Trademark:Aoxuan
  • Origin:Maanshan
  • HS Code:84623990
  • Production Capacity:1000sets,Year

Description

Basic Info.

Model NO. QC11K-6*1600 Machine Type Hydraulic Guillotine Shearing Machine Control System E21s Controller System Power CNC Max Cutting Length 1600mm Max Cutting Thickness 6mm Max Material Strength 450kn/Cm Stroke Times 16 Times/Min Stopper Adjust Range 20-500mm Weight 2 T Main Motor 5.5 Kw After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Fumigation Wooden Box Specification 3040MM(L)X1500MM(W)X1500MM(H) Trademark Aoxuan Origin Maanshan HS Code 84623990 Production Capacity 1000sets/Year

Product Description

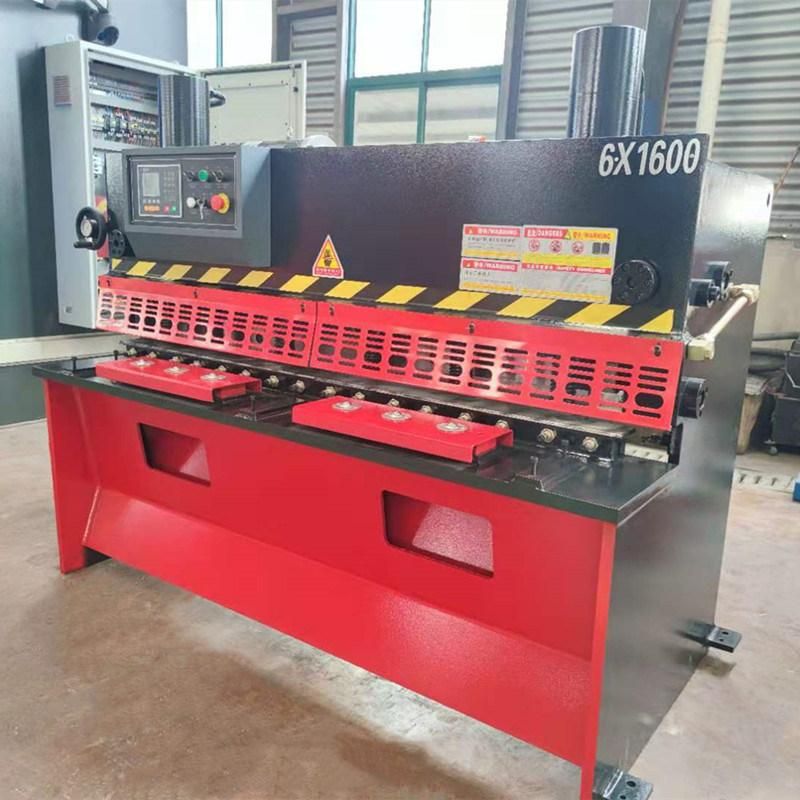

QC11K-6*1600 Hydraulic CNC cutting machine Plate Shearing Machine /Guillotine Shearing Machine

 Features:
1, Hydraulic guillotine cutting machine with high resolution touch screen
2, Variable hydraulic guillotine shear for all metal sheets
3, Adjustable blade gap, cutting angle and cutting length make it possible to cut all types of metals with various
materials and thicknesses.
4, Blade gap adjustment is based on the material and thickness of metal sheets to be cut. Optimum gap not only
effectively extend the lifespan of blade but also guarantee shearing quality. Generally, the adjustable ratio accou
nts for 10% of the sheet thickness.
5, Fine adjustment of cutting angle is designed for minimum distortion of metal sheets.
6.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing
treatment.
7. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from
Bosch-Rexroth, Germany,
8. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted
in stepless mode.
9 Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
10. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,
11. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

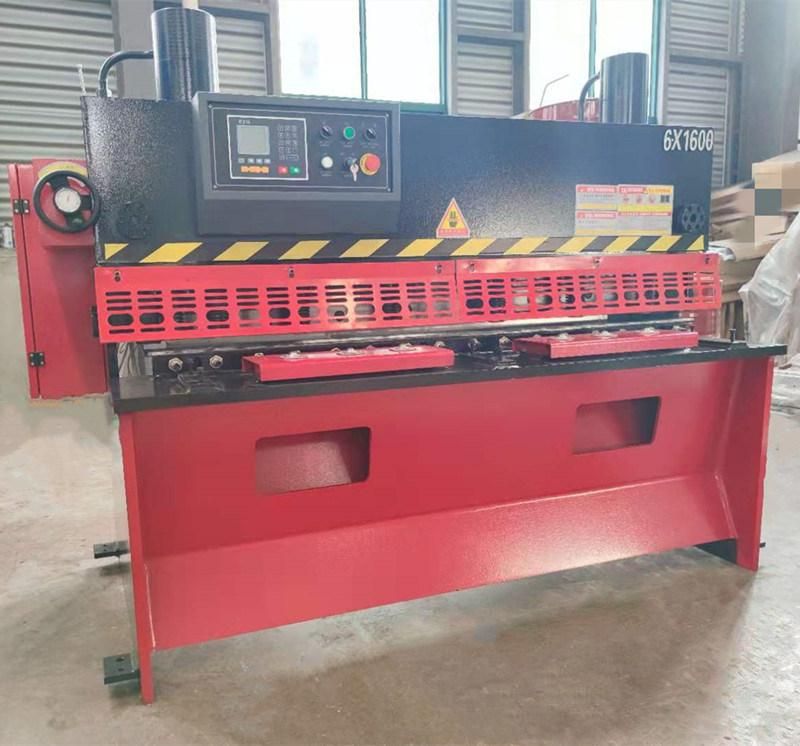

QC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing MachineQC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing Machine
The standard cofiguration:

Equipment:
1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms

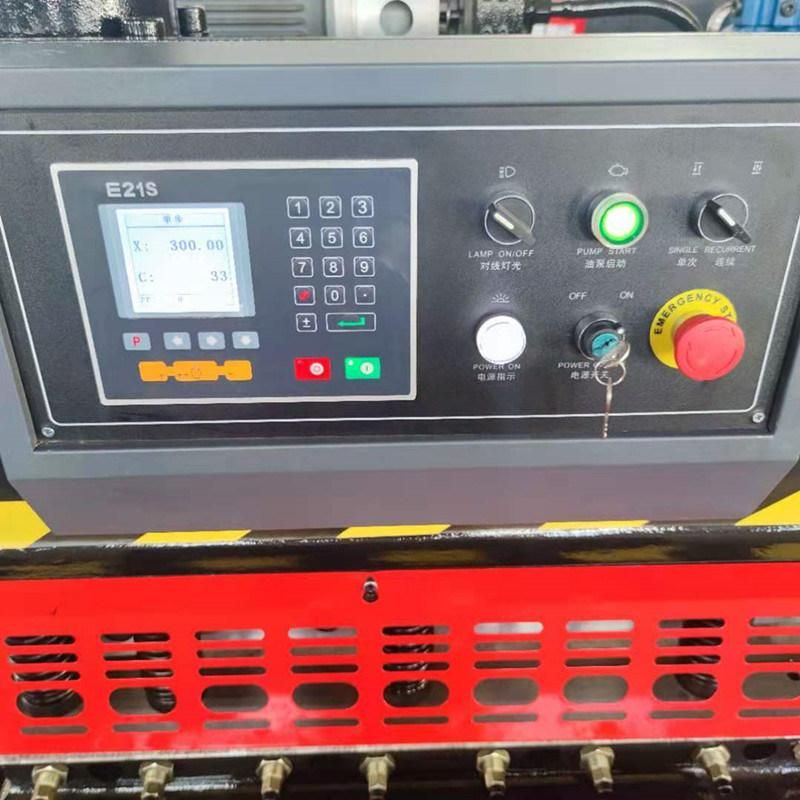

7. E21S controller system
8. Germany Bosch-Rexroth Hydraulic
9. Telemecanique/SchneiderElectrics
10. Hydraulic and Electrical overload protection
11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
12. Side guard is standard meeting CE regulations.

QC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing Machine

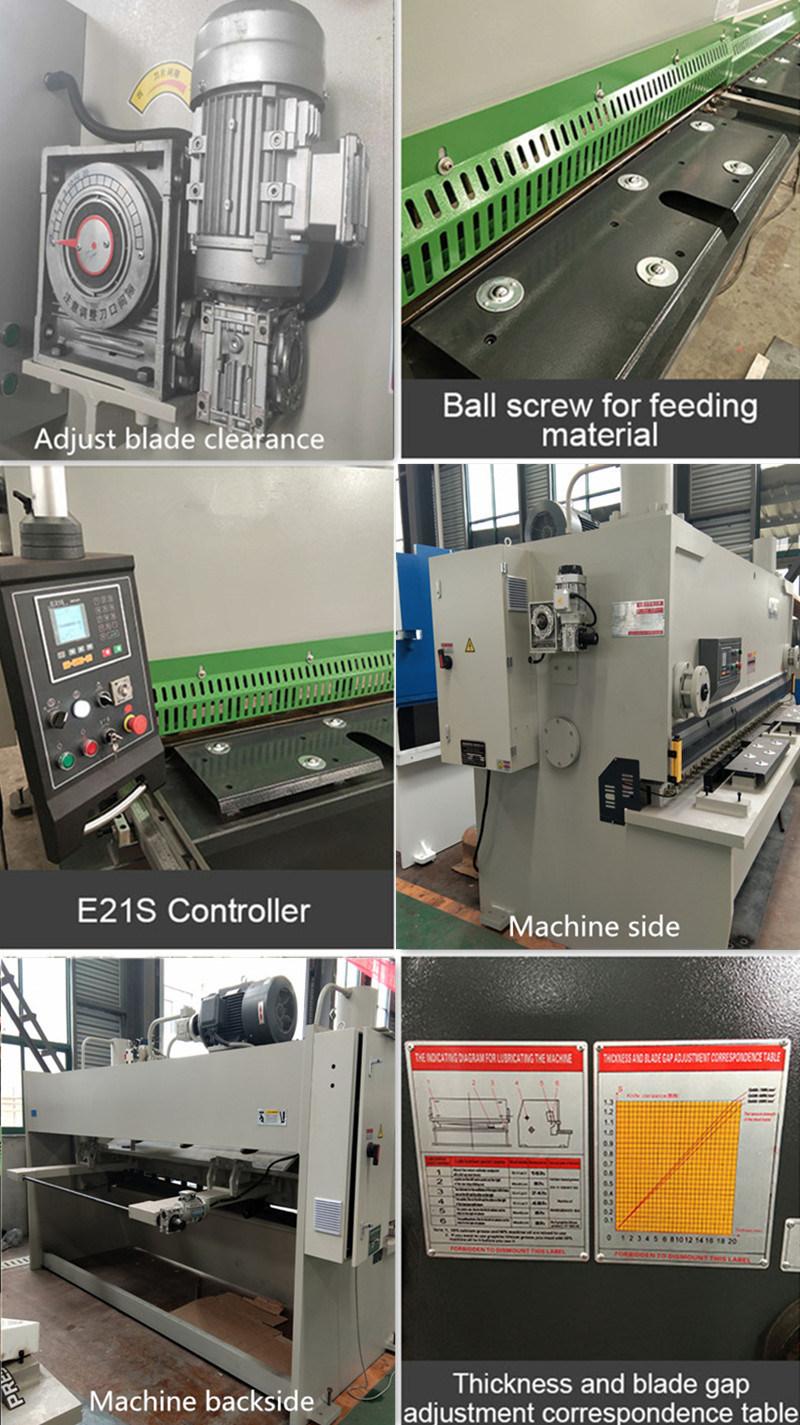

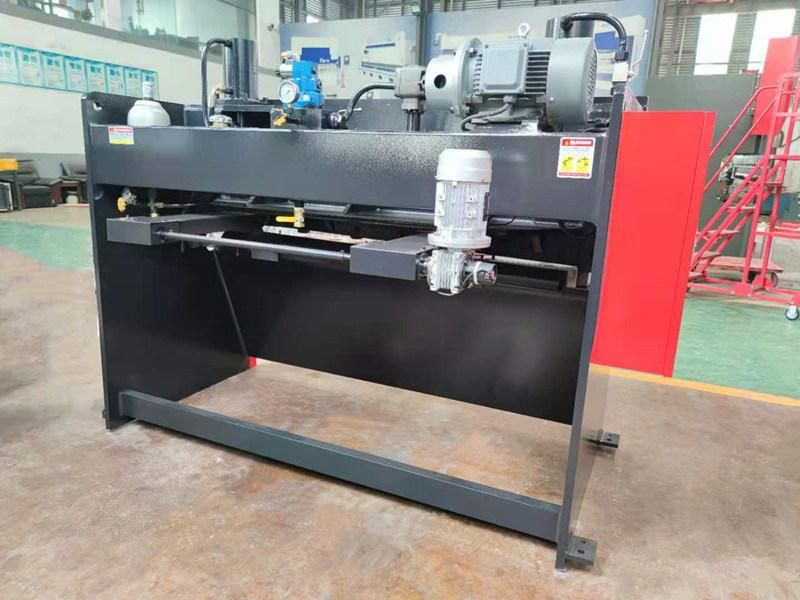

Details:
QC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing MachineQC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing Machine

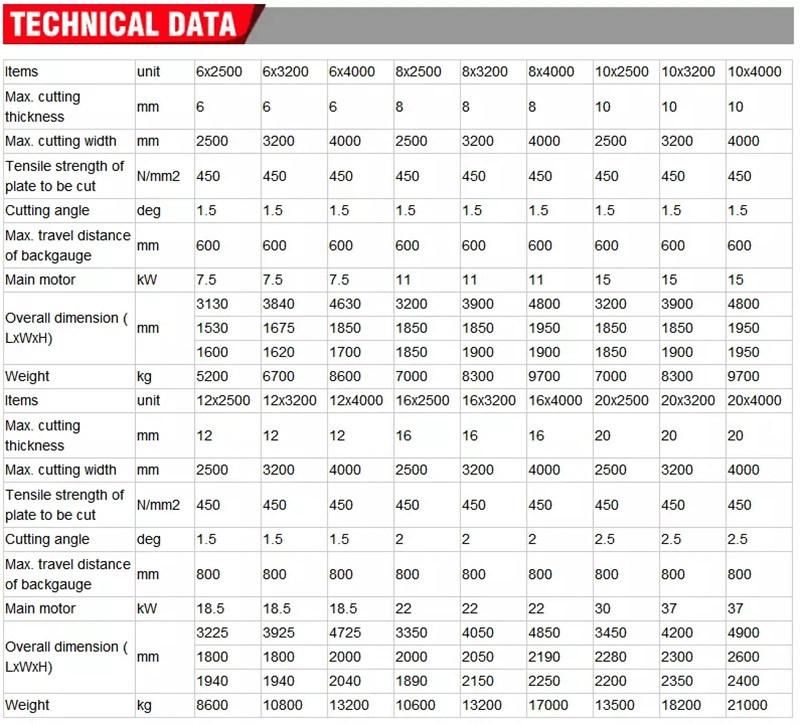

Technical Parameters:
QC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing Machine


Certifications:
QC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing Machine

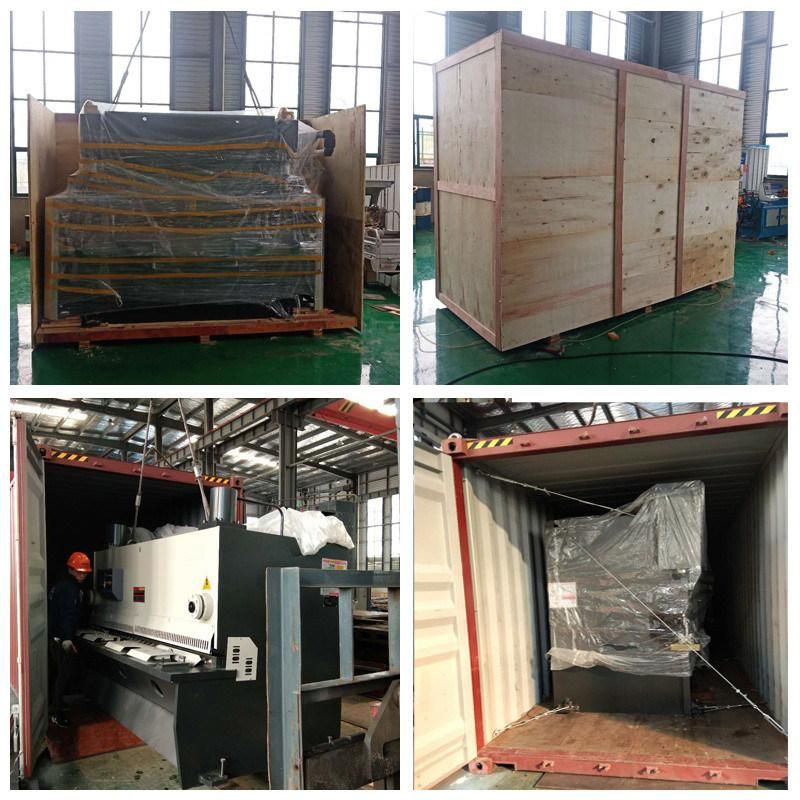

Packing Detail:
Each Hydraulic Shearing machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment
QC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing Machine

Our Service :
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
* Sample testing support.
In-sales. * We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human parts. * Training how to install the machine, training how
to use the machine with video and so on * And our technical staff can go abroad to provide technical guidance.


Our Company:
QC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing Machine

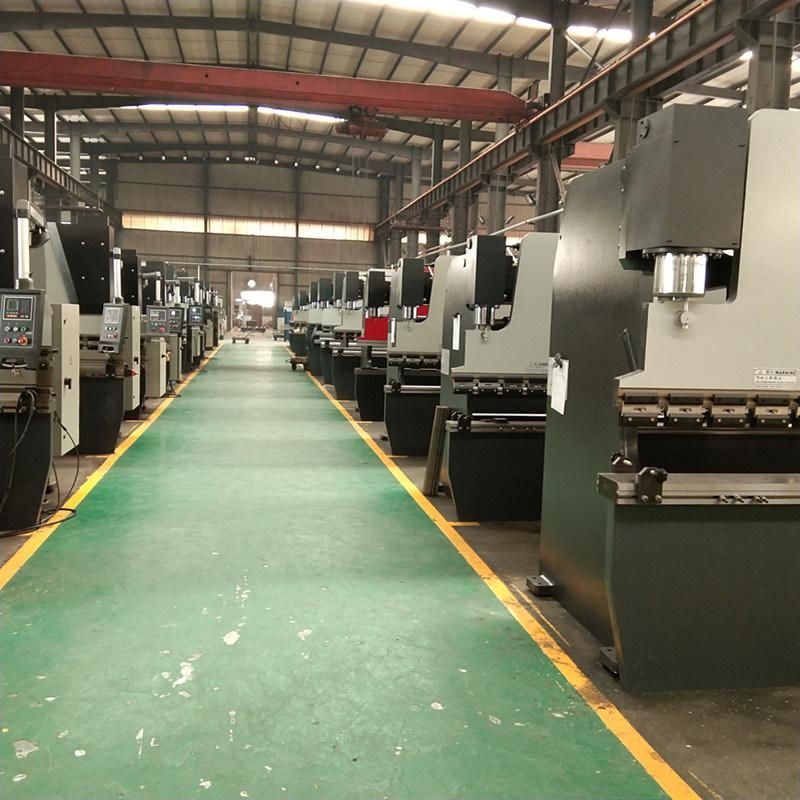

Our workshop:
QC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing Machine


Customer & EXPO:
QC11K-6*1600 Hydraulic CNC Cutting Machine Plate Shearing Machine /Guillotine Shearing Machine


FAQ:
1. Are you the manufacture?Can we visit your factory? We are manufacturer and we are located in Anhui,China.And we have our
own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will
be solved on spot at first time.

2.What's your main product and what is your main foreign market? Our main products are press brake,shears machine,press,cut
ting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Afr
ica.

3. What are the advantages of your machines?And how can i believe the quality of your product? The main configuration is to im
port quality products, and Professional product quality inspection teamensure machine in top-quality, precision and life. For exam
ple,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as q
ualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order? After confirming your order ,we
would keep you updated of production details of emails and photos.

5. Can we be your agent? Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service
like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms? T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect. Buyer pays 30% by T/T to start this order, res
t 70%paid before shipment.

7.Are you provide product metal parts and provide us technical guidance? Wearing parts,Disassembly tool(free) are what we cou
ld provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

8. How long is your warranty? 13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?we accept kinds of customized ,including logo and machine .
