Cutting & Fold-bend Machine

Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price

Anhui Aoxuan Heavy Industry Machine Co., Ltd.
  • Automation:Automatic
  • Certification:CE, ISO 9001:2000, ISO 9001:2008, EPA, CS, RoHS
  • Condition:New
  • Warranty:2 Years
  • Power:Electric
  • Raw Material:Sheet , Plate Rolling

Base Info

  • Model NO.:Q11-1.5*1500
  • Material / Metal Processed:Carbon Steel
  • Max. Cutting Thickness (mm):1.5mm
  • Blade Length (mm):1500mm
  • Travel Times:13times,Min
  • Cutting Angle:1°30’
  • Backgauge Range:20-500mm
  • Voltage:220V,380V
  • Power (Kw):3kw
  • Weight (Kg):440kg
  • Applicable Industries:Building Material Shops
  • Transport Package:Fumigation Wooden Box
  • Specification:1900MM(L)X800MM(W)X1150MM(H)
  • Trademark:Aoxuan
  • Origin:Maanshan
  • HS Code:8451500000
  • Production Capacity:1000sets,Year

Description

Basic Info.

Model NO. Q11-1.5*1500 Material / Metal Processed Carbon Steel Max. Cutting Thickness (mm) 1.5mm Blade Length (mm) 1500mm Travel Times 13times/Min Cutting Angle 1°30’ Backgauge Range 20-500mm Voltage 220V/380V Power (Kw) 3kw Weight (Kg) 440kg Applicable Industries Building Material Shops Transport Package Fumigation Wooden Box Specification 1900MM(L)X800MM(W)X1150MM(H) Trademark Aoxuan Origin Maanshan HS Code 8451500000 Production Capacity 1000sets/Year

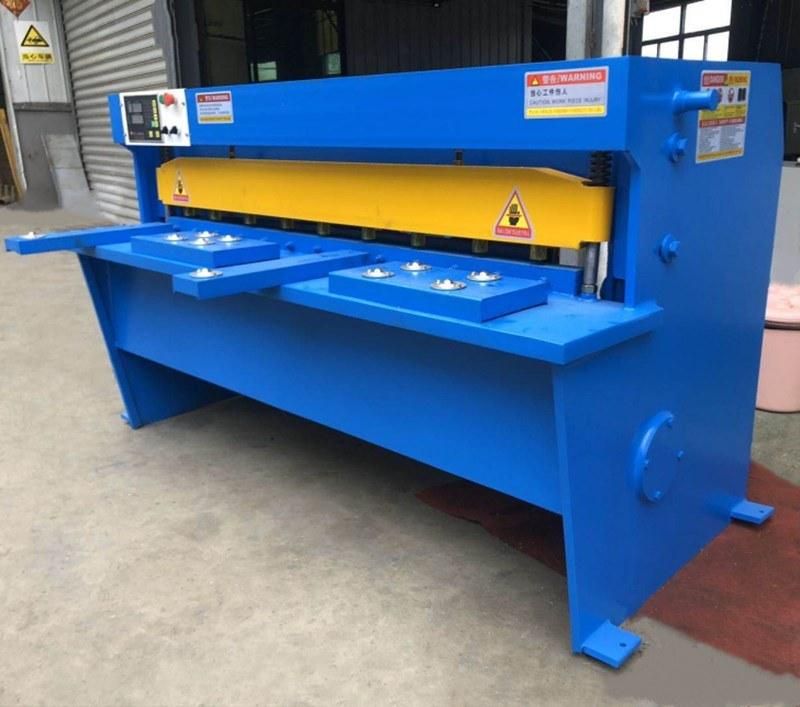

Product Description

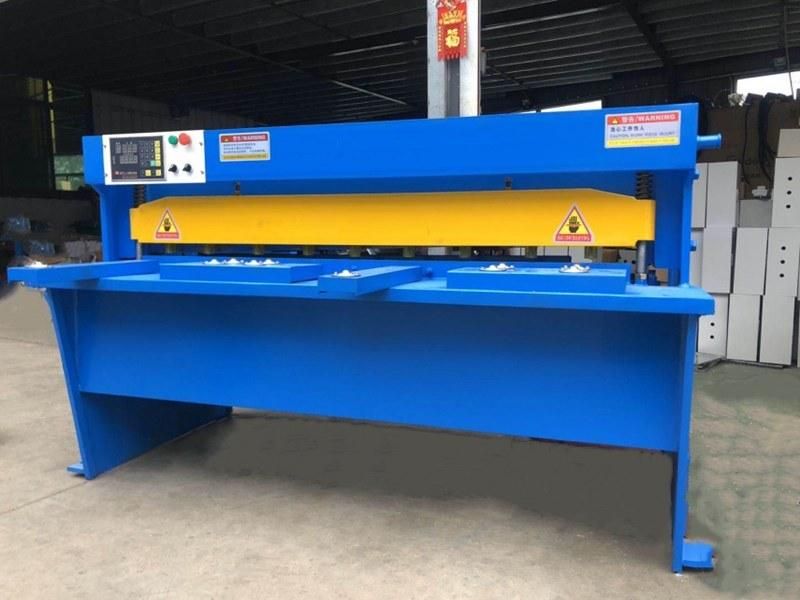

Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price


Machine Application:
1. This machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450 N/mm2,
non-metallic material including rubber,plastics,when cut hot plate temperature should below 50 °C, The machine can make
only intermittent shear in full load, if tensile strength is higher , shear thickness should be reduced.

2. The machine is applicable to uncoiling, leveling, shearing,workshop of production line for plate processing
3. The machine base is steel- welding , the structure is compact, good rigidity.
4. Track of blade movement is precision casting copper,less friction
5. Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth smooth
6. Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal surface.

7. The machine iuse completely independent closed gear box transmission system, move directly connection with main axil, compact structure,
gear have good lubrication,low noise and long life.
8. The machine equipped with pneumatic clutch device, high friction, long service life, clutch speed is high so that improve the shearing speed.


Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price
Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price

Performance:
1. The machine is made of all-steel welded construction.
2. Uses electric motor drive, blade made by material 6CrW2Si.
3. Widely used in motor, electrical, automobile industries and all shops of other industries where sheet metal cutting is required.
4. Simple construction,easily operation and safe, sensitive and reliable control
5. Easy maintenance, low energy consumption.
Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price

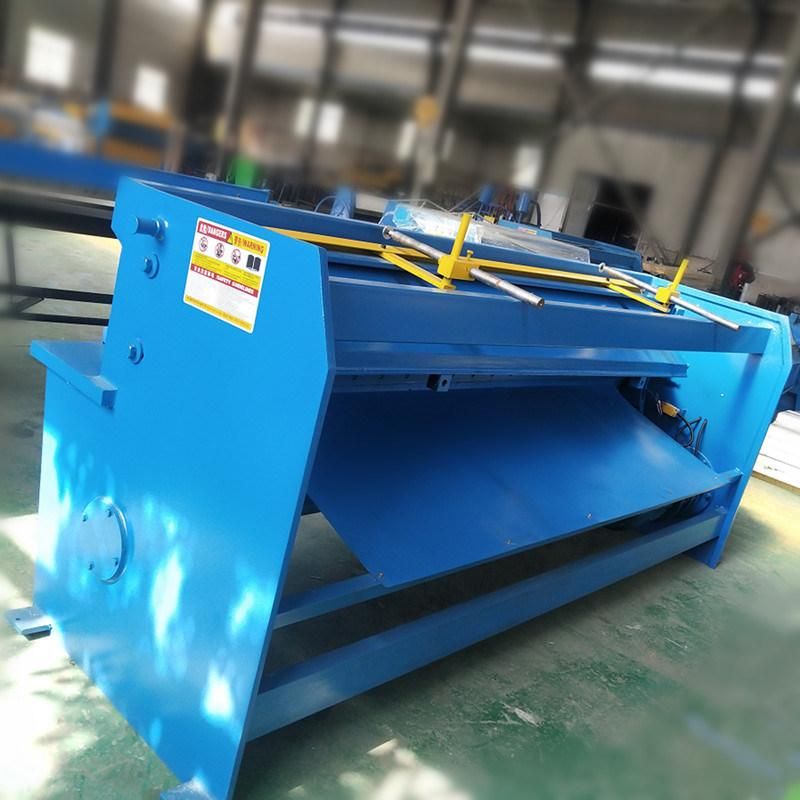

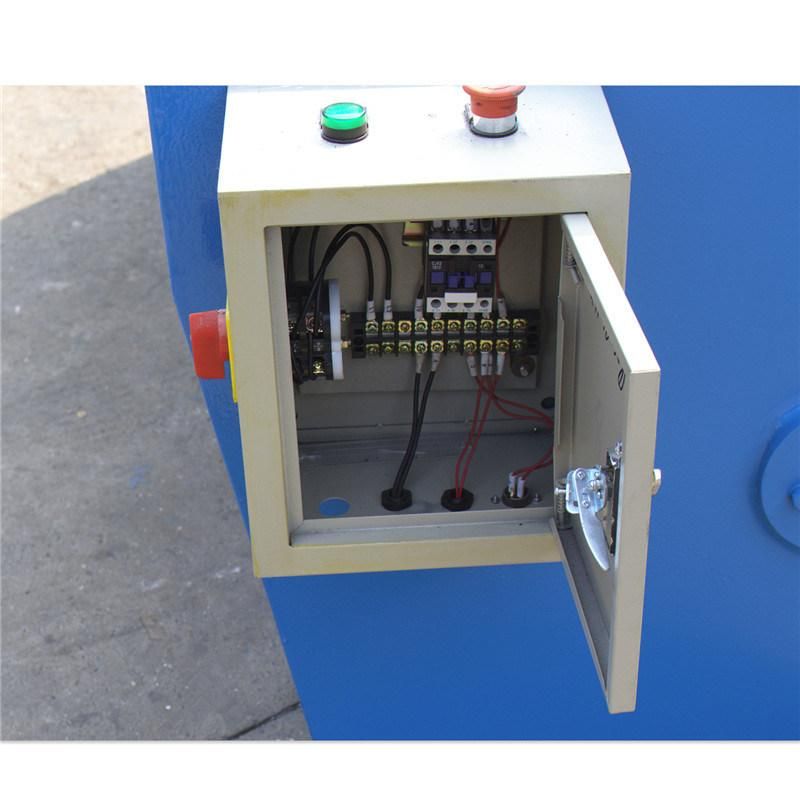

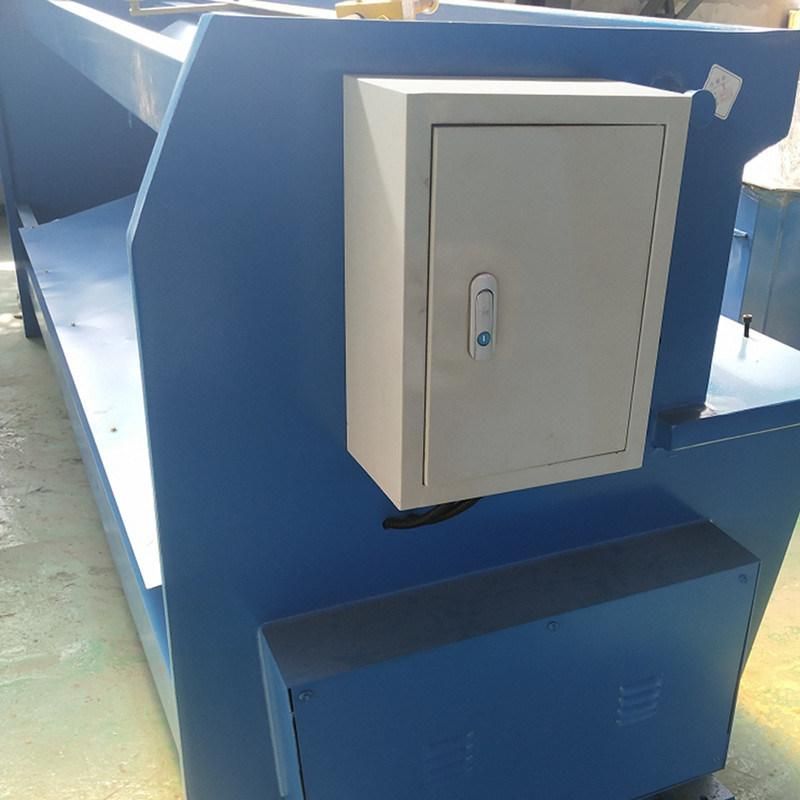

Details:
Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price
Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price

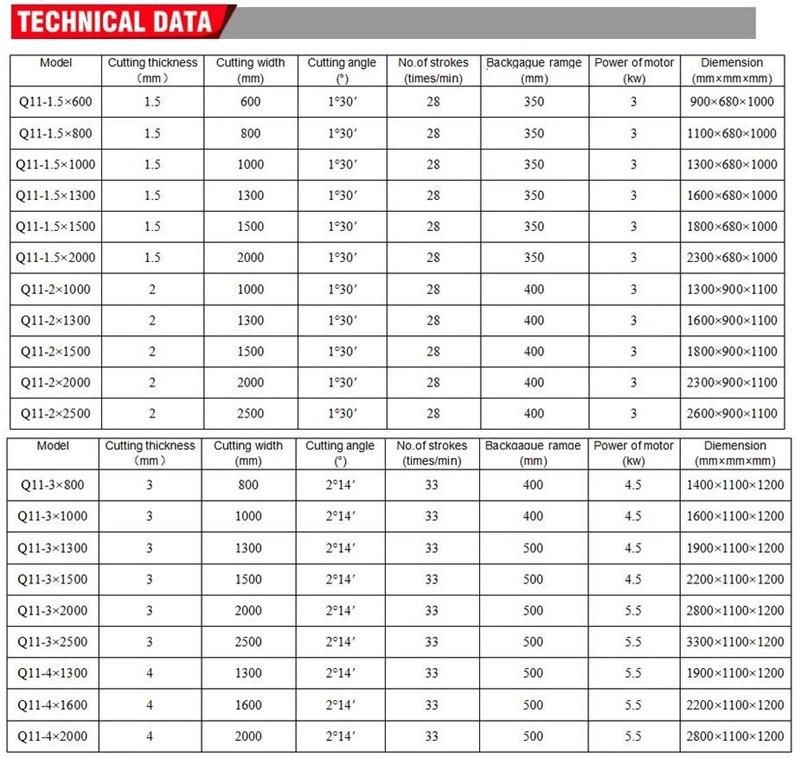

Technical Parameters:
Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price

Certifications:

Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price

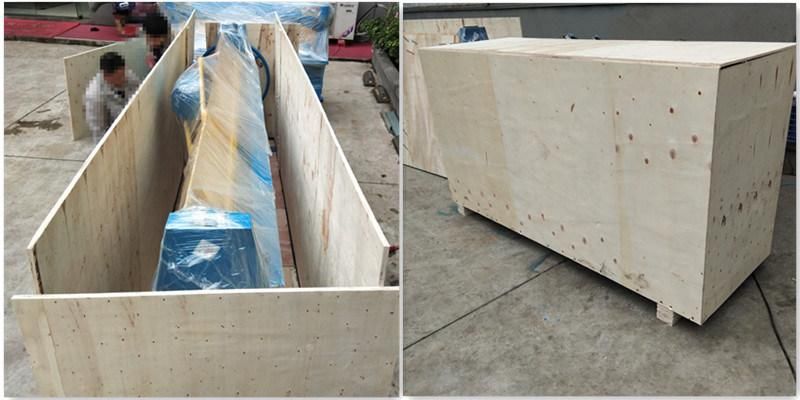

Packing Detail:
Each electric shearing machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment

Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price

Our Service :
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sales.
* We will provide free accessories for the damage to non-human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

Our Company:
Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price

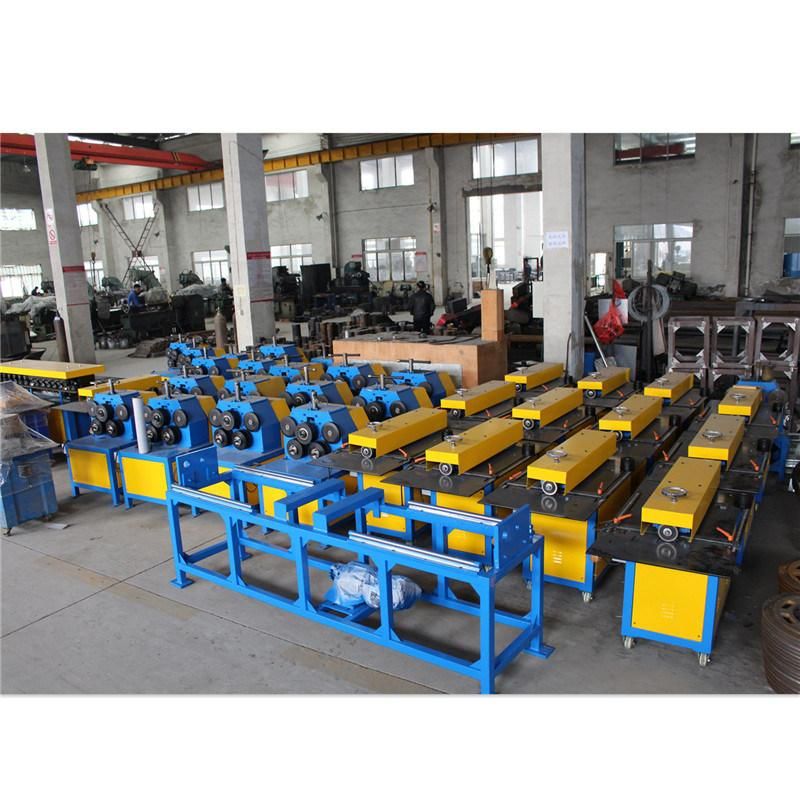

Our workshop:
Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price

Customer & EXPO:
Cutting Plate 1.5mm*1500mm Electric Shearing Machine with High Efficiency Reasonable Price

FAQ:
1. Are you the manufacture?Can we visit your factory?
We are manufacturer and we are located in Anhui,China.And we have our own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Africa.

3. What are the advantages of your machines?And how can i believe the quality of your product?
The main configuration is to import quality products, and Professional product quality inspection teamensure machine in top-quality, precision and life. For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect. Buyer pays 30% by T/T to start this order, rest 70%paid before shipment.

7.Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

8. How long is your warranty?
13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized?
we accept kinds of customized ,including logo and machine.
