• Model NO.：LT-PH-01
• Material：Brass
• Total Length：275mm
• Barrel Length：120mm
• Outer Diameter：30mm
• Working Speed：0.3~30m,Min
• Line Width：0.6-1.2mm
• Line Thickness：0.05~0.20mm
• Transport Package：Carton, Wooden Case
• Specification：CE, ISO
• Trademark：Longteng
• Origin：Wuxi, China (Mainland)
• HS Code：8515900000
• Production Capacity：50000 PCS,Year

Basic Info.

Model NO. LT-PH-01 Material Brass Total Length 275mm Barrel Length 120mm Outer Diameter 30mm Working Speed 0.3~30m/Min Line Width 0.6-1.2mm Line Thickness 0.05~0.20mm Transport Package Carton, Wooden Case Specification CE, ISO Trademark Longteng Origin Wuxi, China (Mainland) HS Code 8515900000 Production Capacity 50000 PCS/Year

Product Description

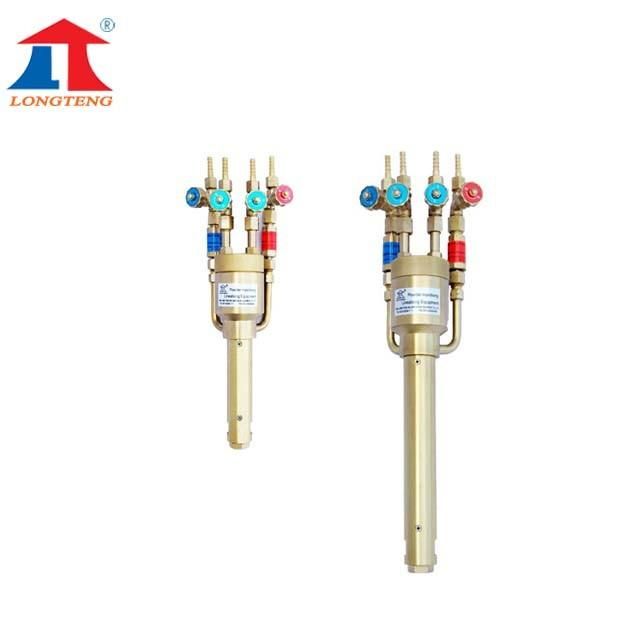

30mm Flame Cutting Torch, Zinc Powder Spraying and Marking Torch

1)Quick Detail:1.Powder spraying and marking device2.Applicable to CNC flame cutting machine3.The material is brass,outer diameter is 30mm
   2)Description:1.The powder spraying device has 4 gas inlet channels among which 3 are for oxygen,1 for Fuel gas.Two outermost channels, one is for preheat oxygen,the other is for Fuel gas; the middle one is for cutting oxygen; by which it is for powder spray.2.Firstly,screw off knurled nut,put zinc powder into storage tank and screw on the nut.3.Secondly,ignite powder spray device, adjust cutting oxygen,open the value of powder spray gas channel,then zinc powder will be automatically sprayed onto the plane.

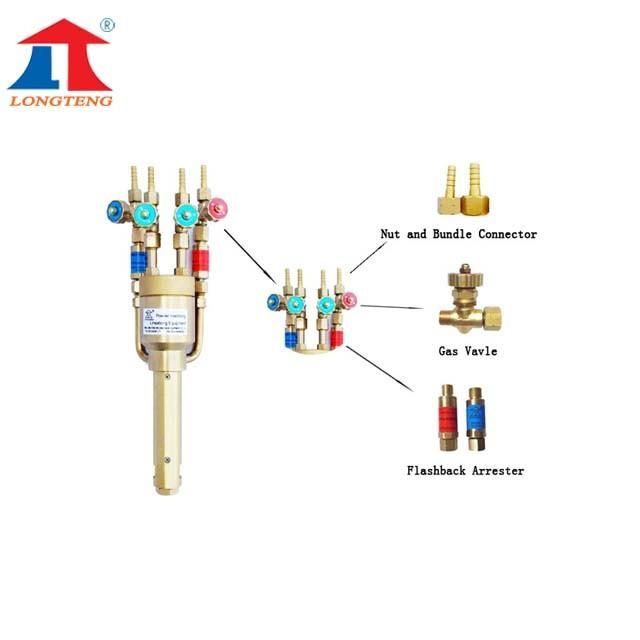

1>Standard ConfigurationGun body,regulating valve,flashback arrestor,nut,core(core can be customized according to the size of the hose)  3)Applications:It is applicable to digital-control cutting machine of different series. It is melts zinc powder inside storage tank with flame and spray it onto the steel plate according to design, then along the zinc powder line cutting machine conducts cutting with digital-control cutting torch.The width of the line is 0.5mm,which is adjustable.
4)Competitive Advantage:1>Product Advantage:1.Adopt the isobaric preheating,use the zinc powder spraying more than 200 mesh,can be continuous powder spraying and marking,clear line,compact structure,strong and durable.2.Suitable for automatic equipment and perform the various of complex graphic. 2>Factory Advantage:1. Professional manufacturer for CNC Cutting Machine Accessories2. More than 16 years experience3. Factory direct price and on time delivery4. Secure Ordering and worldwide delivery5. Sample available6. Small quantity acceptable7. OEM workable
