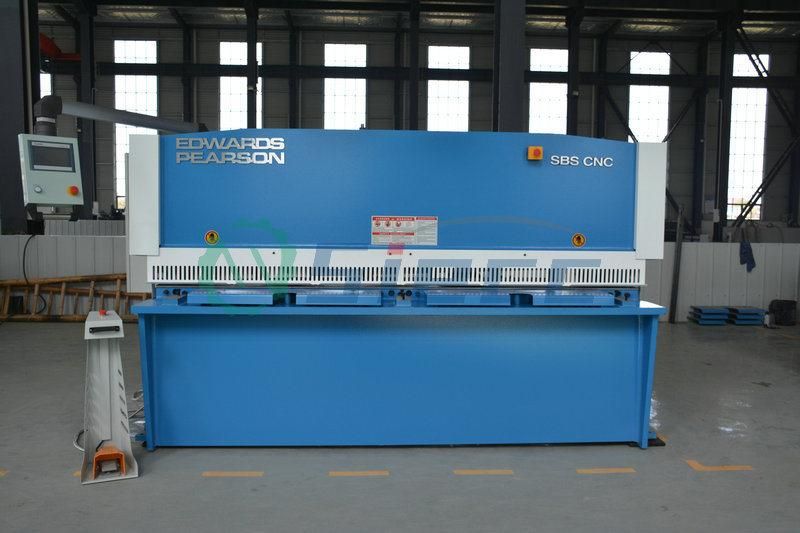

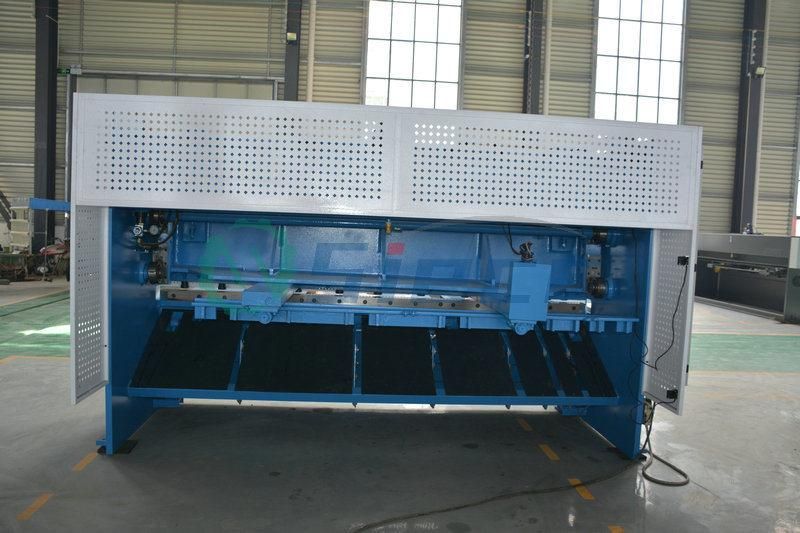

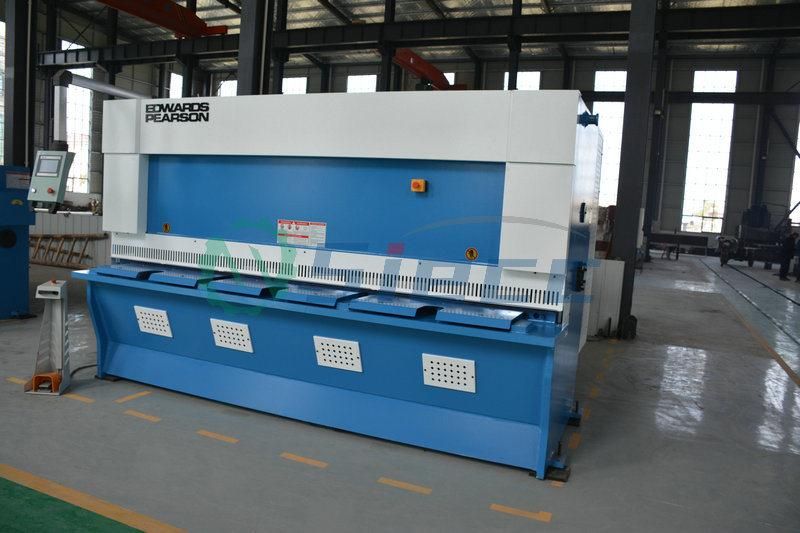

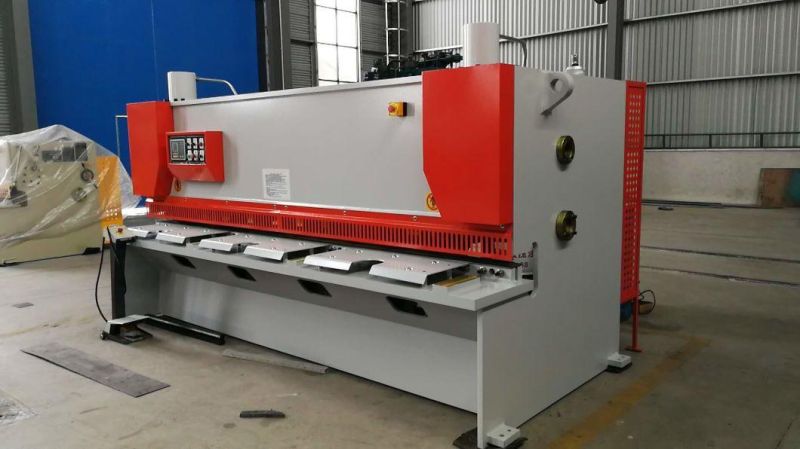

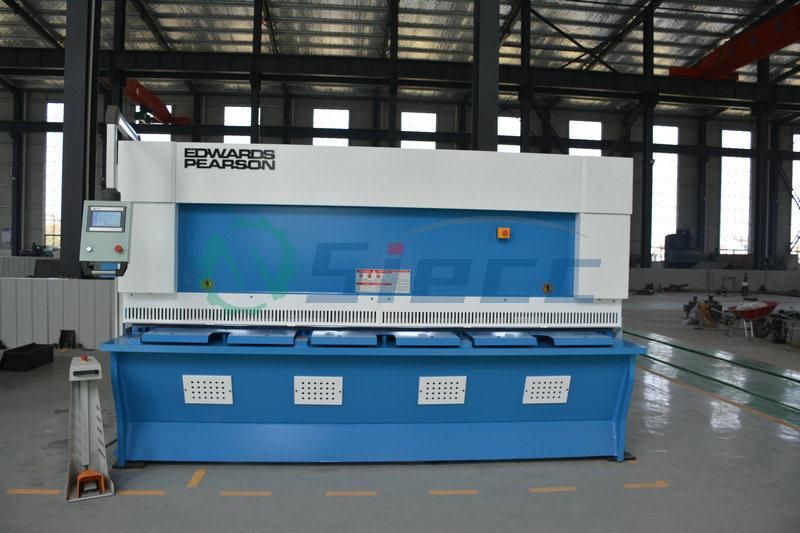

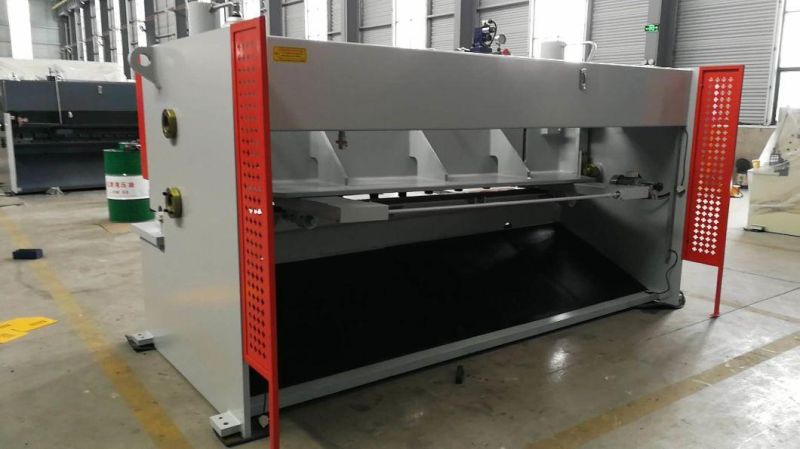

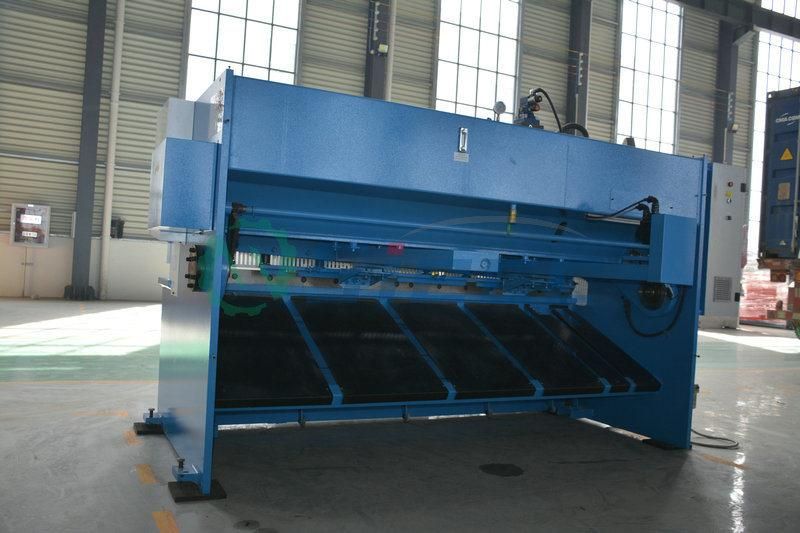

Hydraulic CNC Metal Shear Machine (QC11Y)
Shining Industrial Enterprise (China) Co., Ltd.- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Transport Package：Steel Pallet Packaged
- Trademark：SIECC,SIECCTECH
Base Info
- Model NO.：QC11Y
- Origin：Haian City, Jiangsu
- HS Code：8462399000
Description
ModelThickness Widthness Strok Number Back Gauge Range Shear Angle Throat Depth Main Motor Power Dimension(Without Package) mm mm min -1 mm ° mm kw mm(L×W×H) 4×2500 4 2500 25-45 600 0.5-1.5 100 5.5 3000×2000×1850 6×2500 6 2500 20-45 600 0.5-1.5 125 7.5 3030×2075×1920 6×3200 6 3200 16-45 600 0.5-1.5 125 7.5 3730×2075×1970 6×4000 6 4000 14-45 600 0.5-1.5 125 7.5 4530×2075×2080 6×5000 6 5000 11-40 800 0.5-1.5 125 7.5 5530×2075×2210 6×6000 6 6000 9-36 800 0.5-1.5 125 11 6530×2075×2520 7×7000 7 7000 7-28 800 0.5-1.5 125 11 7530×2075×2830 8×2500 8 2500 20-45 600 0.5-1.5 125 11 3040×2075×1920 8×3200 8 3200 16-45 600 0.5-1.5 125 11 3740×2075×1920 12×2500 12 2500 12-35 800 0.5-2 125 15 3110×2575×2210 12×3200 12 3200 7-35 800 0.5-2 125 15 3810×2575×2420 12×4000 12 4000 8-35 800 0.5-2 125 15 4610×2575×2530 16×2500 16 2500 16-40 800 0.5-2.5 125 22 3130×2655×2200 16×4000 16 4000 12-40 800 0.5-2.5 125 22 4630×2655×2570 20×2500 20 2500 16-40 800 0.5-2.5 125 30 3160×2855×2300 20×4000 20 4000 12-40 800 0.5-2.5 125 30 4660×2855×2720 25×2500 25 2500 8-15 800 0.5-3.5 120 37 3330×2000×2650 25×3200 25 3200 8-15 800 0.5-3.5 120 37 3970×2100×2865 25×4000 25 4000 6-12 1000 0.5-3.5 120 37 4780×2500×3150 32×2500 32 2500 6-12 1000 0.5-3.5 120 45 4100×2300×3200 32×3200 32 3200 8-12 1000 0.5-3.5 120 55 1900×2650×3450 40×2500 40 2500 4-10 1000 0.5-3.5 120 75 4100×2550×3500 40×3200 40 3200 4-10 1000 0.5-3.5 120 75 4900×2900×3750
