CNC Servo Busbar Bending Machine Angle Accuracy Within 0.1 Degree
Jinan Euro-Asia Int'l Co., Ltd.- Waterproof Rating：IPX-0
- Warranty：Lifetime
- Condition：New
- Certification：ISO 9001:2008, CE
- Automation：Automatic
- Suitable for：Copper, Aluminum
Base Info
- Model NO.：EMAC-BB-H12
- Type：Cnc Bending Machine
- Outside Dimension：4150X1590
- Level Bending：200 X15mm
- Vertical Bending：125X15mm
- Bending Accuracy：0.1
- Transport Package：Export Standard Free-Fumigation Wooden Case
- Specification：Total Weight: 2700kgs
- Trademark：BEIENE
- Origin：Shandong, China
- Production Capacity：200 Sets Per Month
Description
Basic Info.
Model NO. EMAC-BB-H12 Type Cnc Bending Machine Outside Dimension 4150X1590 Level Bending 200 X15mm Vertical Bending 125X15mm Bending Accuracy 0.1 Transport Package Export Standard Free-Fumigation Wooden Case Specification Total Weight: 2700kgs Trademark BEIENE Origin Shandong, China Production Capacity 200 Sets Per MonthProduct Description
Video link:https://cncmachinegroup.en.made-in-china.com
Products Description:
1. This machine adopts unique large closed type bending structure.
2. It also has the convenience of the open type bending.
3. It possesses the premium property of the closed type bending.
4. The bend unit (Y-axis) has the function of angle error compensation, its bending accuracy can meet the high performance norm.
5. When it is in vertical bending, the machine has the function of auto clamping and release, the processing efficiency is greatly improved compared with manual clamping and release.
Advantages:
1.Closed Bending Structure --Using a precision linear guide to ensure fabricating accuracy.

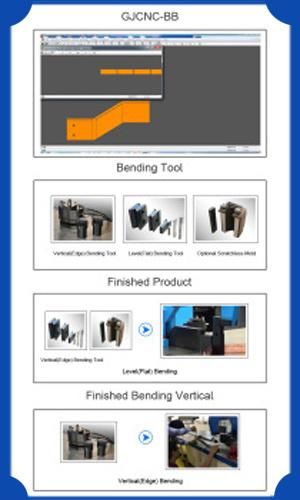

2.GJ3D Software Programming --Accurately calculating the punching position by 3D graphics.
3.Touch Screen -- Allowing the easy setting of die parameters and the operation of equipment.
4. High-Speed-- Operation System Guarantee high precision and fast efficiency.
Specification:
| Item | Unit | Parameter |
| Nominal Force | KN | 400 |
| Bender Accuracy | Degree | ±0.1 |
| Max Bending Stroke | mm | 250 |
| Stroke of Side Striker | mm | 2000 |
| Max Motion Speed of Side Striker (X Axis) | m/min | 15 |
| Bending Head (Y Axis) | m/min | Fast: 5; |
| Min Inner Width of U-shape Bend | mm | 40 (Note:Please consult us for smaller dimensions) |
| Max Bending Angle | degree | 90 |
| Level Bending (W*H) | mm | 200 × 15 |
| Vertical Bend (W*H) | mm | 125×15 |
| Total Power | kw | 7.2 |
| Main Machine Dimension: L*W | MM | 4150 X 1590 |
| TOTAL Weight | kg | 2700 |
Package and Shipment:
Thumb up by Customers:
