GM-Sb-50CNC Full-Auto Numerical Control with High Quality
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.- Waterproof Rating:IPX-8
- Warranty:1-year
- Condition:New
- Certification:ISO 9001:2000, CE
- Automation:Automatic
- Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.:GM-SB-50CNC
- Type:Pipe and Tube Bending Machine
- Transport Package:Iron Frame
- Specification:GM-50CNC-2A-1S
- Trademark:GMACC
- Origin:China
- Production Capacity:5000PCS,Year
Description
Basic Info.
Model NO. GM-SB-50CNC Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification GM-50CNC-2A-1S Trademark GMACC Origin China Production Capacity 5000PCS/YearProduct Description

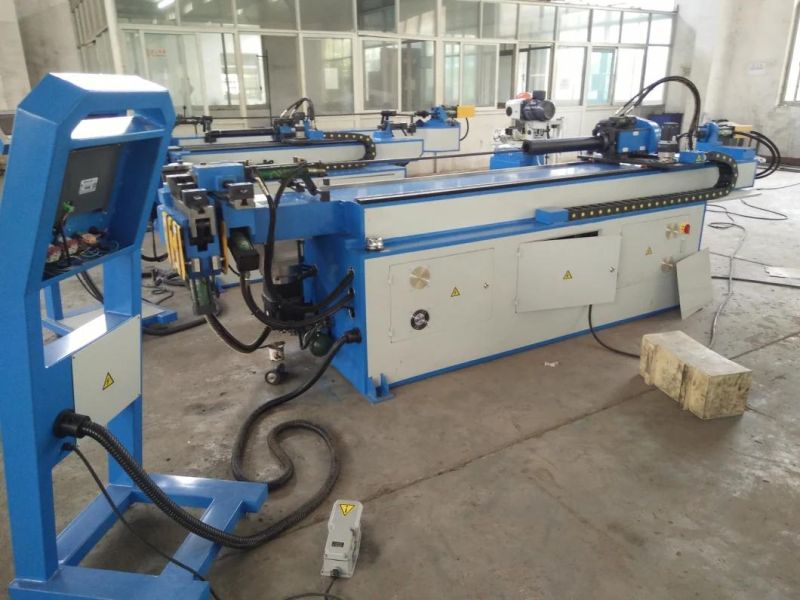

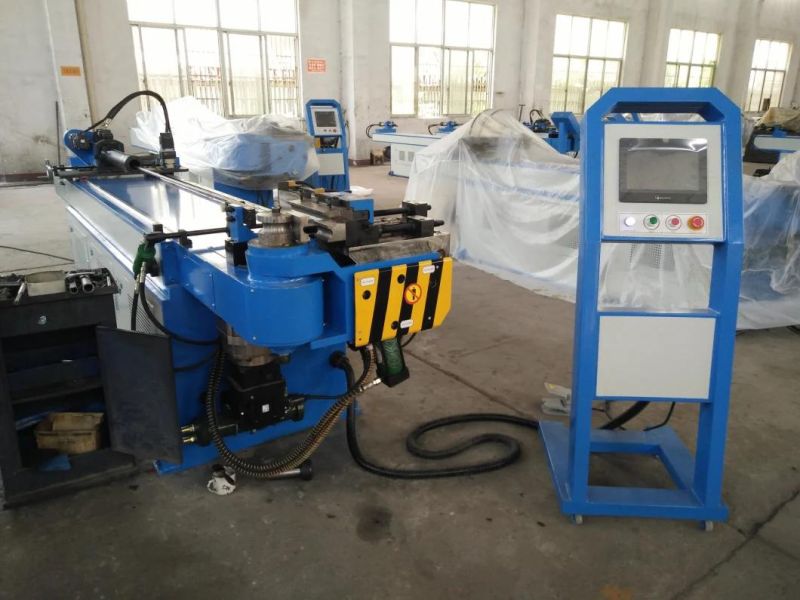

GM-SB-50CNC Full-Auto Numerical Control Model:50×3A×1S- Machine Characteristics
- Main Technical Parameter
Name | Unit | Parameter |
Mild steel round tube | mm | ¢50*2 |
Stainless Steel | mm | ¢40*3 |
Light alloy annealed round tube | mm | ¢50*3 |
Mild steel square tube | mm | 35*35*2 |
Mild steel rectangular tube | mm | 40*30*2 |
Mild steel round solid bar | mm | ¢20 |
Mild steel square solid bar | mm | 18*18 |
Min. bending radius | mm | 20 |
Max. Bending radius(Standard) | mm | 250 |
Head overhang (on bending centre) | mm | 600 |
Head height (on bending centre) | mm | 400 |
Bending centre height (from floor) | mm | 960 |
Max. bar passage inside the P.O.B. positionner | mm | 50 |
Clamping adjustable stroke | mm | 0-90 |
Shouldering adjustable stroke | mm | 256 |
Mandrel retraction adjustable stroke | mm | 0-76 |
Max. Bending Angle | ° | 190° |
Through Effective Distance | mm | 3200 |
Bending Speed(Max.) | °/sec | 160 |
Max. rotation speed (axis Z) | °/sec | 200 |
Max. feeding speed (axis X.) | mm/sec | 1000 |
Bending angle Precision | ° | ±0.10 |
Rotation angle Precision - axis Z | ° | ±0.10 |
Shifting Precision - axis X | mm | ±0.10 |
Bending Servo Motor Power | KW | 5 |
Rotation Servo Motor Power | KW | 0.75 |
Feeding Servo Motor Power | KW | 0.75 |
System Motor Power | KW | 4 |
Hydraulic Pump Volume | L | 14 |
Max. Pressure | Mpa | 16 |
L*W*H (Packaging Dimension) | mm | 4500*800*1300 |
Machine Weight | T | ABOUT 2.5 |
- Configuration of Hydraulic and Electronic Control System
Name | Manufacturer |
Hydraulic Motor | Germany Siemens(Beide)or Runmali |
Hydraulic Pump | Wuxi Tuoli |
Hydraulic Valve | Japan Yuken(Imported) |
Oil way Board | Taiwan Shanghong (Imported) |
Cylinder | Shanghai Qifan |
Oil tube | Zhejiang |
Touch screen | Taiwan Weinview(Imported) |
PLC | Japan Mitsubishi(Imported) |
Servo Motor | Japan Mitsubishi(Imported) |
Angle controller | Japan Nemicon(Imported) |
Contactor | Schneider |
Transformer | Wuxi Xinyu |

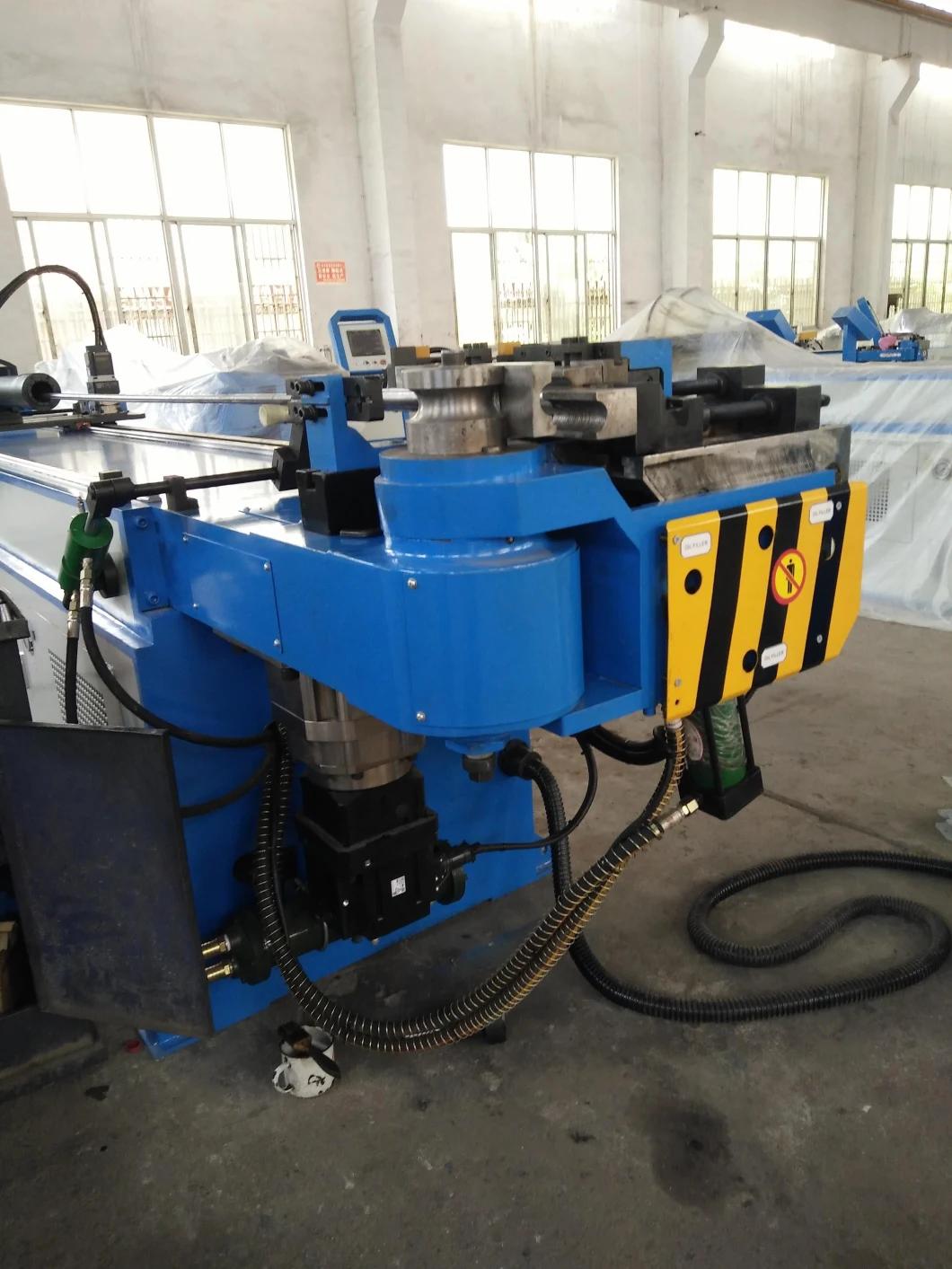

Tooling Samples
Bending Die Clamp Die Pressure Die
Mandrel Wiper Die(optional)
