• Model NO.：GM-SB-50CNC
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：GM-50CNC-2A-1S
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-50CNC Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification GM-50CNC-2A-1S Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

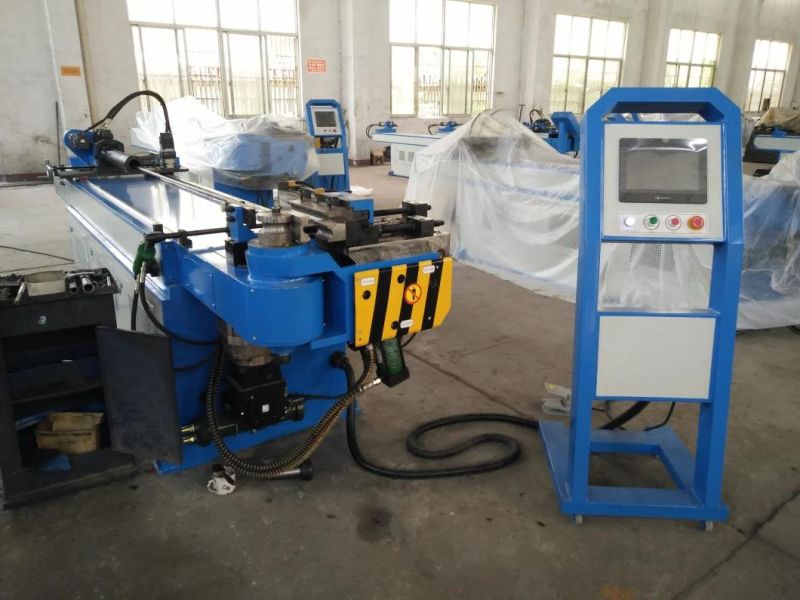

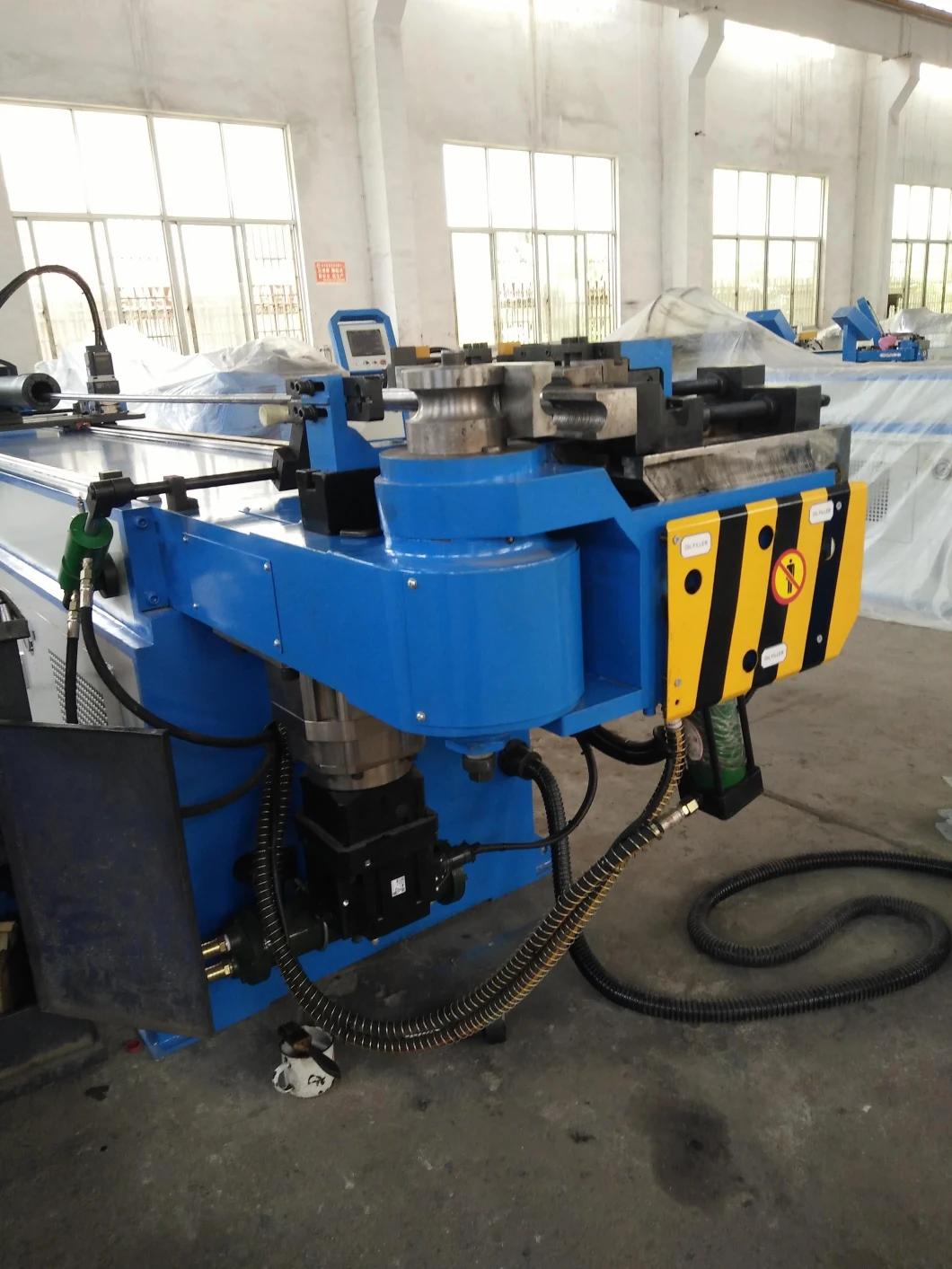

GM-SB-50CNC Full-Auto Numerical Control Model:50×3A×1S

• Machine Characteristics

GM-SB-50CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order,Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending with feeding,rotating and bending all drived by servo motor. CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection,

• Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	¢50*2
Stainless Steel	mm	¢40*3
Light alloy annealed round tube	mm	¢50*3
Mild steel square tube	mm	35*35*2
Mild steel rectangular tube	mm	40*30*2
Mild steel round solid bar	mm	¢20
Mild steel square solid bar	mm	18*18
Min. bending radius	mm	20
Max. Bending radius(Standard)	mm	250
Head overhang (on bending centre)	mm	600
Head height (on bending centre)	mm	400
Bending centre height (from floor)	mm	960
Max. bar passage inside the P.O.B. positionner	mm	50
Clamping adjustable stroke	mm	0-90
Shouldering adjustable stroke	mm	256
Mandrel retraction adjustable stroke	mm	0-76
Max. Bending Angle	°	190°
Through Effective Distance	mm	3200
Bending Speed(Max.)	°/sec	160
Max. rotation speed (axis Z)	°/sec	200
Max. feeding speed (axis X.)	mm/sec	1000
Bending angle Precision	°	±0.10
Rotation angle Precision - axis Z	°	±0.10
Shifting Precision - axis X	mm	±0.10
Bending Servo Motor Power	KW	5
Rotation Servo Motor Power	KW	0.75
Feeding Servo Motor Power	KW	0.75
System Motor Power	KW	4
Hydraulic Pump Volume	L	14
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	4500*800*1300
Machine Weight	T	ABOUT 2.5



• Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Oil tube	Zhejiang
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Contactor	Schneider
Transformer	Wuxi Xinyu

 Tooling Samples

         Bending Die                                    Clamp Die                   Pressure Die






           Mandrel                                                             Wiper Die(optional)

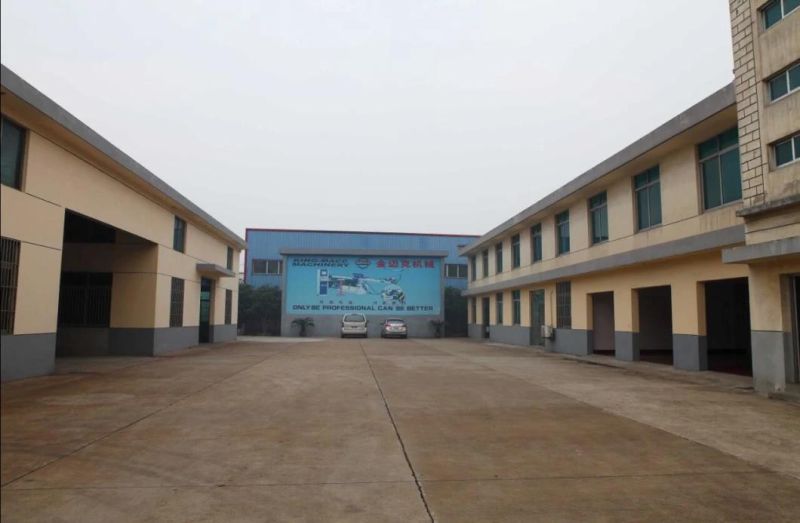

                                  Company Photos




 CNC Machining Center
