Plastic Cup Curling Making Machine
Wenzhou Mingdu Machinery Co., Ltd.- Condition：New
- Certification：ISO 9001:2000
- Automation：Automatic
- Suitable for：Plastic
- Type：Servo Motor
- Speed：300-400PCS,Min
Base Info
- Model NO.：JBJ-120
- Cup Diamter：45-120mm
- Screw Length：1000mm
- Screw Material：Copper
- Transport Package：Wooden Packaging
- Specification：JBJ-120
- Trademark：Mingdu
- Origin：China
- HS Code：84778000
- Production Capacity：20sets,Month
Description
Basic Info.
Model NO. JBJ-120 Cup Diamter 45-120mm Screw Length 1000mm Screw Material Copper Transport Package Wooden Packaging Specification JBJ-120 Trademark Mingdu Origin China HS Code 84778000 Production Capacity 20sets/MonthProduct Description

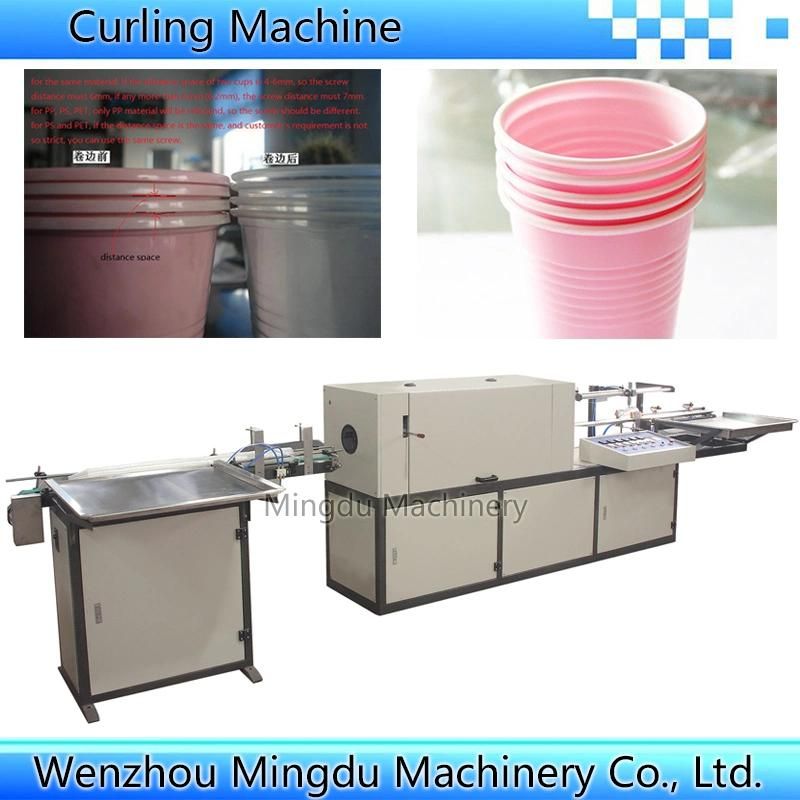

Plastic Cup Curling Making Machine(JBJ-120)
Introduction:
It adopts to curle PP, PS, PVC, PET, etc. Different plastic cups.
Main Feature:
The machine is combined with pneumatic, mechanical and electrical system. The machine is achieved to automatic continuous working feeding cup, curling, completed cup and stacking.
Main Parameter:
| Main Motor | 1.5Kw |
| Feeding Motor | 0.09Kw |
| Heating Power | 10Kw |
| Suitable Cup Material | PP, PVC, PS, PET, |
| Dia. Of Platic Cup | 45-120mm |
| Speed | 300-400pcs/min |
| Power | 380V, 50Hz |
| Air Pressure | 0.6Mpa |
| Weight | 900Kg |
| Overall Size | 5200×1100×1300mm3 |
Our service:
1. warranty: 12months. if the spare part is broken in the warranty period, we will send a free replacement part as free.
2. Installation and training: we can send engineer to install and run the machine, but all the charges should be paid by buyer, as visa, two-way tickets, meals and accommodation, etc.
3. Quotation: valid for 30days.
