• Model：We67K-100t3200
• Controller：Da58t
• Transport Package：Steel Fixed
• Specification：WE67K-100T3200 DA52S
• Trademark：ZDMT
• Origin：China

Basic Info.

Model We67K-100t3200 Controller Da58t Transport Package Steel Fixed Specification WE67K-100T3200 DA52S Trademark ZDMT Origin China

Product Description

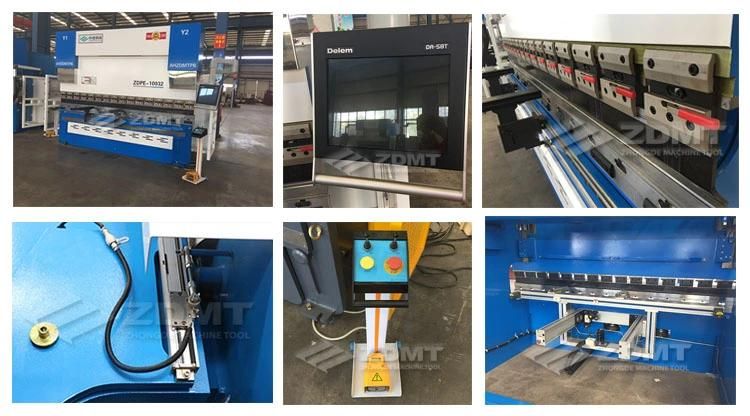

DA58T Synchronized CNC Press Brake ZDPE-10032(WE67K-100/3200)

China Well-Known Brand

ZDMT Synchronized CNC Press Brake

Model no. ZDPE-10032 with DA58T DELEM cnc system (WE67K-100/3200)

CNC system: DA58-T


Basic features

15" TFT color LCD display, 1024X768 pixels

2D graphical touch screen programming

Bend sequence calculation

Servo and frequency inverter control

Advanced Y-axis control algorithms for closed-loop as well as open-loop valves

Storage capacity 1GB

USB flash memory drive(data backup via USB)

Integrated valve amplifier

Power-down memorization

Max 4+1 axes control (X, Y1, Y2, C or R plus crowning)

Parameter programming in one page

Crowning control (compensation for table deflection)

Tool library 30 punches/60 dies

Inch/mm selection

Built-in PLC

Multi language

Panel based housing

Left cylinder and right cylinder are servo hydraulically synchronized by proportional valve; they can be controlled at random point within a stroke;achieving a repetition accuracy of ±0.01 and parallelism of 0.02.

Rexroth Hydraulics

Parallelism of Y1 and Y2 is ensured by the double -closed loop system.Sealed linear encoders/Heidenhain (German) on both C-frame feed back the ram position of Y1 and Y2 to CNC DA58T, then the CNC will give precise and efficient command to synchronous valves.

Sealed linear encoders/Heidenhain (German) on both C-frame feed back the ram position of Y1 and Y2 to CNC DA52, then the CNC will give precise and efficient command to synchronous valves.

Whole set of integrated backgauge system from supplier who also supplies the Suzhou Accurpress, ensuring the assembling precision.

Special tools for CNC press brake (other customized tools are available)

Quick releasing clamps for high efficiency

2 Front support arms on work table for easy feeding and its Nylon material ensuring plate protection from scratch

Schneider electrics

Seamless steel pipe of high rigidity for the hydraulic oil circuit

Taiwan Dingzing sealing rings

Footswitch from professional supplier, portable and smart, with emergency stop

Front plate support shaft of Nylon material for avoiding scratch to plate bended

Oil tank with convex polygon shape

One emergency stop button placed on control panel, one on foot switch and one on electric cabinet for safety

Side and rear fence guard keep operator in safety

Optional parts : Laser curtain of FIESSLER brand/ Laser curtain of LNTECH brand for personal saftey, especially to protect the fingers.


Factories and workshops



Certificates


Customers,agents and friends



Professional machine loading in ZDMT factory


Logistics and final applications
