CNC Oscillating Knife Cutter Cutting Machine for Car Mat

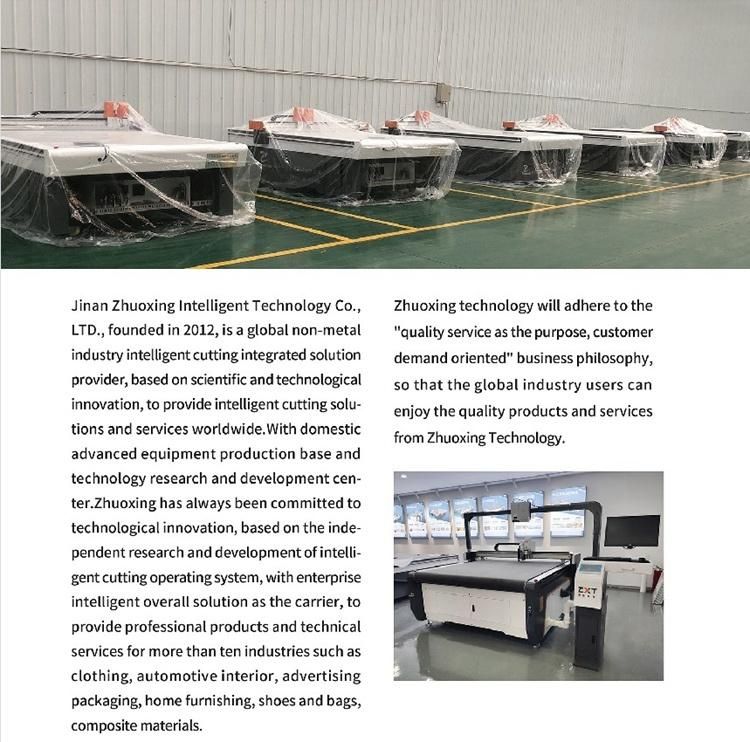

Jinan Zhuoxing Intelligent Technology Co., Ltd.
  • After-sales Service：Video Call Training
  • Waterproof Rating：IPX-3
  • Warranty：3-year
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Control：Automatic

Base Info

  • Model NO.：ZX-1625V
  • Application：Paper, Plastic, Leather, Fabric
  • Power Source：Electric
  • Layout：Horizontal
  • Item：CNC Oscillating Knife Cutter Cutting Machine
  • Working Area：1600*2500mm
  • Rated Power：11kw
  • Max. Cutting Speed：1200mm,S
  • Cutting Thickness：0.1-20mm
  • Cutting Accuracy：0.1mm
  • Materials Fixed Model：Vacuum Adsorption
  • Format Supported：Dxf, Plt, etc
  • Weight：1000kg
  • Transport Package：Export Wooden Case
  • Specification：3300x2250x1250mm
  • Trademark：ZXT
  • Origin：Jinan, Shandong, China
  • HS Code：8479899990
  • Production Capacity：100 Sets,Month

Description

cardboard, corrugated plastic sheet, kraft paper, white paperboard,  other paper boards





CNC Oscillating Knife Cutter Cutting Machine for Car Mat

CNC Oscillating Knife Cutter Cutting Machine for Car Mat





CNC Oscillating Knife Cutter Cutting Machine for Car MatCNC Oscillating Knife Cutter Cutting Machine for Car Mat

CNC Oscillating Knife Cutter Cutting Machine for Car Mat



CNC Oscillating Knife Cutter Cutting Machine for Car Mat

CNC Oscillating Knife Cutter Cutting Machine for Car Mat

CNC Oscillating Knife Cutter Cutting Machine for Car Mat



CNC Oscillating Knife Cutter Cutting Machine for Car Mat



CNC Oscillating Knife Cutter Cutting Machine for Car Mat

Q: 1. How can I choose a suitable Knife cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to be cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4) Except for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?

Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will give our professional suggestions and discuss details with you for the machine which matches all the requests with the best cost performance.

Q: 3. What should I do if the machine has any problem in the future?
A: We supply online/phone technical support and door-to-door service. Anything confusing or not goes well, pls contact us the first time.

Q: 4. What's the warranty policy?
A: Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problems during this period.
Problems caused by wrong operate will also be well-solved, but not for free.
We also supply lifelong after-sales service. No matter when you can guarantee our best service for your machine.

Q: 5. If I don't know this machine before, how can I operate it?
A: We supply face-to-face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperienced person can learn it within one day.
