Handheld Rail Cutting Machine Advance Rail Metal Cutter Rail Moving Block Cutting
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Waterproof Rating：Rail Cutting Machine
- Warranty：Rail Cutting Machine
- Certification：CE
- Condition：New
- Power Source：Internal Combustion Rail Cutting Machine
- Layout：Horizontal
Base Info
- Model NO.：K1270
- Product Name：Internal Combustion Rail Cutting
- Model：K1270 Rail Sawing Machine
- Power：5.8 Kw
- Line Speed：100m,S
- Rated Speed：5100±100r,Min
- Wheel Size：φ350×φ 25.4×3.8,4.2
- Cutting Depth：125mm
- Cutting Time：≤120s (Cutting 60kg,M Rail)
- Machine Quality：28kg
- Transport Package：Carton Box, Plastic Bagsor as Your Payment
- Specification：CE, SGS
- Trademark：China Coal
- Origin：China
- HS Code：8430610000
- Production Capacity：1000 Sets Per Month
Description
Cutting accuracya. Vertical deviation between the cut and the rail ≤0.40mm b. Plane deviation of bidirectional cutting interface ≤0.35mm Cutting depth 125mm Cutting time ≤120s (cutting 60kg/m rail) Machine quality 28kg Dimensions(L* W* H) 850*480*500mm The fuel tank capacity 1.25 L Clamp weight 5Kg

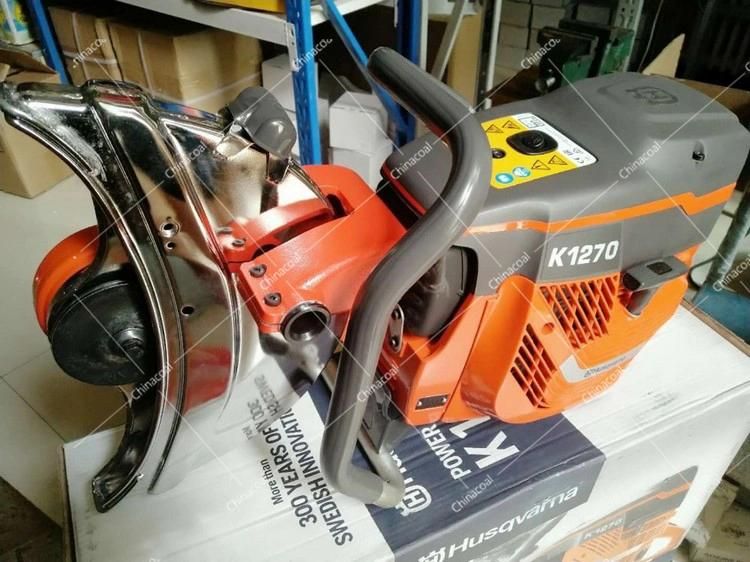

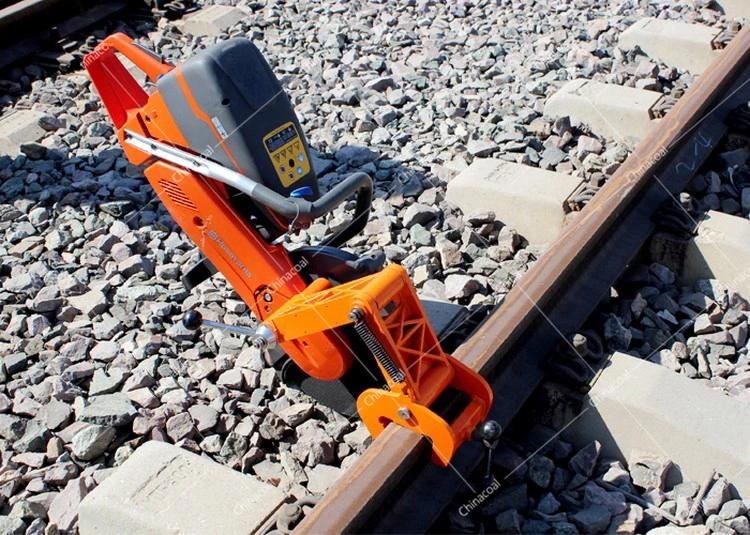

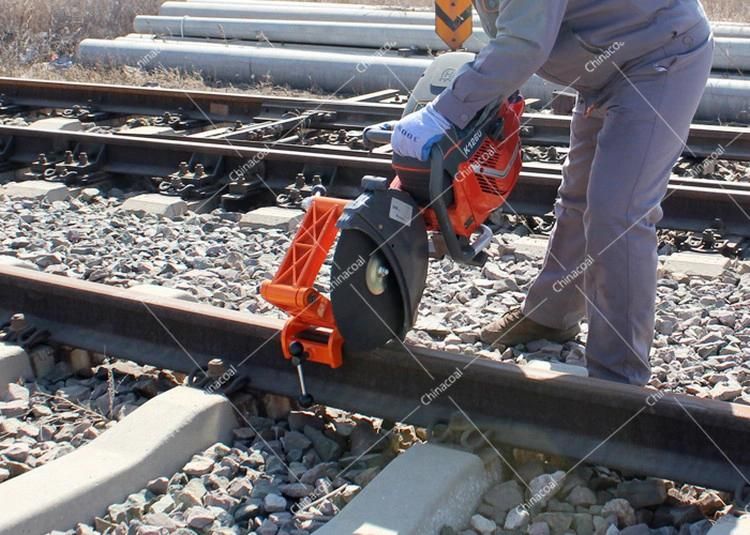

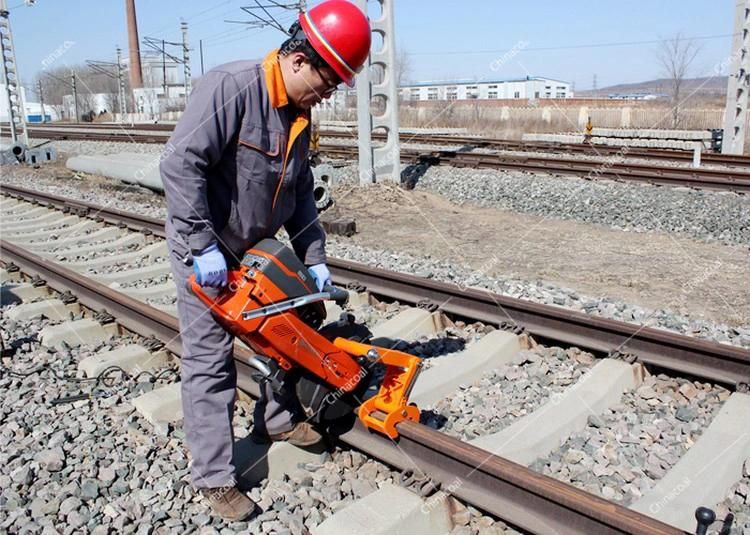

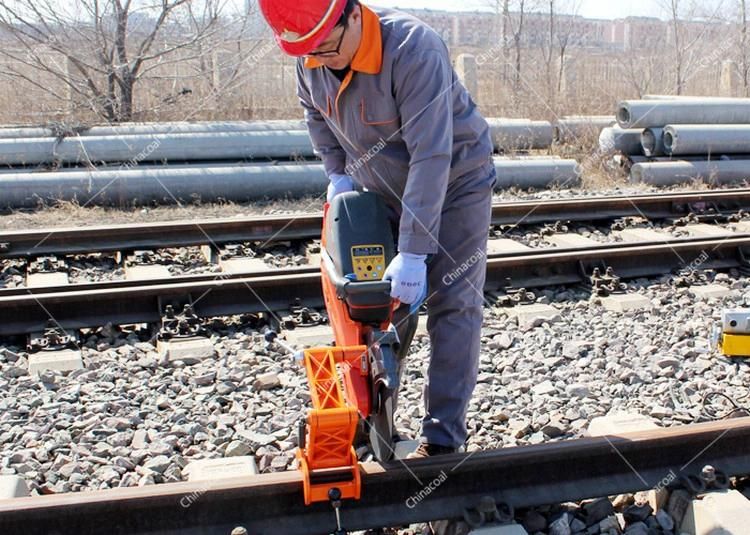

Handheld Rail Cutting Machine Advance Rail Metal Cutter Rail Moving Block Cutting Pictures
