• Model NO.：WC67K
• Type：Press Brake
• Transport Package：Plastic Film, Wooden Package, or as Requirement
• Trademark：Durmark
• Origin：Anhui, China
• Production Capacity：60 Sets One Month

NOItemValueUnit1Nominal force1000KN2Worktable length3200mm3Worktable height850mm4Slider stroke100mm5Max opening height320mm6Slider stroke adjustment75mm7Distance between columns2600mm8Throat depth320mm9  Slider speed

 V-working:9

V-return: 45

 V-unload: 50

mm/s10Main motorY160M-6     n=960r.p.m      N=7.5KW 11Oil pump25MCY14-1B   q=25ml/r      p=31.5Mpa 12System max pressure25Mpa13Dimension3200×1600×2450mm



Main feature

1. The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.

2. Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.

3. Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.

4. Torsion axis synchronization for  slide synchronous mechanism.

5. Adopt a mechanical stopper mechanism, stable and reliable.

6. Back Gauge size and slide stroke controlled  by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.



7. The CNC system adopts frequency conversion control technology, with multi-step
programming function, simple and easy to operate.



8. Inclined wedge deflection on the compensation mechanism, in order to guarantee access to high bending accuracy

9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.

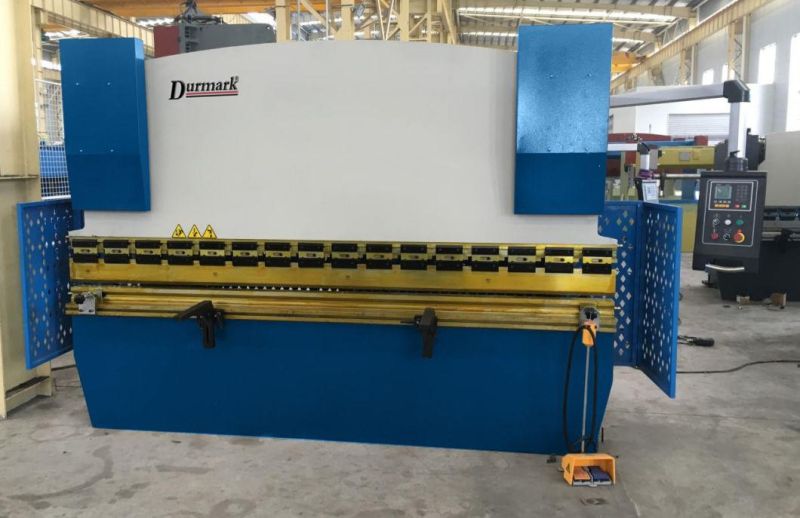

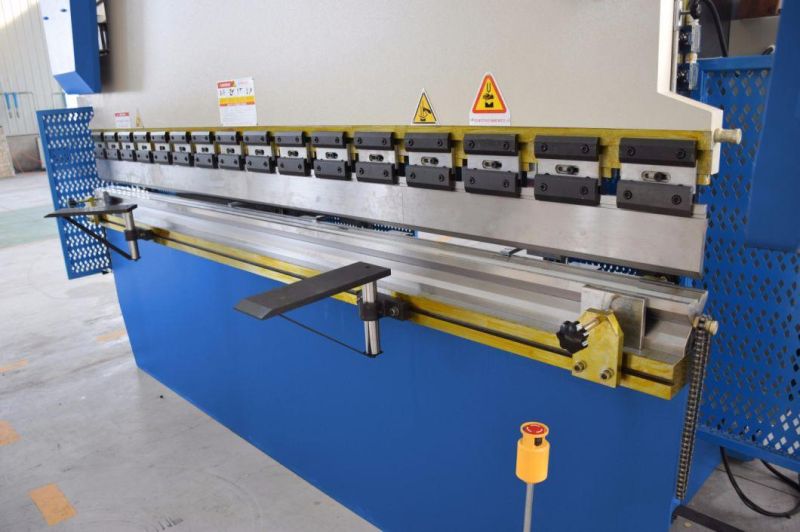

Detailed imgine



VIDEO for reference :

https://lifumachinery.en.made-in-china.com



Our service

Pre-sales Service

1. Inquiry and consulting support

2. Sample testing support

3. Recommend the most suitable machine according to customer's purpose

4. Factory visiting welcomed



After-sales Service

1. Training how to install the machine

2. Training how to use the machine

3. Warranty 2 years

4. Engineers available to service machinery oversea
