• Model NO.：BWZ-F2
• Suitable for：Copper, Aluminum, Alloy, Channelume
• Type：Cnc Bending Machine
• Transport Package：PE Foam and Wooden Box
• Specification：1350*700*1300mm
• Trademark：BaoYuanTong
• Origin：Shandong
• Production Capacity：200sets,Month

Basic Info.

Model NO. BWZ-F2 Suitable for Copper, Aluminum, Alloy, Channelume Type Cnc Bending Machine Transport Package PE Foam and Wooden Box Specification 1350*700*1300mm Trademark BaoYuanTong Origin Shandong Production Capacity 200sets/Month

Product Description

Application field:

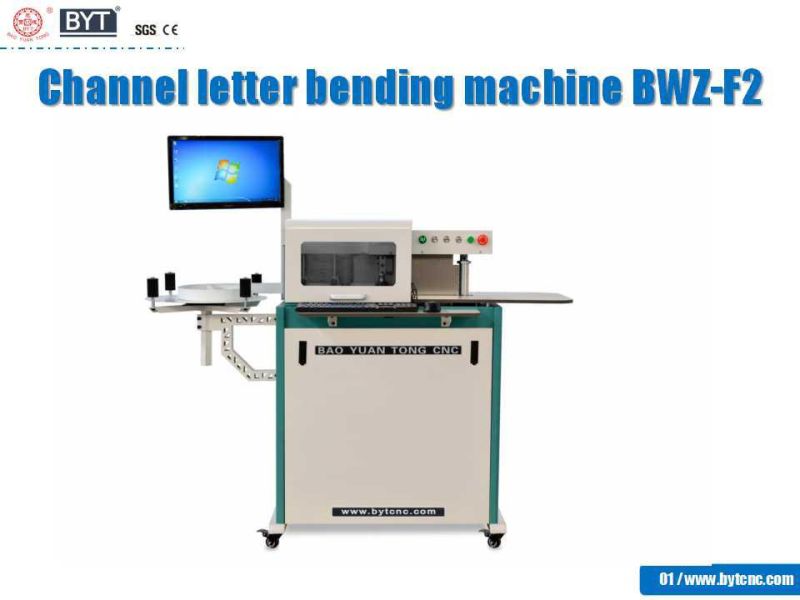

The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process flat aluminum material and does not damage the material. The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software, more convenient and faster.
Features:

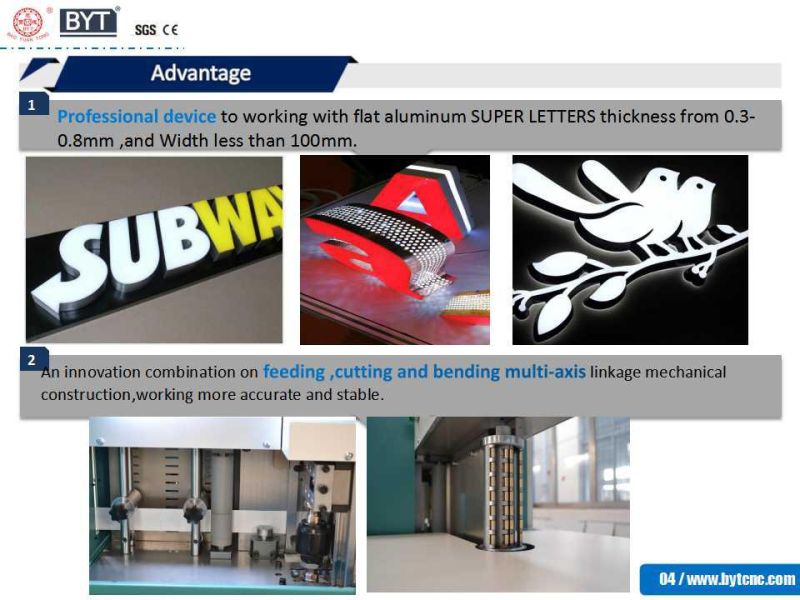

1.Professional device to working with flat aluminum SUPER LETTERS thickness from 0.3-0.8mm ,and Width less than 100mm.
2.An innovation combination on feeding ,cutting and bending multi-axis linkage mechanical construction,working more accurate and stable.

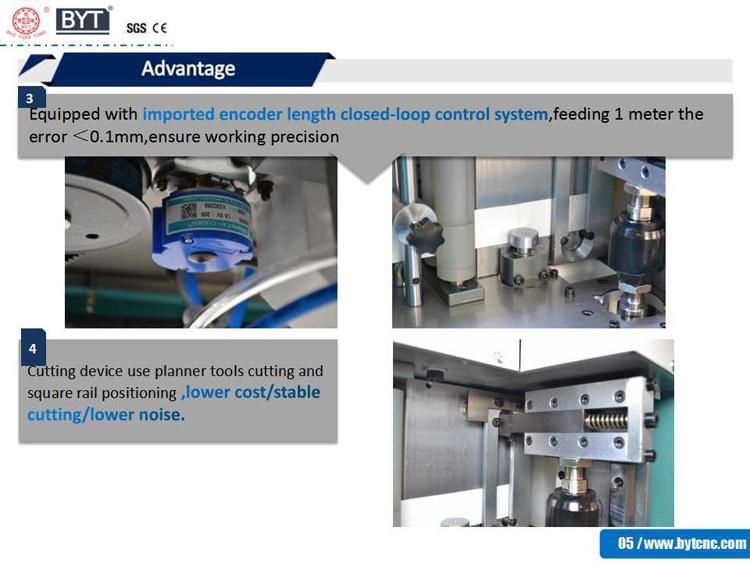

3.Equipped with imported encoder length closed-loop control system,feeding 1 meter the error <0.1mm,ensure working precision
4.Cutting device use planner tools cutting and square rail positioning ,lower cost/stable cutting/lower noise.

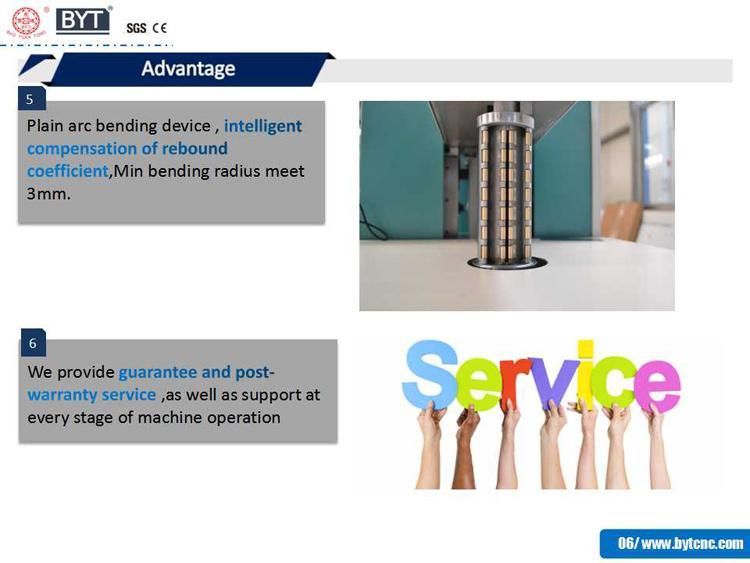

5.Plain arc bending device , intelligent compensation of rebound coefficient,Min bending radius meet 3mm.
6.We provide guarantee and post-warranty service ,as well as support at every stage of machine operation .

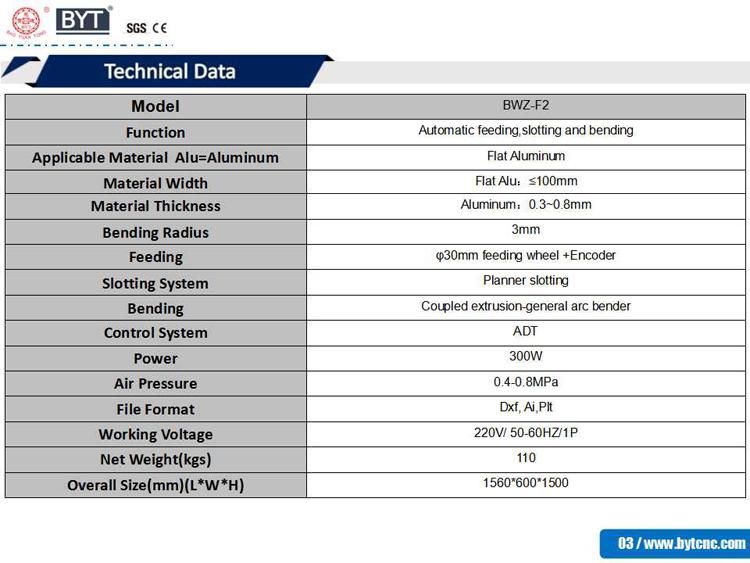

Technical data:


Model	BWZ-F2
Function	Automatic feeding,slotting and bending
Applicable Material Alu=Aluminum	Flat Aluminum
Material Width	Flat Alu:≤100mm
Material Thickness	Aluminum:0.3~0.8mm
Bending Radius	3mm
Feeding	φ30mm feeding wheel +Encoder
Slotting System	Planner slotting
Bending	Coupled extrusion-general arc bender
Control System	ADT
Power	300W
Air Pressure	0.4-0.8MPa
File Format	Dxf, Ai,Plt
Working Voltage	220V/ 50-60HZ/1P
Net Weight(kgs)	110
Overall Size(mm)(L*W*H)	1560*600*1500
Gross Weight (kgs)	150
Package Size(L*W*H))	1000*700*1400
