Aluminum Sign Channel Letter Bending Machine for LED Lights
Shandong Yuantong Century Intelligent Technology Co., Ltd.- Waterproof Rating：IPX-0
- Warranty：2-year
- Condition：New
- Certification：CE, SGS
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Channelume
Base Info
- Model NO.：BWZ-F2
- Type：Cnc Bending Machine
- Transport Package：PE Foam and Wooden Box
- Specification：1350*700*1300mm
- Trademark：BaoYuanTong
- Origin：Shandong
- Production Capacity：200sets,Month
Description
Basic Info.
Model NO. BWZ-F2 Type Cnc Bending Machine Transport Package PE Foam and Wooden Box Specification 1350*700*1300mm Trademark BaoYuanTong Origin Shandong Production Capacity 200sets/MonthProduct Description

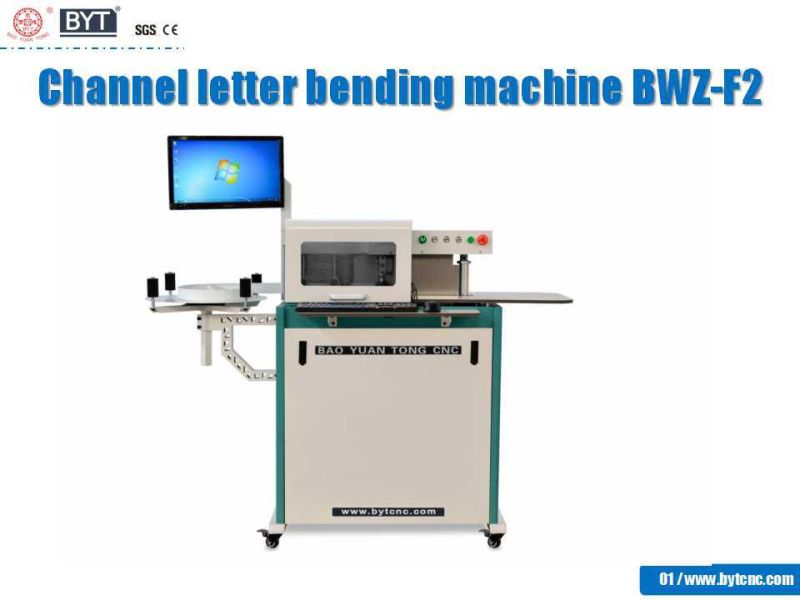

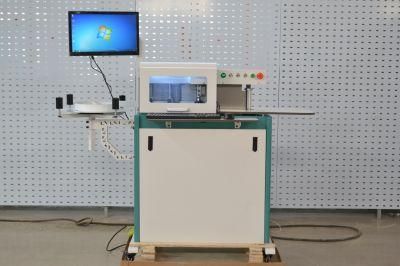

BWZ-F2 Small Channel Letter Bending Machine for 3D Aluminum Signs

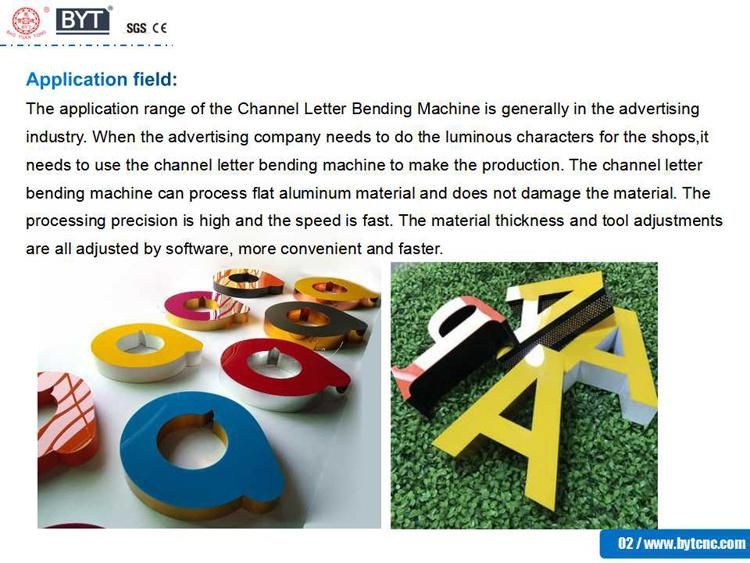

Application field:
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process flat aluminum material and does not damage the material. The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software, more convenient and faster.
Features:
1.Professional device to working with flat aluminum SUPER LETTERS thickness from 0.3-0.8mm ,and Width less than 100mm.
2.An innovation combination on feeding ,cutting and bending multi-axis linkage mechanical construction,working more accurate and stable.

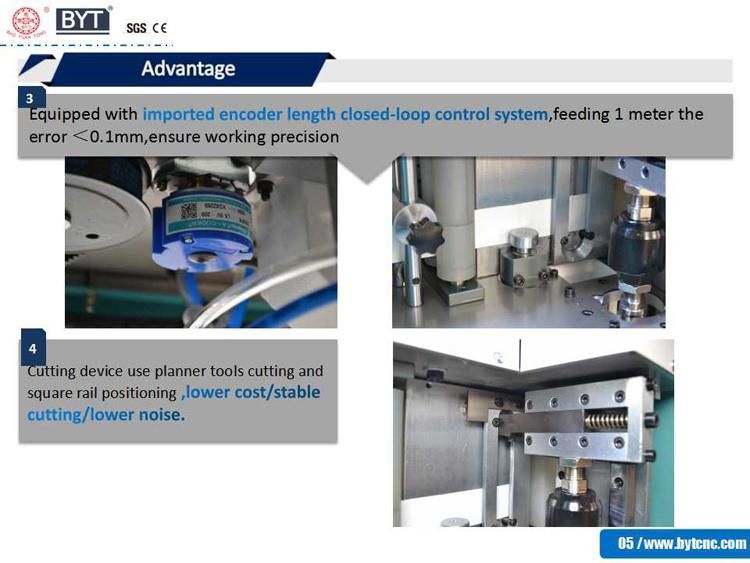

3.Equipped with imported encoder length closed-loop control system,feeding 1 meter the error <0.1mm,ensure working precision
4.Cutting device use planner tools cutting and square rail positioning ,lower cost/stable cutting/lower noise.

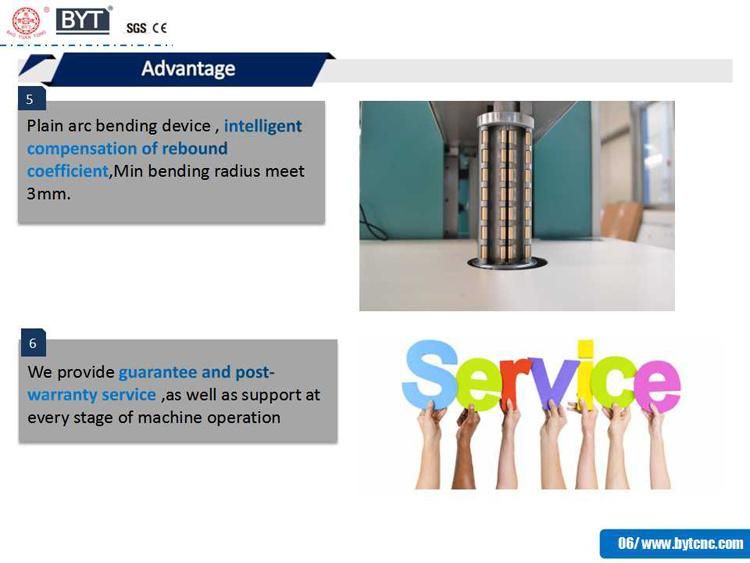

5.Plain arc bending device , intelligent compensation of rebound coefficient,Min bending radius meet 3mm.
6.We provide guarantee and post-warranty service ,as well as support at every stage of machine operation .

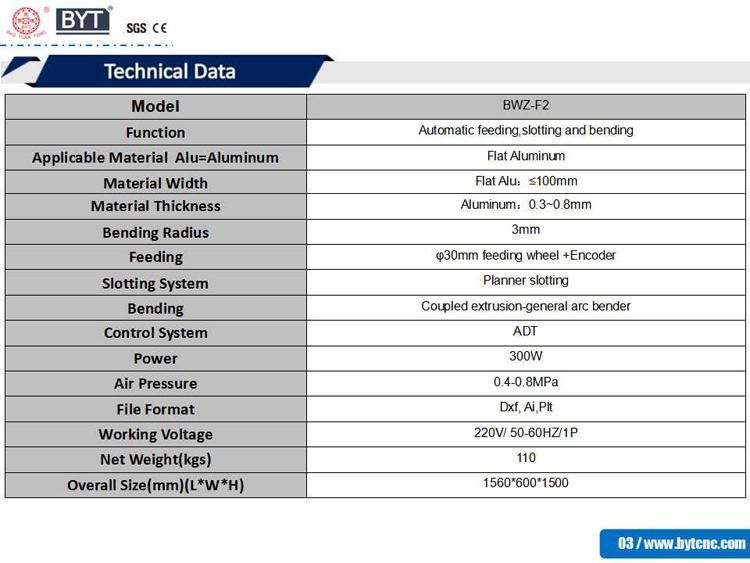

Technical data:
| Model | BWZ-F2 |
| Function | Automatic feeding,slotting and bending |
| Applicable Material Alu=Aluminum | Flat Aluminum |
| Material Width | Flat Alu:≤100mm |
| Material Thickness | Aluminum:0.3~0.8mm |
| Bending Radius | 3mm |
| Feeding | φ30mm feeding wheel +Encoder |
| Slotting System | Planner slotting |
| Bending | Coupled extrusion-general arc bender |
| Control System | ADT |
| Power | 300W |
| Air Pressure | 0.4-0.8MPa |
| File Format | Dxf, Ai,Plt |
| Working Voltage | 220V/ 50-60HZ/1P |
| Net Weight(kgs) | 110 |
| Overall Size(mm)(L*W*H) | 1560*600*1500 |
| Gross Weight (kgs) | 150 |
| Package Size(L*W*H)) | 1000*700*1400 |
