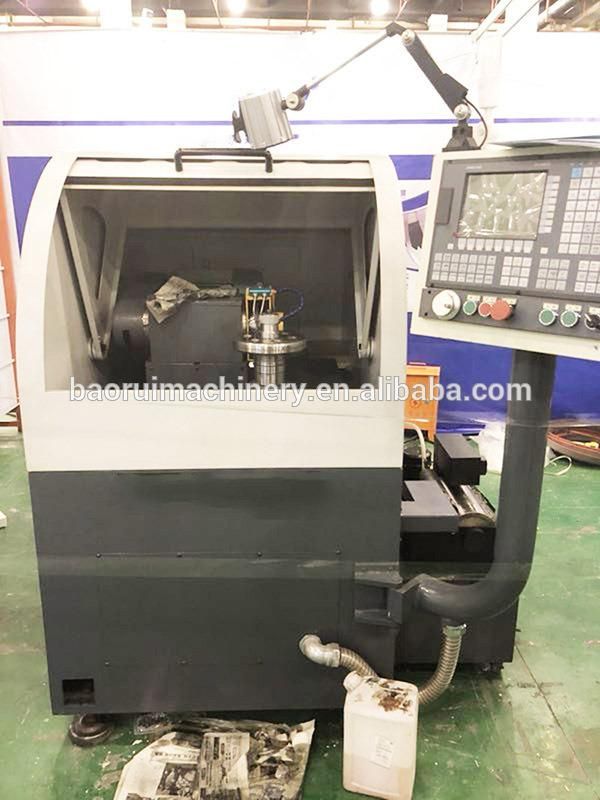

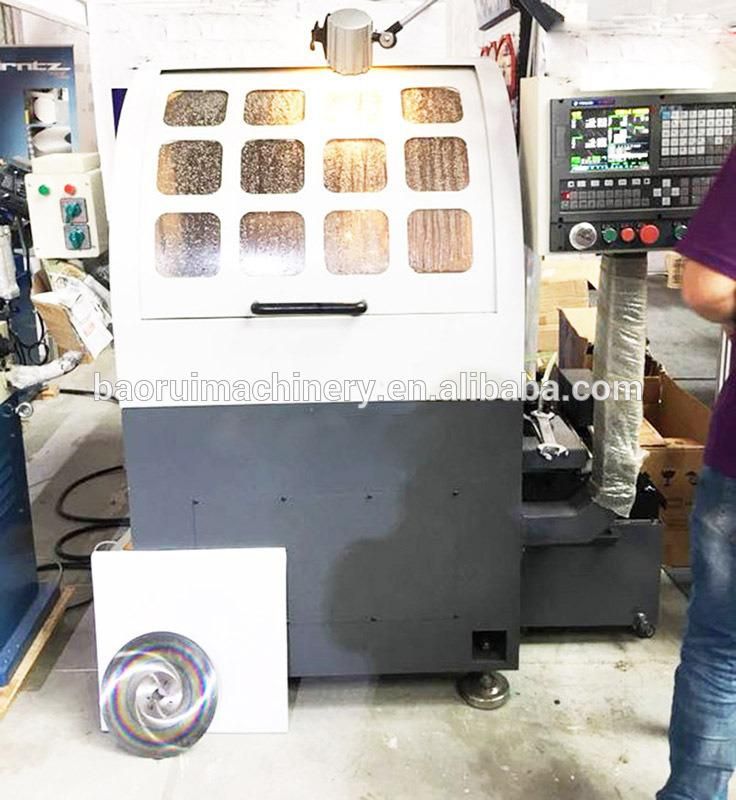

Saw Blade Sharpening Machine with High Speed
Zhangjiagang Baorui Machinery Co., Ltd.- Condition：New
- Speed：1-50 Teeth,Min
- Teeth Distance：Max 24mm
- Grinding Wheel Motor Power：4 Kw
- Teeth Type：Bw, Cw>200
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
Base Info
- Model NO.：sharpening machine
- Degree：-10-28
- Teeth Quantity：10-999 Teeth
- Saw Blade Diameter：80-400mm
- Saw Blade Hole：22-25 , 4-32-40-50
- Max Saw Blade Thickness：6mm
- Transport Package：Packaging Details
- Trademark：Baorui
- Origin：Jiangsu, China (Mainland)
- Production Capacity：64
Description
Item
Name
Mm
1
saw blade diameter
Φ80-400mm
Need special parts if diameter less than 140mm
2
Max Saw blade thickness
6mm
3.
Saw blade hole
Φ22-25 , 4-32-40-50
4
Teeth type
BW, CW>Φ200
5
Degree
-10o-28o
6
Teeth distance
Max 24mm
7
Teeth quantity
10-999 teeth
8
Speed
1-50 teeth/min
9
grinding wheel motor power
4 KW
10
grinding wheel type
Cubic Boron Nitride)
11
Grinding wheel size
Φ200
12
Grinding wheel feeding servo motor power
0.75KW
13
Motor power
6 KW
14
Machine size
1500 X 1430 X 1690mm
15
Machine weight
1380 kgs
