• Model NO.：HHW-2J HHW-3J HHW-4J
• Transport Package：Plywood Case
• Specification：CE, ISO9001: 2000
• Trademark：TLP
• Origin：China
• HS Code：84622990
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. HHW-2J HHW-3J HHW-4J Transport Package Plywood Case Specification CE, ISO9001: 2000 Trademark TLP Origin China HS Code 84622990 Production Capacity 1000PCS/Month

Product Description

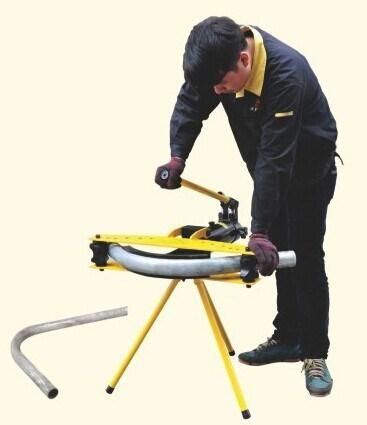

The bender is applicable for bending steel pipes up to 90 degree.
It features simple operation, long service life and smooth round bends.

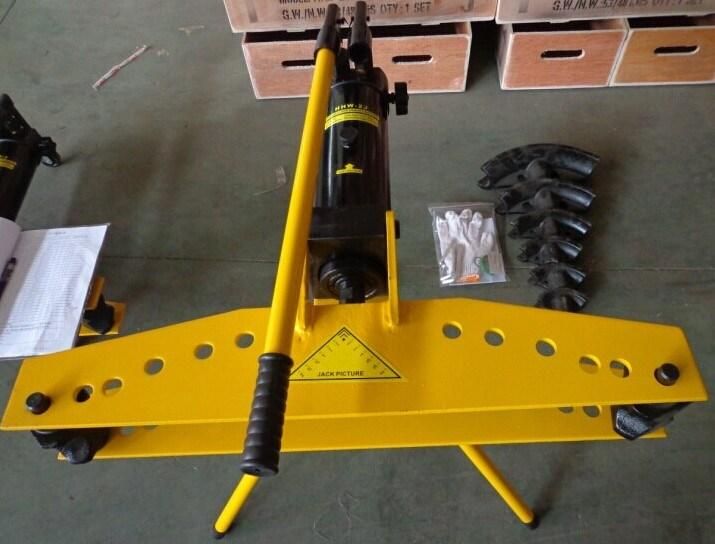

Hydraulic Pipe Bender

Model: HHW-2J
Max. Pressure: 16T
Max. Stroke: 250mm
Crimp range: Φ 21.3-Φ 60mm
Bending dies supplied(in): 1/2" 3/4" 1" 11/4" 11/2" 2"
Wall thickness of pipe: 2.75mm-4.5mm
G. W.: 53kg
Volume(cm): 73*32*20

Model: HHW-3J
Max pressure: 20T
Max. Stroke: 320mm
Crimp range: Φ 21.3-Φ 88.5mm
Bending dies supplied(in): 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3"
Wall thickness of pipe: 2.75mm-5mm
G. W.: 117kg
Volume(cm): 93*40*21

Model: HHW-4J
Max. Pressure: 23T
Max. Stroke: 370mm
Crimp range: Φ 21.3mm-Φ 108mm
Bending dies supplied(in): 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3" 4"
Wall thickness of pipe(in): 2.75mm-6mm
G. W.: 165kg
Volume(cm): 118*46*23
