Cutting & Fold-bend Machine

High Quality Automatic Straighten and Cutting 2D CNC Wire Bedning Machine

Nanjing BLMA Machinery Co., Ltd.
  • Waterproof Rating:IPX-8
  • Warranty:1-year
  • Condition:New
  • Certification:ISO 9001:2000, CE
  • Automation:Automatic
  • Suitable for:Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.:BLMA-10A
  • Type:Cnc Bending Machine
  • Product Name:Blma Manufacturer Automatic CNC Steel Rebar Stirr
  • Max Bending Angle:190
  • The Length of Accuracy:1mm
  • PLC Control:Japan Mitsubishi
  • Hydraulic System:Japan Yuken
  • Seal Ring:Japan Nok
  • Color:Customized
  • Transport Package:Professional Wooden Box
  • Specification:300*85*170CM
  • Trademark:BLMA
  • Origin:Jiangsu, China
  • HS Code:8462219000
  • Production Capacity:60sets,Month

Description

ModelBLMA-10ABLMA-12CBLMA12DBLMA-12SSingle wire working capacityRound steel bar(HPB300)4-10mm4-12mm4-12mm4-12mmRibbed rebar(HRB335)4-8mm4-8mm4-10mm4-12mmDouble wire working capacityRound steel bar(HPB300)4-8mm4-10mm4-10mm4-10mmRibbed rebar(HRB335)4-6mm4-6mm4-8mm4-10mmMax Bending Angle180°180°180°180°Max feeding speed25-35m/min25-35m/min25-35m/min25-35m/minThe length degree of accuracy±1mm±1mm±1mm±1mmThe angle  degree of accuracy±1°±1°±1°±1°Straightening servo motor power5.5KW7.5KW9.5KW15KWBending servo motor power3.7KW3.7KW5.5KW7.5KWCutting motor Power4KW4KW4KW4KWTotal power13.2KW15.2KW19KW26.5KWPower consumption4.5KW/Hour6.0KW/Hour7.0KW/Hour8.5KW/HourMachine Weight1200135016502100Packing Size280X80X160CM300*85*170CM380X110X205CM420X110X215CMWorking Capacity1600pcs/h1600pcs/h1800pcs/h1800pcs/hHigh Quality Automatic Straighten and Cutting 2D CNC Wire Bedning Machine

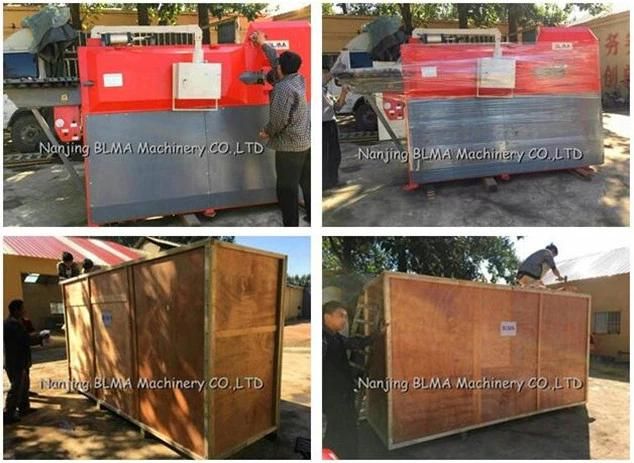

Packing and Delivery:
High Quality Automatic Straighten and Cutting 2D CNC Wire Bedning Machine
 Our machine is packed with standard exported case. Machine delivery 20-30 days upon deposit or advance payment confirmed with us.

FAQ

1.Are you a manufacturer or trading company?

Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machinery.

 2. How to choose the pipe/tube bending machine?

You have to inform us following details:

     - Max. outside diameter

     - Wall thickness range

     - Bending radius (CLR)

     - The pipe material

     - The drawings if possible

 3.Do you provide any training to make sure our user can operate the machine very well?

1)We will provide detailed video and instruction book for this machine;

2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!

 4.What about your machine warranty?

Our machine warranty is one year,and we use all the stable compoenents with long working life!

And we can also send our technician to do the after-sale service in client's factory!

 5.What kind of solution you can offer to make sure your pipe bending machine can do our job?

1)We will help you confirm the model of our machine according to your offered pipe information.

2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.

We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.

3)You can visit us to check how to bend your product before you start the order.During this period,you can also learn   how to use this machine well!



6.What certificate do you have?

We have both ISO and CE certificate.



7.Where is your factory located?

Our factory is located in Zhangjiagang City, Jiangsu Province, about 2 hours to Shanghai by car. You can fly to Shanghai Hongqiao or PVG airport directly.
