• Model NO.：WC67Y-250T,3200
• Voltage：380V 50Hz 3phase
• Control Axis：2
• Power Type：Hydraulic
• Color：Customised
• Main Motor：Siemens
• Hydraulic System：Rexroth or Atos
• Nc Controller：Estun E21
• Weight：17500kg
• Transport Package：Base Framed by Channel Steel and Plastic Bag
• Specification：1 Unit
• Trademark：ZDMT
• Origin：China(Mainland)
• HS Code：84622990
• Production Capacity：100units,Month

Basic Info.

Model NO. WC67Y-250T/3200 Voltage 380V 50Hz 3phase Control Axis 2 Power Type Hydraulic Color Customised Main Motor Siemens Hydraulic System Rexroth or Atos Nc Controller Estun E21 Weight 17500kg Transport Package Base Framed by Channel Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China(Mainland) HS Code 84622990 Production Capacity 100units/Month

Product Description

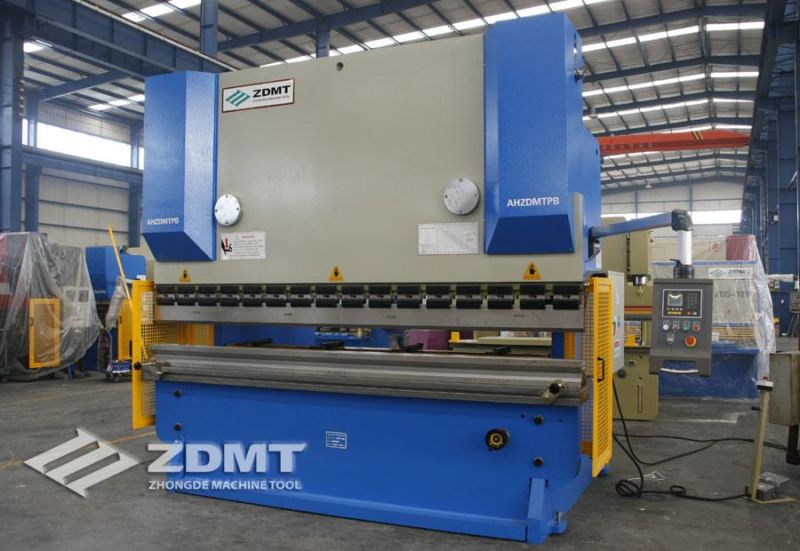

WC67Y-250T/3200 Hydraulic press brake with ESTUN E21 control control back-gauge and stroke position

Hydraulic press brake
· Total steel-welded structure and stress elimination by vibration
· High mechanical strength and strong rigidity
· Ram stroke hydraulic approaching downward, stable and reliable
· Mchanical stop and steel torsion bar to maintain synchronization and high precision
· Electrical adjustment, manual fine adjustment and digtal display for backgauge and raml stroke
· Wedge compensation on top punch clamp slice



Main features of E21:
· Two rows of 6 characters, 7 segments LED display
· Position display of backgauge (X-axis) and dead block (Y-axis), resolution in 0.1mm or 0.01mm
· Transmission screw deviation offset
· Intenal time relay
· Inch/mm selection
. 40 programs and 25 step/program
· Integral factor programmable freely
