• Model NO.：WC67K-160T,3200
• Type：Hydraulic Bending Machine
• Controller System：Estun E21
• Key Selling Points：High Safety Level
• Motor Power (Kw)：11 Kw
• After-Sales Service Provided：Online Support
• Weight (Kg)：10000
• Width of Working Table (mm)：1700 mm
• Nominal Pressure (Kn)：1600 Kn
• Extra Services：Machining
• Slider Stroke (mm)：200 mm
• Machine Type：Synchronized
• Throat Depth (mm)：320 mm
• Length of Working Table (mm)：3200 mm
• Transport Package：Anti-Rust Oil and Plastic Cover
• Specification：CE STANDARD
• Trademark：ZYMT
• Origin：Anhui, China
• HS Code：8462219000
• Production Capacity：20 Set,Sets Per Month

Product Description

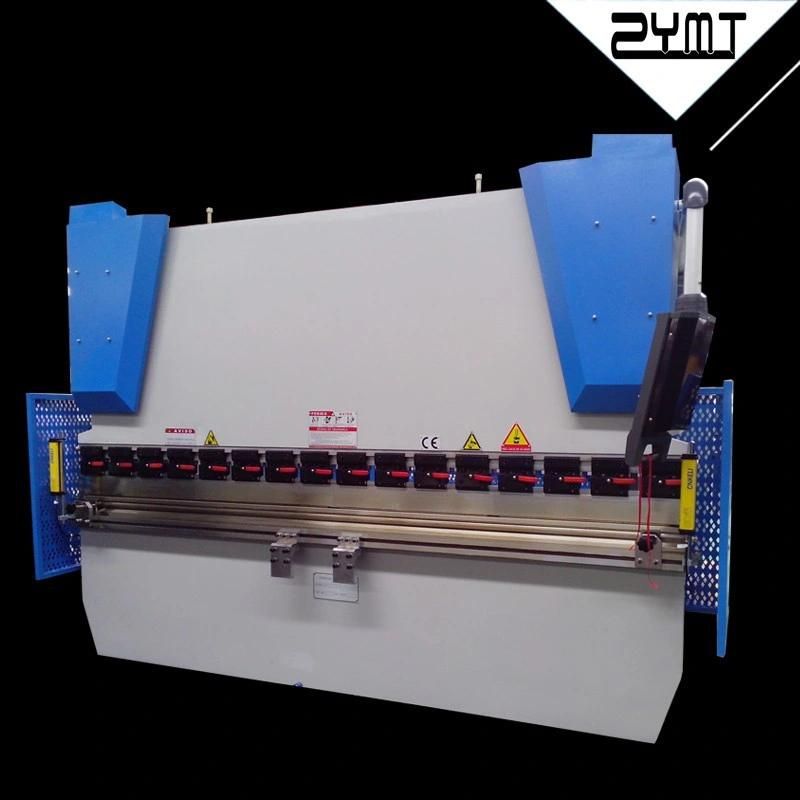

Time Proof NC Hydraulic Press Brake WC67K-160T/3200
Our this press brake machinery equipment can do many kinds of profiles.

Following is an example product our this press brake machine can do. (the part of a electric cabinet)

Main features

The press brake machinery equipment  is metal plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.

Double hydraulic oil cylinders are applied for upper transmission,provided with mechanical limit stopper and synchronize torsion bar,typical of stable and reliable operation, as well as high precision.
Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with NC controller.Detailed Images

Front suport and clamps

Front support can move left and right, up and down easily by manual.

Upper die clamp with compensation device.

Standard NC controller

E21 from Estun China (It's the sole agentl of Holland company in China)

Machine with one set standard toolings with upper punch segmented and multi-V die in one pc.

C-throat gap high strength.

Main motor, pump and valve

Siemens main motor German brand.

Sunny pump from USA.

Rexroth valve German brand.

Back gauge

High precistion stop finger with hand wheel for up and down adjustment.

Equipment ball screw for high position accuracy.

Electrics

Schneider electrics Franch brand.

Inverter Jracorive brand Shanghai, China
