• Model NO.：8 Meter Hydraulic Folding Machinery
• Suitable for：Aluminum, Carbon Steel, Stainless Steel
• Type：Roller-Bending Machine
• Thickness：0.4-1.0mm
• Strength：350MPa
• Transport Package：40gp
• Specification：3T
• Trademark：LIMING MACHINERY
• Origin：Fujian, China(Mainland)
• Production Capacity：600sets,Year

Basic Info.

Model NO. 8 Meter Hydraulic Folding Machinery Suitable for Aluminum, Carbon Steel, Stainless Steel Type Roller-Bending Machine Thickness 0.4-1.0mm Strength 350MPa Transport Package 40gp Specification 3T Trademark LIMING MACHINERY Origin Fujian, China(Mainland) Production Capacity 600sets/Year

Product Description

Specifications

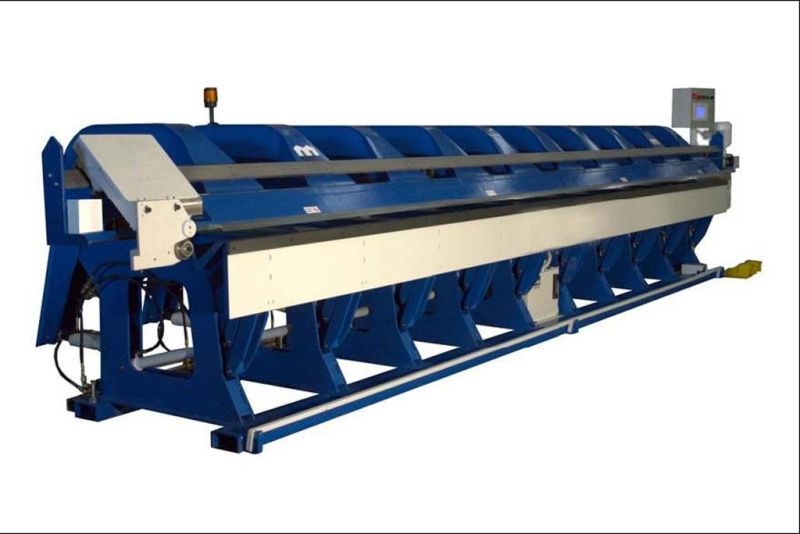

CNC slitting folding machine
1.Throat Depth:1000mm
2.Max.bending angle:125dgree

General Parameter



1	Material	PPGI,Carbon Steel; Aluminum; Stainless Steel
2	Thickness	PPGI&Carbon Steel: 1.2mm    Aluminum:1.2mm    Stainless Steel:1.0mm
3	Feeding width	Max  1000mm
4	Power	Driven by Servo motor, pump motor: 0.82KW
5	Working length	8M
6	Press clamp	9 units
7	Weight:	Approx 3000kg
8	Pressing power	pump motor for hydraulic station7.5KW(Located inside)
9	Bending Range	0-125 Degree
10	Depth of throat	1000 mm (Max. working width of material in clamp)
11	Hinge	9 groups
12	Total power	9.42kw (7.5KW+1.1KW+0.82KW)
13	Outline dimension(Length×Width×Height):	5800×1700×1500 (For reference only)
14	Type of Blade	Slitting Wheel

Machine Components

a.Slitting Device
   1).Diameter:80 (Enough)
   Material:Cr12MoV
   2) Drive system:Motor driving, 1.1KW
   Guiding device:Steel rope circling
   3) Slitting speed:Approx.0.8m/s
   Slitting distance: Through steel rope circulation.

b.Bending & Slitting Device
   1) Max. Bending thickness 1.0mm
   2) Max. Bending length 8000mm
   3) Max. Slit thickness 1.0mm
   4) Min. folding dimension TBC

c.Hydraulic power pack
  1)Capability:Max.16MPA
  2)Capacity of oil tank: 170L
  3)Power source:Hydraulic

d.PLC Control System
   1)System:Siemens PLC Control
   2)Numerical control locating system:Siemens PLC Control
   3)Operating table:Touch Screen
   4)Angle programmer:Encoder test
   5)Slitting control:Manual
   6)Emergency stop: e-stop button+ e-limit+ foot switch (right heavily)

Slitting wheels on folding machine
