High-Speed 2D Wire Bending Machine

Guangdong DuroPower Industries Ltd
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Condition：New
  • Certification：ISO 9001:2000, CE
  • Automation：Automatic
  • Suitable for：Copper, Aluminum, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：WB
  • Type：Cnc Bending Machine
  • Input Voltage：220V,380V,415V,480V
  • Color：Blue and Black
  • Max Bending Speed：100turns,Min
  • Transport Package：Wooden Box
  • Specification：950KG
  • Trademark：DuroWelder
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：1000sets,Month

Description



Model No.



 WB2-6MM

 WB3-10MM

Main Parameters

Input Voltage

220V, 380V, 415V,480V, 50/60HZ, 3P

Wire Diameter Range

2-6MM

3-10MM

Max Wire Feeding Instruction Value

10000MM

10000MM

Mini Wire Feeding  Instruction Value

0.01MM

0.01MM

Max Wire Feeding Speed

70M/Min

50M/Min

Wire Feeding Accuracy

±0.2mm

±0.2mm

Max Bending Speed

 100Turns/Min

 100Turns/Min

Bending Accuracy

±0.5mm

±0.5mm

Machine Dimension

L:280*W:90*H:170cm

L:370*W:120*H:180cm

Machine Weight

950KG

1500KG

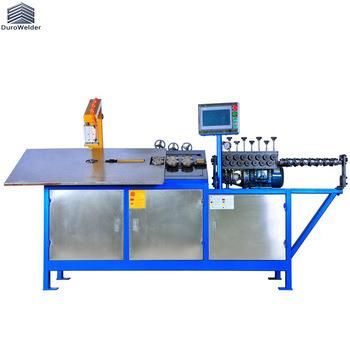

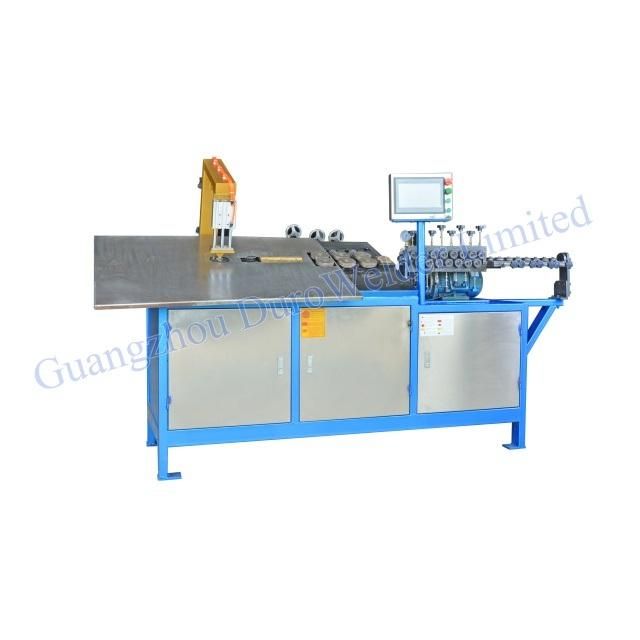

Our Machine

High-Speed 2D Wire Bending Machine
High-Speed 2D Wire Bending Machine
High-Speed 2D Wire Bending Machine
High-Speed 2D Wire Bending Machine

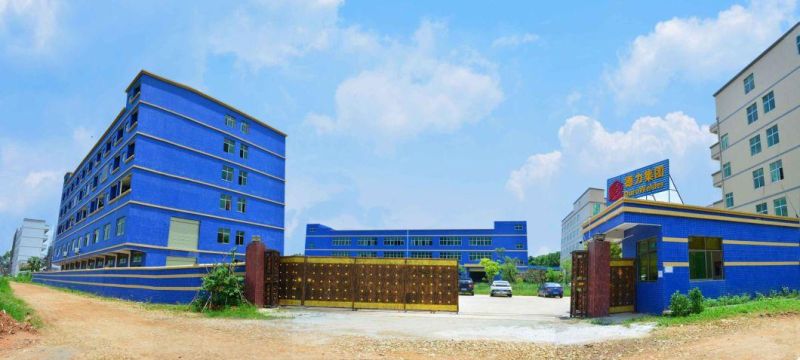

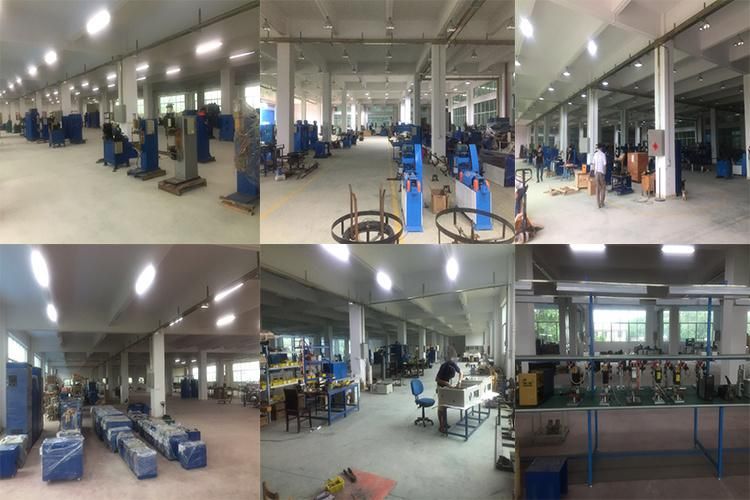

Our Factory

High-Speed 2D Wire Bending Machine
High-Speed 2D Wire Bending Machine
