Auto Cutting to Length Machine Line

ACE Machine Tools Co., Ltd.
  • Automation：Automatic
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Warranty：1 Year
  • Thickness：0.5-3mm
  • Width：1600(Max)

Base Info

  • Model NO.：Cut To Length Machine Line
  • Transport Package：Sea Worthy Packing
  • Specification：CE
  • Trademark：Acemachinetools
  • Origin：China

Description

Basic Info.

Model NO. Cut To Length Machine Line Transport Package Sea Worthy Packing Specification CE Trademark Acemachinetools Origin China

Product Description

Auto Cutting to Length Machine LineACE MACHINE TOOLS

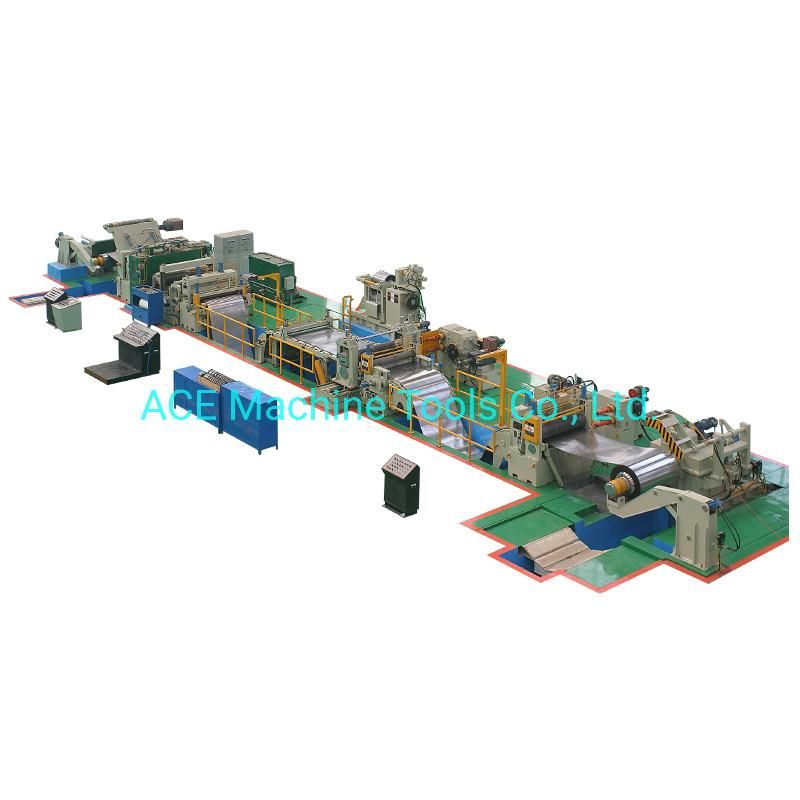

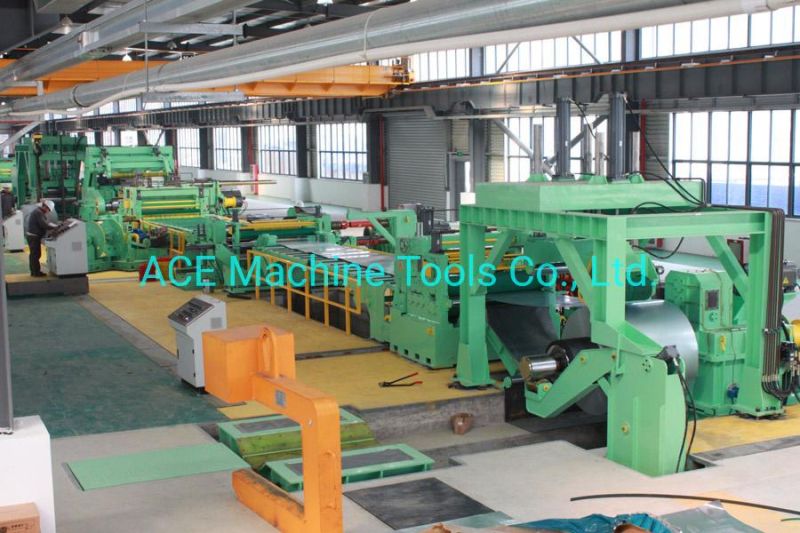

Auto Cutting To Length Machine Line
a.applied to : carbon cold and hot rolled steel
b.material quality : first class steel coils of the international standard
c.Tensile strength:δb≤450Mpa
d.thickness:0.5-3mm
e. width :1600(Max)
f.  coil ID: φ610
g.coil OD:φ2000mm(Max)
h. weight :15T(Max)
i.  diameter of leveling rollers:φ65
j.  distance of leveling rollers:70
k. material of leveling roller:GCr15,hardness:HRC55-60
l.   total weight of machines:around 30T
2.  Finished products parameters:
a.  diagonal tolerance:≤±2mm/2000mm
b.  length tolerance:≤±1mm/2000mm
3.  other parameters :
a.   power :380V/50Hz/3Ph
b.   line speed:0-30m/min
c.    capacity :around 75Kw
d.    Area of the whole production line(about) 25m(L)X6m(W)

Auto Cutting to Length Machine Line
