Cutting & Fold-bend Machine

Cutting to Length Machine Line

ACE Machine Tools Co., Ltd.
  • Condition:New
  • Certification:ISO 9001:2000, CE
  • Automation:Automatic
  • Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Thickness:0.5-2mm
  • Width:1250(Max)

Base Info

  • Model NO.:Cutting To Length Machine Line
  • Ace Machine Tools:Cutting to Length Slitting
  • Transport Package:Sea Worthy Packing
  • Specification:CE
  • Trademark:Acemachinetools
  • Origin:China

Description

Basic Info.

Model NO. Cutting To Length Machine Line Ace Machine Tools Cutting to Length Slitting Transport Package Sea Worthy Packing Specification CE Trademark Acemachinetools Origin China

Product Description

Cutting to Length Machine LineACE MACHINE TOOLS

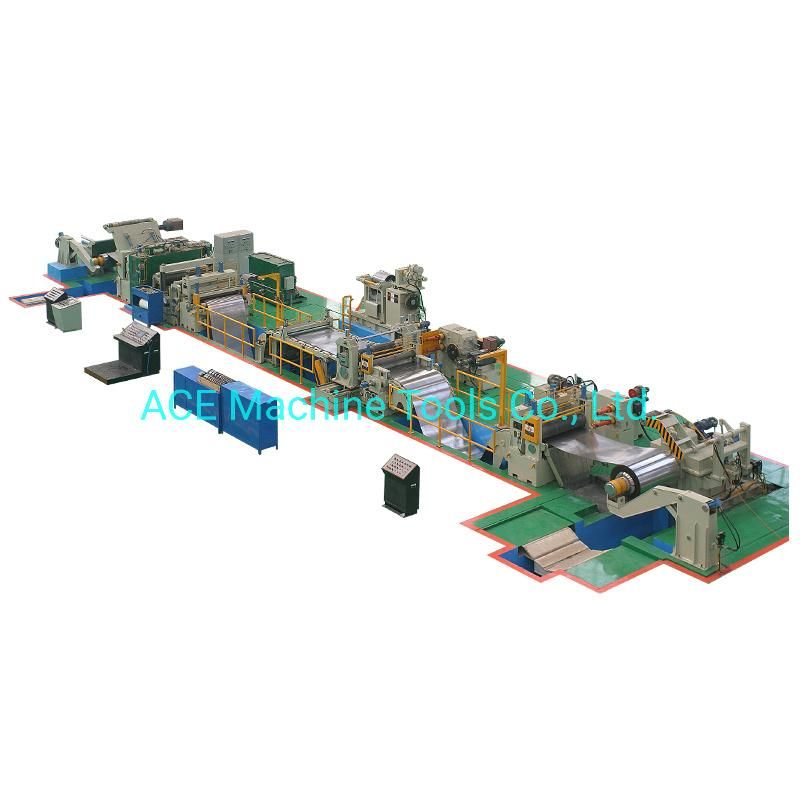

Cutting To Length Machine Line
1. specifications
a. applied to : carbon cold and hot rolled steel
b. material quality : first class steel coils of the international standard
c. Tensile strength:δb≤450Mpa
d. thickness:0.5-2mm
e. width :1250(Max)
f.  coil ID: φ610
g. coil OD:φ2000mm(Max)
h. weight :15T(Max)
i.  diameter of leveling rollers:φ65
j.  distance of leveling rollers:70
k. material of leveling roller:GCr15,hardness:HRC55-60
l.  total weight of machines:around 30T
2. Finished products parameters:
a. diagonal tolerance:≤±2mm/2000mm
b. length tolerance:≤±1mm/2000mm
3.other parameters :
a. power :380V/50Hz/3Ph
b. line speed:0-30m/min
c.  capacity :around 75Kw
d.  Area of the whole production line(about) 25m(L)X6m(W)

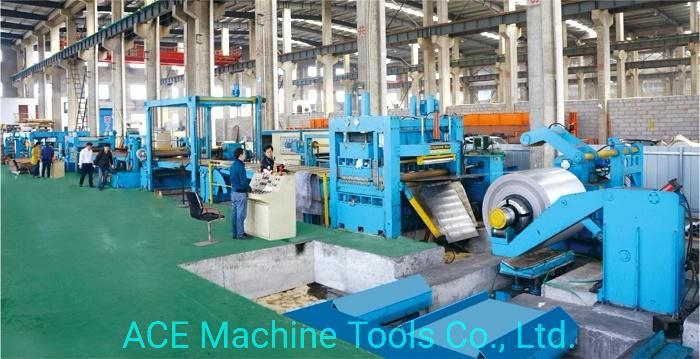

Cutting to Length Machine Line
