• Model NO.：RAS-6×2500
• Origin：Nanjing
• HS Code：8462312000
• Production Capacity：600 Sets,Year

Basic Info.

Model NO. RAS-6×2500 Origin Nanjing HS Code 8462312000 Production Capacity 600 Sets/Year

Product Description

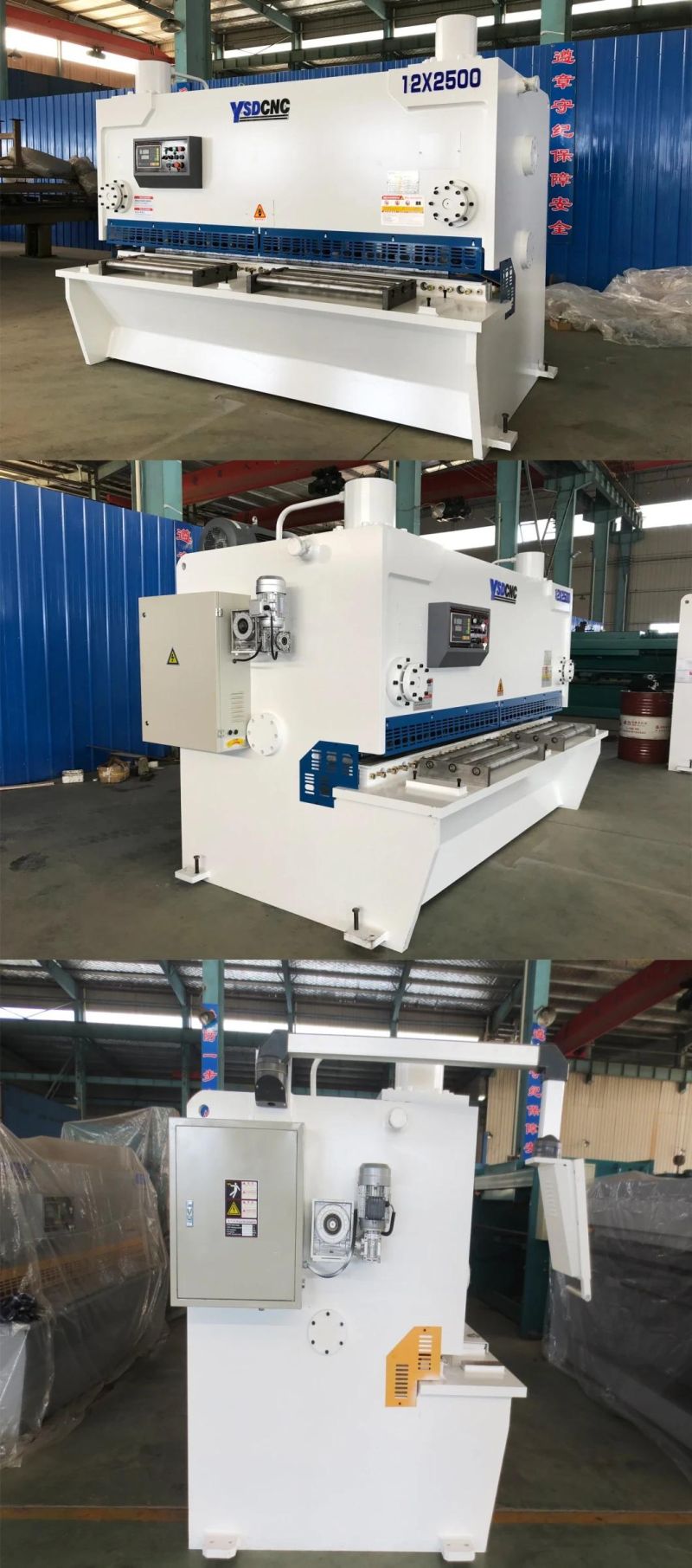

RAS CNC hydraulic guillotine cutting machine with DA360S system


hydraulic  shearing machine


Nanjing Shanduan CNC Machine Tool Co., Ltd is one of the Top 3 press brake and shearing machine in China, which specializing in manufacturing and marketing of press brake,shearing machine,press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine;folding machine,plasma cutting machine, power press,ironworker,hydraulic notching machine, beading machine,flange forming machine,shearing machine & press brake,Blade/Mold, etc.


Company Name (manufacturer):     Nanjing Shanduan CNC Machine Tool Co., Ltd.

Brand:    YSDCNC

Address: MINGJUR INDUSTRIAL CONCENTRATION DISTRICT,SHIQIU TOWN,LISHUI AREA,NANJING,JIANGSU

Tel:+86 025-57262305 Phone:+86 18851629789

Website: www.ysdcnc.com

1. Main Features:Streamlined design originated from EU, main structure consists of rack, cutter holder, oil cylinder, hydraulic controller, backgauge and other components. Finite-element analysis of main parts, Welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of each component;
Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent, and realizing seamless rolling during cutter holder moving.
Leftmost front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;
Simple and effective blade adjusting mechanism rearranges blade clearance by CNC system, improving the cutting quality.
Fine ball screw and rod structure, good-performance frequency converter is applied to positioning X axis to ensure accuracy, unique designed timing transmission mechanism, stable and reliable.
Light and shadow line is conductive to manual scribing for cutting; stable and reliable hydraulic transmission; integrated hydraulic system is able to significantly alleviate problems causing by hydraulic fluid leakage.
Made by high-quality alloy tool steel capable enough to against impact load and high wear resistance when cutting;
With reference to ergonomic design, easy operation with CNC system surface, improving the operation precision and comfortability;
rolling ball workbench to reduce friction and prevent work piece surface from scratching; unique and practical safety guard, line with safety specifications, protect the personal safety; delicate design, petty work piece can be done easily by hand.

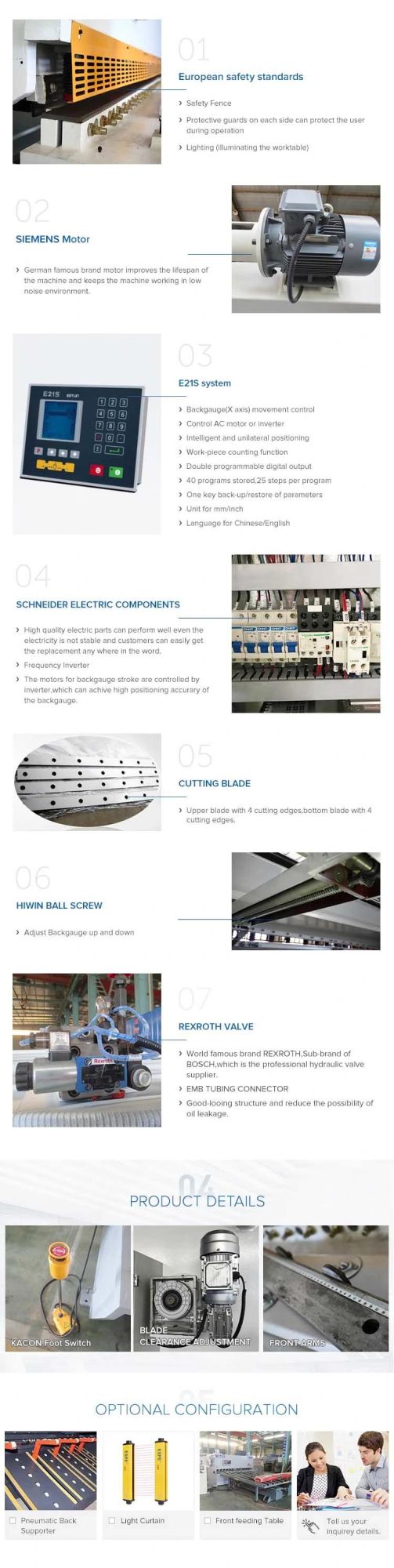

 2. Standard Configuration:Delem DA360s CNC controller
Electric controls backgauge X-axis
DELTA frequency converter and controller
HIWIN ball screw and polished rod, control accuracy of 0.05mm.
Controller cantilever and front supporter
Germany Bosch Rexroth integrated hydraulic valve
Germany EMB oil tube connector and high-pressure hose
Germany Siemens main motor
France Schneider electrics
Hydraulic and electrical overload protection
Light aligning
Blade materials ( 6CrW2Si )
South Korea KACON pedal switch
Cutting angle adjustment
Electrically adjusts the blade clearance
 3. Safety Standards:
Safetry standards (2006/42/EC)
Open electric cabinet and front safeguard door to cut off power
South Korea KACON pedal switch ( safety grade 4 )
Rear metal safeguard rail, CE standard
Safety relay monitors pedal switch, safety protection
 4.Holland DELEM DA360S CNC system:
4.7"monocolor LCD display
High-quality metal film switch
Restoring 100 programs, each program have 25 steps
Backgauge control, cutting angle control, cutting clearance control, cutting stroke control
Each axis can be moved manually
One-key backups and restored parameters
Pressure control
Metric or imperial measurements










Major Import configuration list:

NO	UNIT	NUMBER	MARK
1	CONTROL SYSTEM	1set	E21S (ESTUN)
2	HYDRAULIC SYSTEM	1set	REXROTH VALVE
3	Ball screw	2sets	Taiwan HIWIN
4	Sealing ring	1set	FIETZ, Japan, VALQUA, Japan.
5	Major electrical components	1set	SCHNEIDER
6	Motor	1 set	SIEMENS
7	CUTTING BLADE	1 set	YSDCNC

Random tools/documents:


Serial No.	Name	Quantity	Remark
1	Main unit	1	Including one set of upper and lower die, front plate holder and foot switch
2	Grease gun	1
3	Button key	2
4	Key to door lock	2
5	Product instructions	1
6	certificate of quality	1
7	Packing list	1
8	Foundation bolt	4 sets	Including nuts and washers
9	O-type sealing ring	16

hydraulic  shearing machine
