• Model NO.：RAS-6×2500
• Origin：Nanjing
• HS Code：8462312000
• Production Capacity：600 Sets,Year

Basic Info.

Model NO. RAS-6×2500 Origin Nanjing HS Code 8462312000 Production Capacity 600 Sets/Year

Product Description

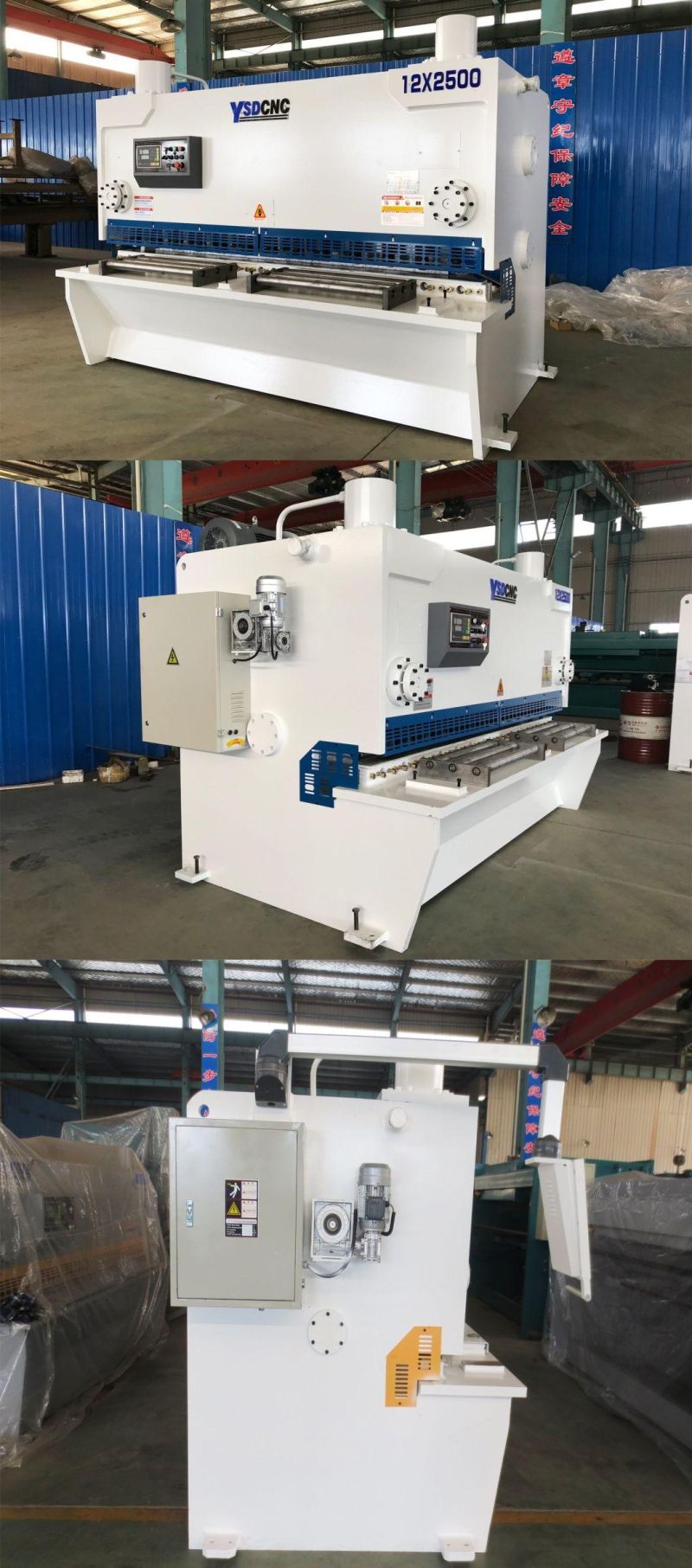

RAS CNC hydraulic guillotine cutting machine with DA310S system


hydraulic  shearing machine


Nanjing Shanduan CNC Machine Tool Co., Ltd is one of the Top 3 press brake and shearing machine in China, which specializing in manufacturing and marketing of press brake,shearing machine,press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine;folding machine,plasma cutting machine, power press,ironworker,hydraulic notching machine, beading machine,flange forming machine,shearing machine & press brake,Blade/Mold, etc.


Company Name (manufacturer):     Nanjing Shanduan CNC Machine Tool Co., Ltd.

Brand:    YSDCNC

Address: MINGJUR INDUSTRIAL CONCENTRATION DISTRICT,SHIQIU TOWN,LISHUI AREA,NANJING,JIANGSU

Tel:+86 025-57262305 Phone:+86 18851629789

Website: www.ysdcnc.com

1. Main Features:Streamlined design originated from EU, main structure consists of rack, cutter holder, oil cylinder, hydraulic controller, backgauge etc. Finite-element analysis of main parts, Welding parts uses tempering, vibration and other processing methods to eliminate internal stress ensuring structural strength and rigidity;
Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent, and realizing seamless rolling during cutter holder moving;
Left-most front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;
Simple and effective blade adjusting mechanism rearranges blade clearance through CNC controller and improves the cutting quality.
Through fine ball screw and polished rod structure, good-performance servo motor control X-axis to ensure the accuracy, and unique designed timing transmission mechanism to ensure operation stable and reliable;
Light and shadow line is conductive to manual scribing for cutting; stable and reliable hydraulic transmission; integrated hydraulic system is able to significantly reduce problems caused by hydraulic fluid leakage;
High-quality alloy tool steel is capable enough to against impact load and high wear resistance when cutting;
Referring to ergonomic design, user-friendly operation interface, improving the operation precision and comfortability; rolling ball workbench to reduce friction and prevent work piece surface from scratching; unique and practical safety guard, line with safety specifications, protect the personal safety; exquisite design, petty work piece can be done easily by hand.
 2. Standard Configuration:Netherlands DELEM DA310S CNC controller
Backgauge X-axis is driven by servo motor
Servo motor drives controller
HIWIN ball screw and linear guide rail, control precision 0.05mm
Controller cantilever and front supporter
Germany Bosch Rexroth integrated hydraulic valve
Germany EMB oil tube connector
Germany Siemens main motor
Germany Schneider electrics
Hydraulic and electrical overload protection
Light aligning
Blade materials ( Cr12MoV )
South Korea KACON foot switch
Blade clearance is adjusted automatically
 3. Safety Standards:
Safety standards(2006/42/EC)Opening electric cabinet and front safeguard door will cut off power
South Korea KACON foot switch (safety grade 4)
Rear metal safeguard, CE standard
Safety relay monitors foot switch, safety protection
 4.Netherlands DELEM DA310S NC Controller:
High-definition LCD display, 128X64 pi
Backgauge control
Cutter clearance control
Cutting stroke control
Synchronously display the actual position and programming
Cutting count
100 programs
Servo control









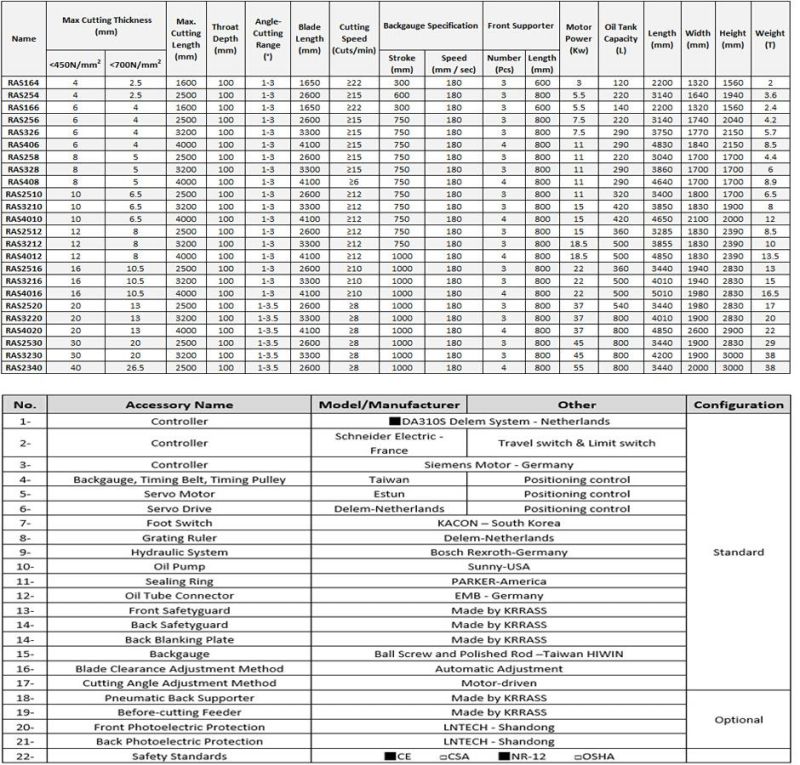

Major Import configuration list:

NO	UNIT	NUMBER	MARK
1	CONTROL SYSTEM	1set	E21S (ESTUN)
2	HYDRAULIC SYSTEM	1set	REXROTH VALVE
3	Ball screw	2sets	Taiwan HIWIN
4	Sealing ring	1set	FIETZ, Japan, VALQUA, Japan.
5	Major electrical components	1set	SCHNEIDER
6	Motor	1 set	SIEMENS
7	CUTTING BLADE	1 set	YSDCNC

Random tools/documents:


Serial No.	Name	Quantity	Remark
1	Main unit	1	Including one set of upper and lower die, front plate holder and foot switch
2	Grease gun	1
3	Button key	2
4	Key to door lock	2
5	Product instructions	1
6	certificate of quality	1
7	Packing list	1
8	Foundation bolt	4 sets	Including nuts and washers
9	O-type sealing ring	16
